ON SITE / Energy facility
A louvred gate at a mountain energy facility
A 7.5 m louvred cantilever gate is listed for this mountain energy facility in Edmonton.
01 / THE SITE
In its surroundings.
The photo sequence shows the horizontal infill and diagonal bracing as the leaf moves between closed and partly open positions.
The same opening in different states
The gate's changing position can be compared against the concrete columns and surrounding woodland.
Screening and structure

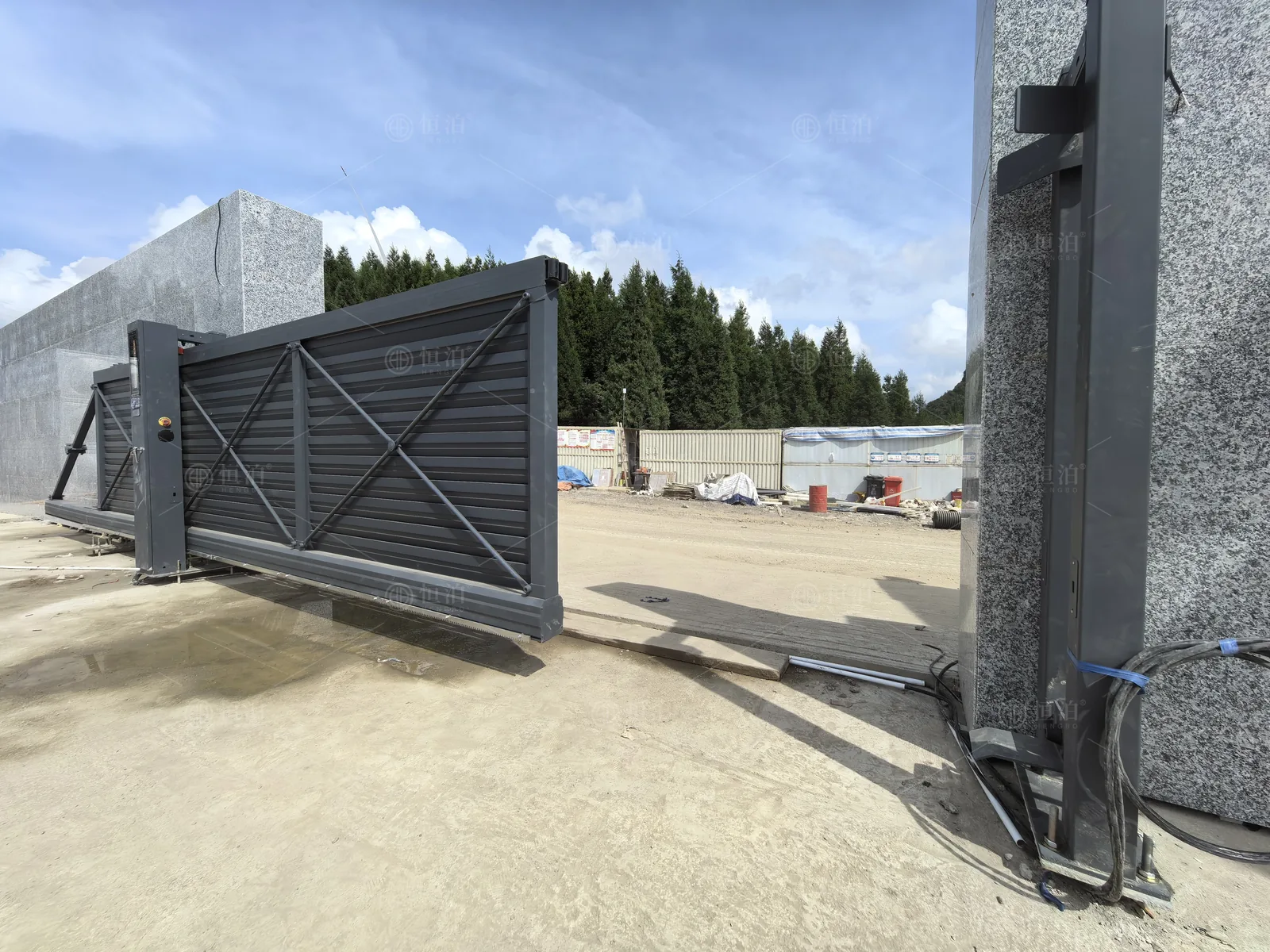

Horizontal louvres form the infill, while the inner side retains visible diagonal reinforcement and the lower support beam.
02 / INSTALLED EQUIPMENT
Behind the entrance.
INSTALLED PRODUCT
Louvred cantilever gate
- Recorded gate length
- 7.5 m
Site dimensions and equipment configurations are confirmed for each entrance.
