ON SITE / Energy facility
A tall screened gate with an inset door
The supplied record identifies a 2.4 m-high solid-panel cantilever gate at this Tucson energy facility.
01 / THE SITE
In its surroundings.
Open and closed views show a pedestrian door set into the panelled leaf and the surrounding concrete perimeter.
An inset pedestrian opening
The smaller door is part of the main panelled leaf, unlike the separate side doors used in some other projects.
Gate movement in context

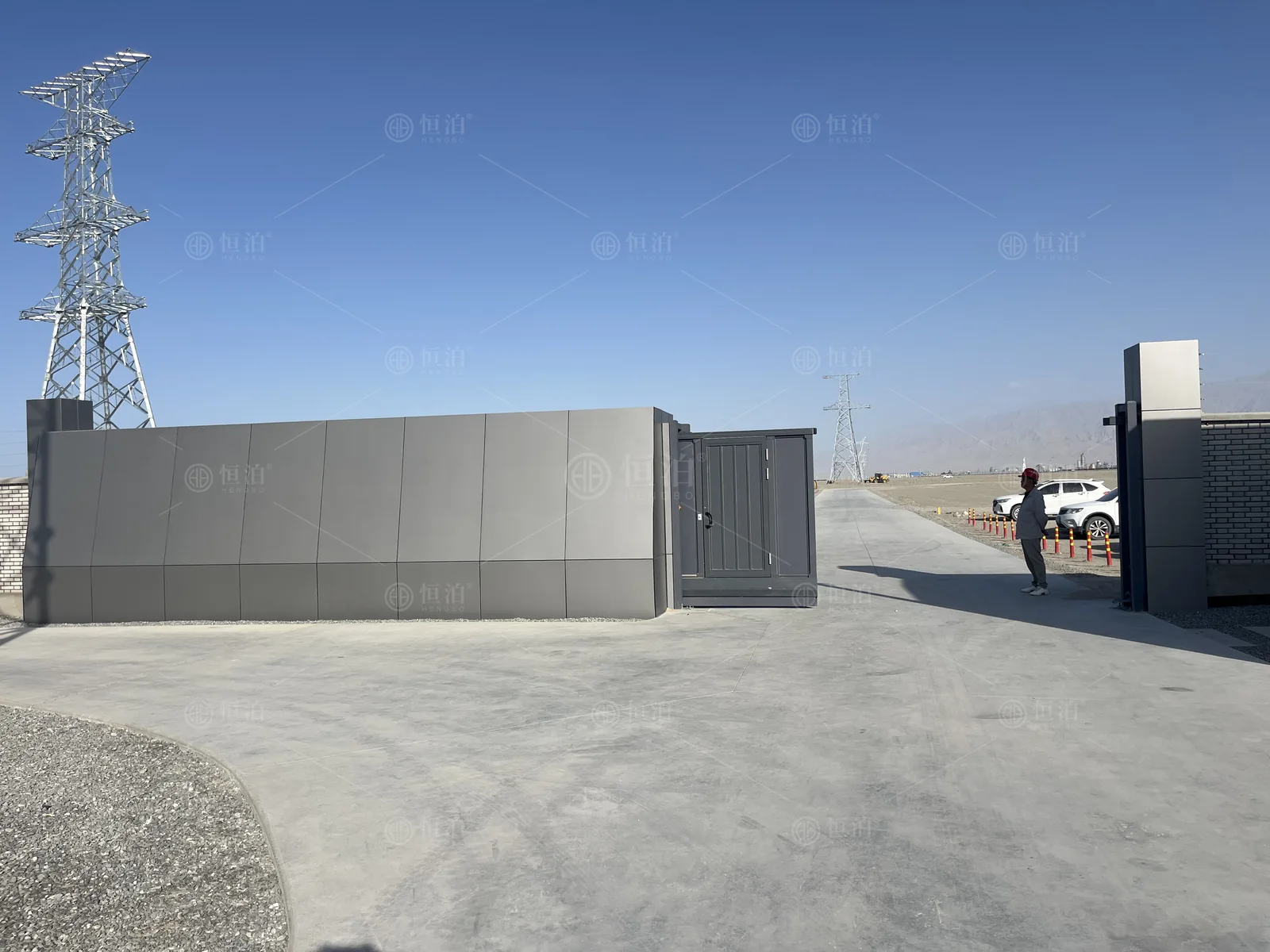

The open-state view shows the leaf at the side of the opening, with the broad concrete approach and electrical infrastructure beyond.
02 / INSTALLED EQUIPMENT
Behind the entrance.
INSTALLED PRODUCT
Solid-panel cantilever gate with inset pedestrian door
- Recorded gate height
- 2.4 m
Site dimensions and equipment configurations are confirmed for each entrance.
