A stainless-steel linear sliding gate with a bright metal frame, ground-running wheels and a red-and-white lower reflector band. Its own profile sizes, rack and guide details define the ZX-01 configuration.
Horizontal louvres with the original frame, supports and drive arrangement.
Shown colour. Custom colours on request.
STRUCTURE & MATERIALS
The main uprights are 100 × 100 × 1.2 mm stainless steel, paired with an 80 × 80 × 1 mm upper beam and a 150 × 160 × 3 mm lower beam. The narrower members are listed individually below.

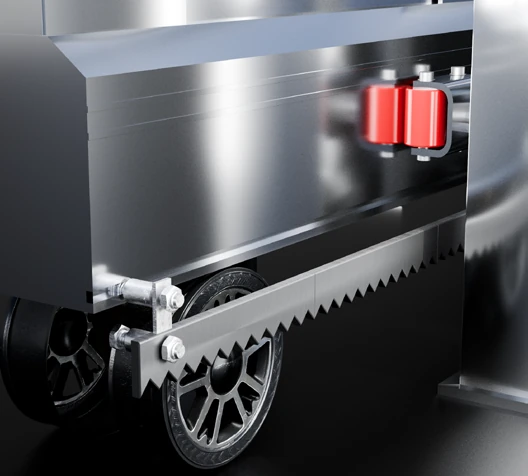

The toothed rack and ground-running wheel are visible in the original ZX-01 detail. Confirm the complete travel and ground arrangement in the project drawing.

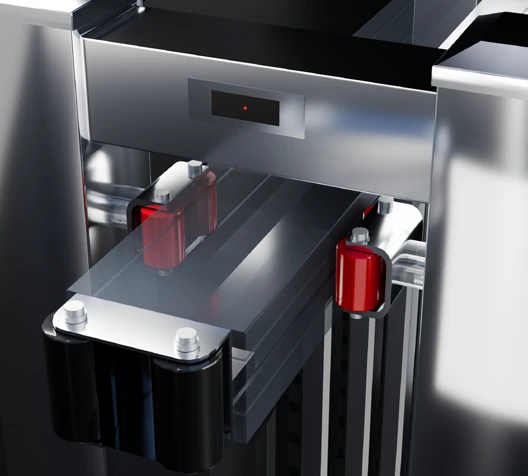

Upper rollers guide the moving leaf through the fixed frame. Their location and access must be included when planning the side run-back area.
TECHNICAL DETAILS
Plan the complete side return, level track, fixed guides and rack alignment.

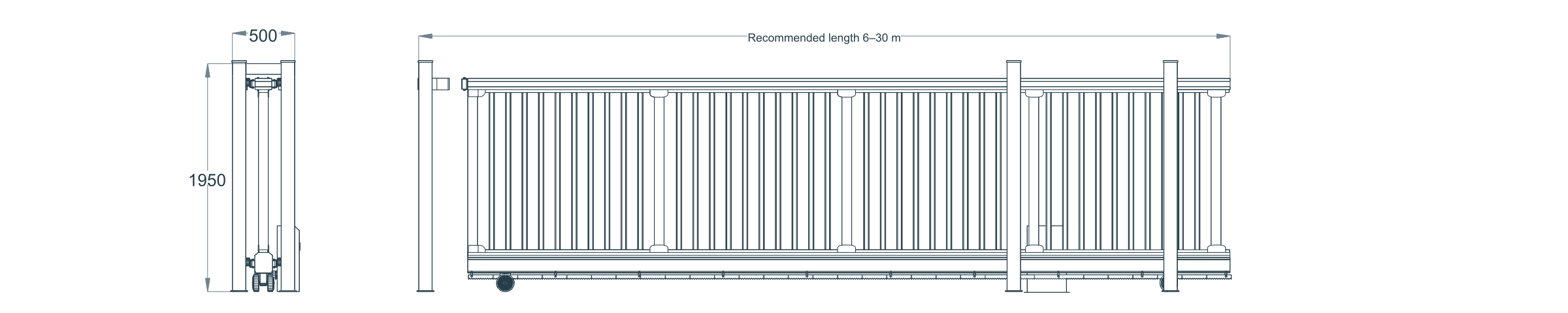

The source CAD shows a fixed frame 1950 mm high and 500 mm wide. Gate height is referenced at 1600 mm. Provide the opening, side space and ground-level information for a project-specific installation drawing.
| Parameter | Specification |
|---|---|
| Reference gate height | 1600 mm |
| Upper beam | 80 × 80 × 1.0 mm, stainless steel |
| Main upright | 100 × 100 × 1.2 mm, stainless steel |
| Intermediate upright | 48 × 36 × 0.57 mm, stainless steel |
| Secondary tube | 60 × 60 × 1.0 mm, stainless steel |
| Lower beam | 150 × 160 × 3.0 mm, stainless steel |
| Drive rack | Stainless steel |
| Reference fixed frame | 1950 mm high × 500 mm wide |
| Length | Custom |

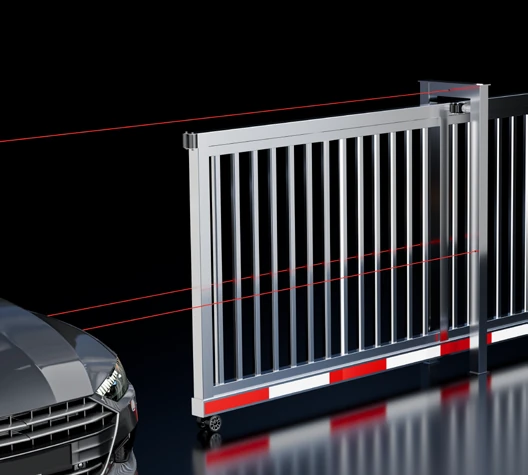

Select the access and protection equipment with your gate. Included devices, interfaces and operating response are confirmed in the quotation.
PRODUCT QUESTIONS
The model page specifies stainless steel for the frame members and rack without naming a grade. State any grade requirement in your enquiry so it can be confirmed before ordering.
ZX-01 is shown with ground-running wheels. The travel surface, track arrangement and drainage should be confirmed in the project drawing from your ground levels and opening dimensions.

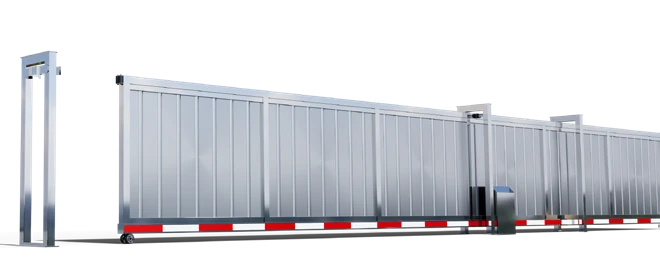

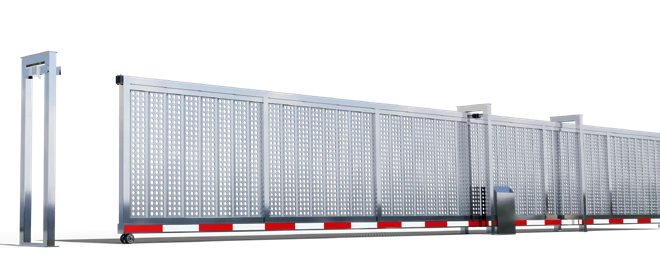

The catalogue shows horizontal louvres, closed panels and round-perforated panels. These retain the ZX-01 linear frame and drive layout.
YOUR PROJECT
Share your clear opening, gate height, ground levels and available space for the ZX-01. Your selected style is included in the enquiry.
