SWING-PANEL PASSAGE
A 1,200 mm swing-gate cabinet with rounded ends and a transparent wing. The compact length is paired with a passage range of 600–1,200 mm shown in the model drawing.
SWING-PANEL PASSAGE
The panels swing beside the cabinets to release the lane. Plan the cabinet bodies, reader position and clear passage together; each model keeps its own sensor and drive specifications.
GATE & CABINET

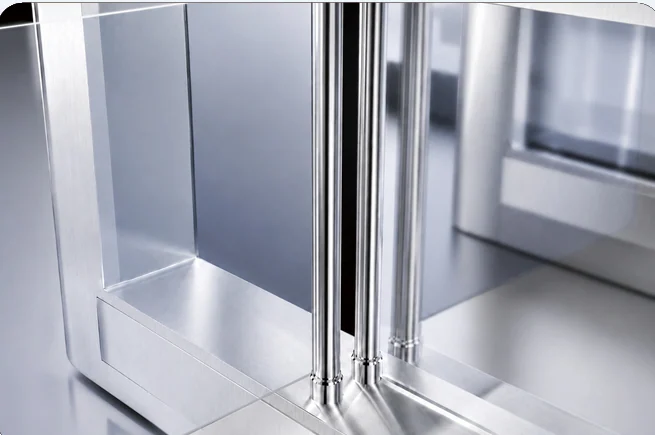

The transparent wing is supported by the vertical mechanism inside the cabinet. The cabinet’s open side keeps the swing-panel connection visible.

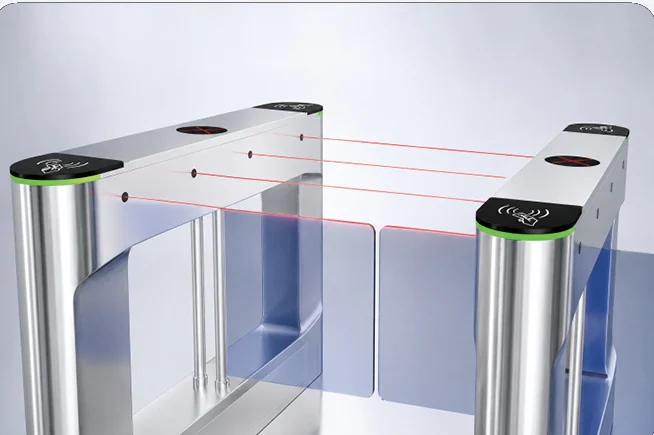

The model table lists 4 pairs. The original diagram shows beams across the passage. Detection and access settings are commissioned for the selected lane arrangement.
ACCESS & INDICATION
Readers shown are configuration references. Confirm the supplied reader, controller and access platform for the project.

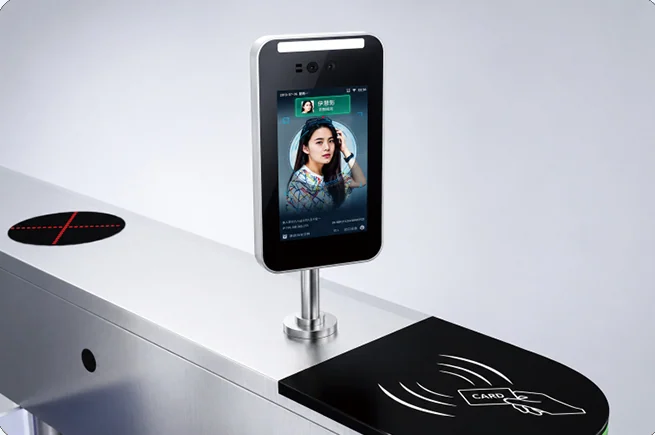

A face terminal is shown mounted above the cabinet. Reader hardware and the access platform are selected to match the project.

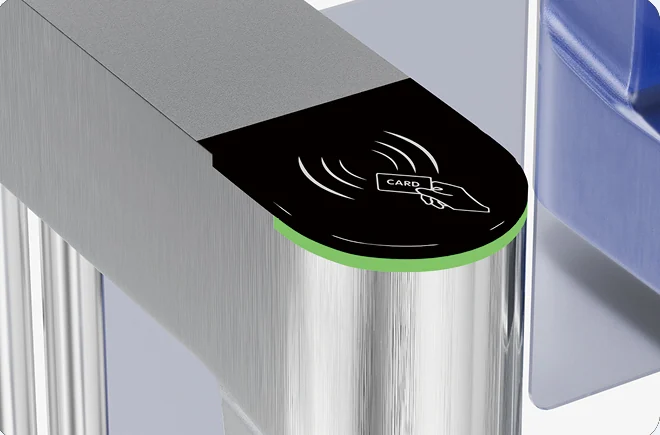

The cabinet incorporates a card-reader position. Card, QR or other credential requirements should be specified with the access-control configuration.

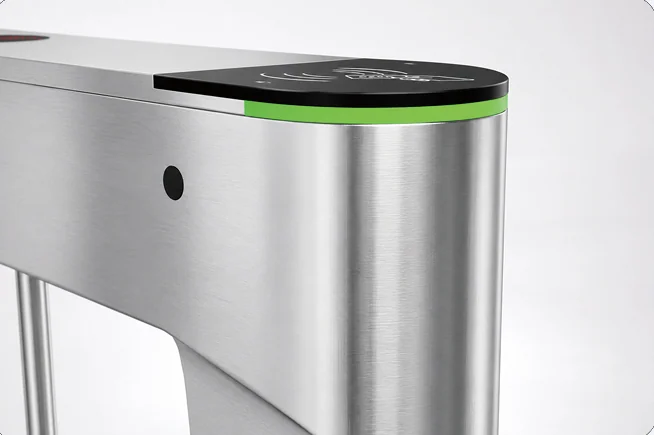

The indicator at the cabinet helps the user see the passage status. The source describes red for stop and green for permitted passage.
DIMENSIONS & INSTALLATION
Cabinet width is additional to the clear lane. Coordinate reader positions, cable entries, panel travel and the required number of passages.
DIMENSIONS

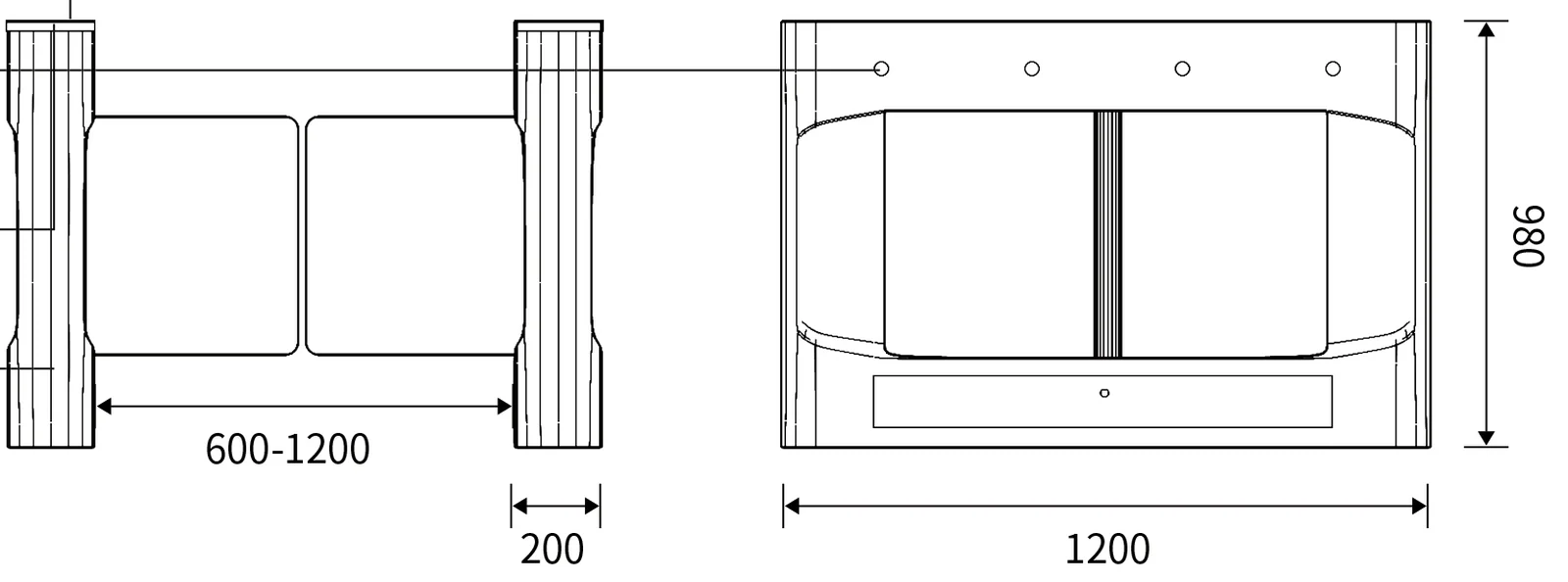

The cabinet dimensions are 1,200 × 200 × 980 mm. The clear passage is 600–1,200 mm. Allow for the cabinet bodies as well as the passage when laying out an entrance.
| Parameter | Specification |
|---|---|
| Cabinet dimensions | 1,200 × 200 × 980 mm |
| Clear passage | 600–1,200 mm |
| Cabinet material | Brushed 304 stainless steel |
| Cabinet wall | 1.0 mm |
| Top cover | 1.2 mm |
| Drive | 24 V DC brushless motor |
| Infrared detection | 4 pairs |
PRODUCT QUESTIONS
ZJ-31 has a 1,200 mm long cabinet, compared with the 1,500 mm ZJ-32 cabinet. The model drawing gives a 600–1,200 mm passage range. Both the cabinet length and the selected clear width should be included in the plan.
No. The images show supported identification arrangements. Specify the required reader and access-control system so the hardware and integration scope can be confirmed.
Choose the passage width and surrounding route to match the site requirements. Accessibility, emergency egress and release behaviour need to be checked as part of the complete entrance design.
Send ZJ-31, the required number of passages, selected clear width, entry and exit directions, reader requirements and a floor plan or site photographs.
YOUR PROJECT
Share the number and width of passages, entry direction and required reader system.
