ENCLOSED ROTOR PASSAGE

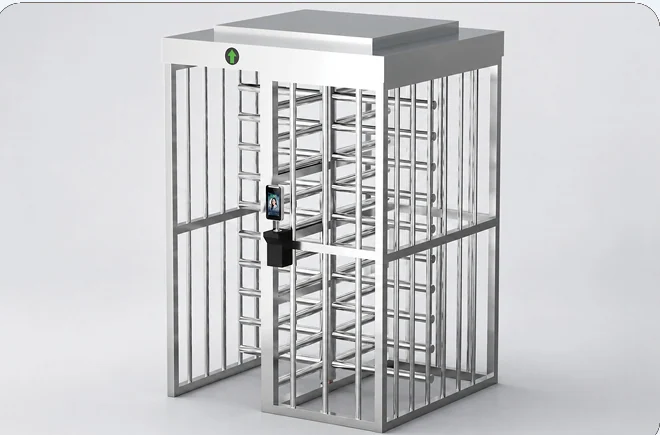

A single rotor passage inside a full-height stainless-steel enclosure. The 1,400 × 1,400 mm assembly concentrates the access point within one controlled passage.
ENCLOSED ROTOR PASSAGE
The rotating arms and fixed enclosure define the controlled passage. Single- and double-passage models use different overall footprints.
FULL-HEIGHT MOVEMENT
The fixed enclosure and rotating arms define a passage around the rotor. This model has one rotor passage.

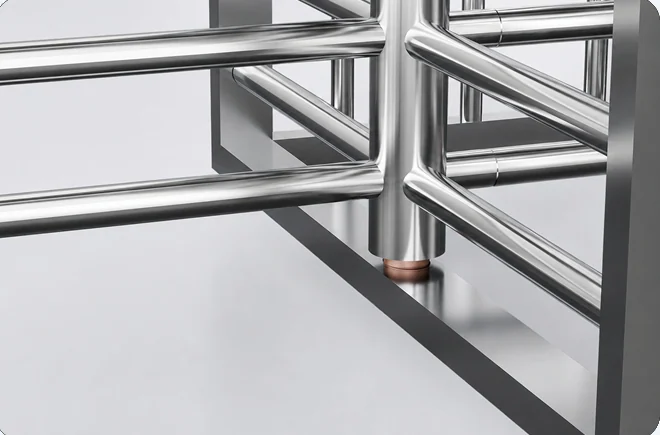

The original close-up identifies the copper-sleeve bearing at the turning axis. It supports the rotor connection shown in the catalogue.

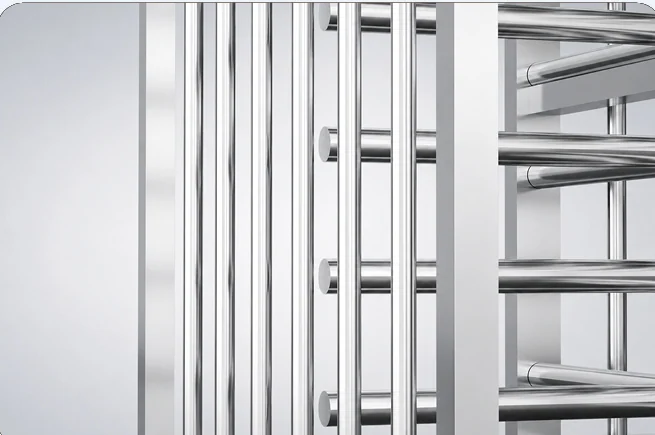

The closely spaced horizontal arms and outer frame form the full-height passage boundary.
READERS & INDICATION

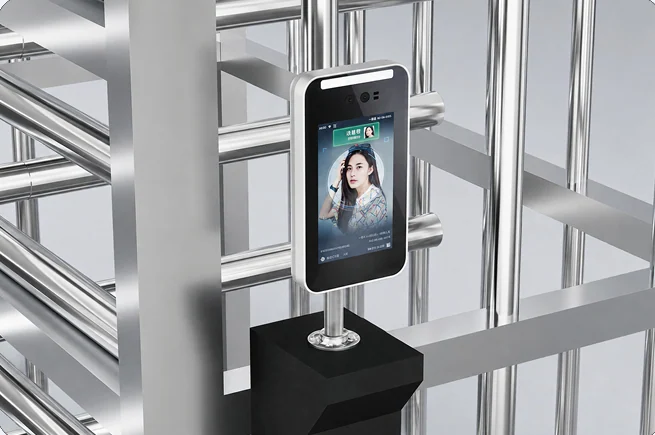

The source shows a face terminal ahead of the rotating passage. Reader type and access-control connection are selected for the project.

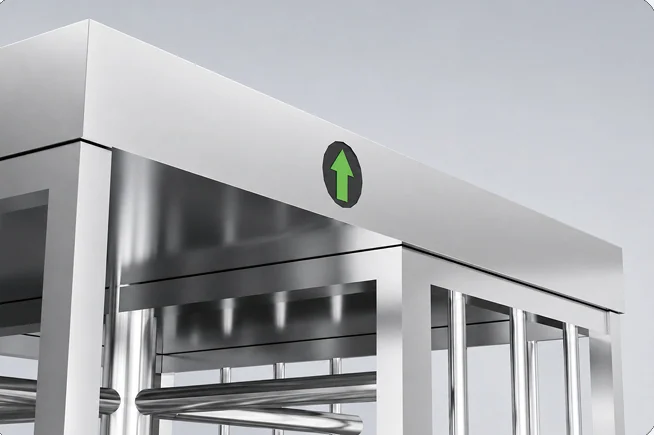

The indicator is positioned above the passage so users can identify the permitted route.
DIMENSIONS & INSTALLATION
Check the full assembly footprint and clear passage separately. Coordinate perimeter fencing, cable routes and any separate service or accessible route.
DIMENSIONS

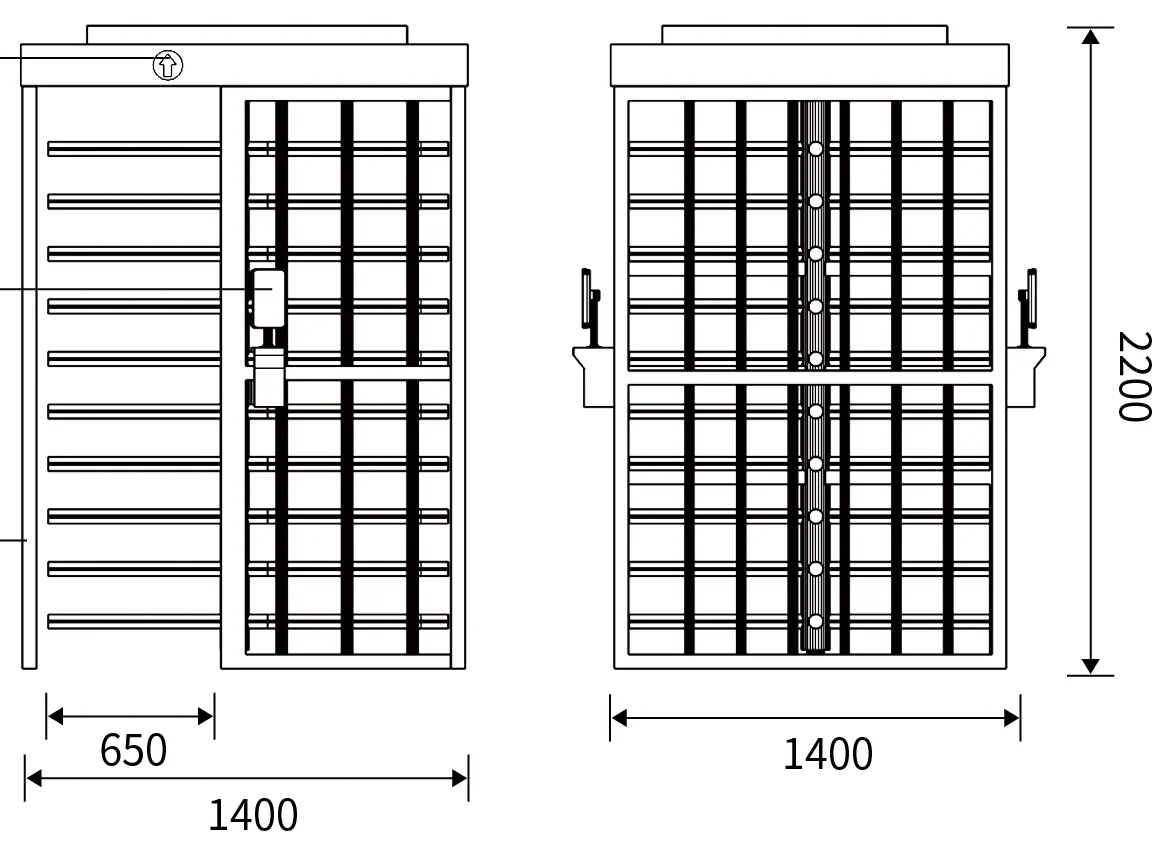

The overall dimensions are 1,400 × 1,400 × 2,200 mm, with a clear passage up to 650 mm. Coordinate the enclosure with perimeter fencing and any separate service or accessible route.
| Parameter | Specification |
|---|---|
| Layout | One rotor passage |
| Overall dimensions | 1,400 × 1,400 × 2,200 mm |
| Passage width | Up to 650 mm per passage |
| Material | Brushed 304 stainless steel |
| Top cover | 0.7 mm |
| Cabinet sheet | 0.7 mm |
PRODUCT QUESTIONS
ZJ-30 has two rotor passages in a 2,150 mm wide assembly. ZJ-29 has one rotor passage and a 1,400 mm wide assembly. Both are listed at 2,200 mm overall height and 1,400 mm depth.
No. The parameter table assigns 0.7 mm to the top cover and cabinet sheet. It does not give a rotor-tube wall thickness.
A face-reader arrangement is illustrated. Confirm the reader hardware, credential method and access-control interface required for your project.
The model table does not provide a usable motor specification or a dedicated passage-rate figure. These requirements should be confirmed with the selected configuration.
YOUR PROJECT
Share the required passage count, perimeter layout and access-control configuration.
