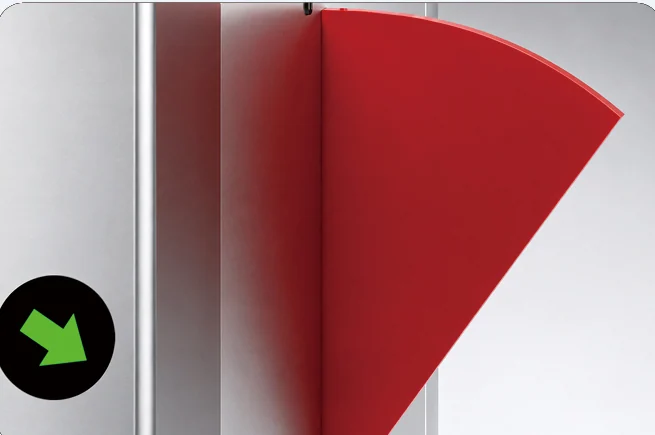

The fan-shaped wings withdraw into their cabinets to release the passage. The catalogue lists clear, red and blue wing options; the original view shown here is red.
RETRACTING-WING PASSAGE
ZJ-26 Flap Barrier
A flap barrier with a pair of retracting fan-shaped wings between stainless-steel cabinets. The red-wing reference makes the closed passage clearly visible, with reader positions at the cabinet ends.
- Cabinet dimensions
- 1,200 × 300 × 980 mm — drawing reference
- Clear passage
- Up to 550 mm — drawing reference
- Cabinet material
- Stainless steel; grade confirmed with order
RETRACTING-WING PASSAGE
The wings withdraw into the cabinets.
A pair of fan-shaped wings controls the passage. On release, the wings retract into the cabinets; indicators and selected readers guide the arriving user.
ACCESS & INDICATION
Choose how people identify themselves.
Readers shown are configuration references. Confirm the supplied reader, controller and access platform for the project.
Face-reader option

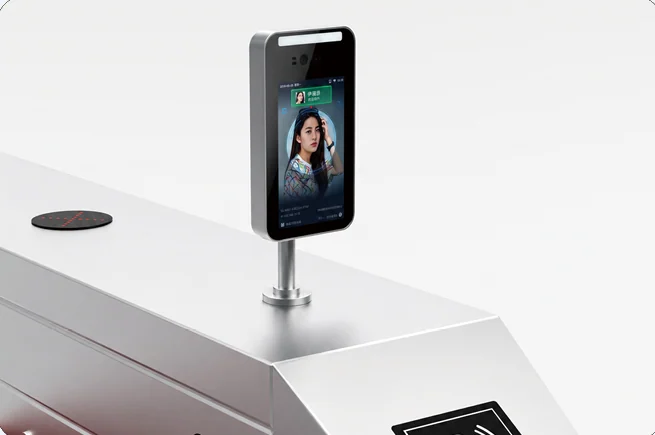

A face terminal is shown mounted above the cabinet. Reader hardware and the access platform are selected to match the project.
A reader position within reach

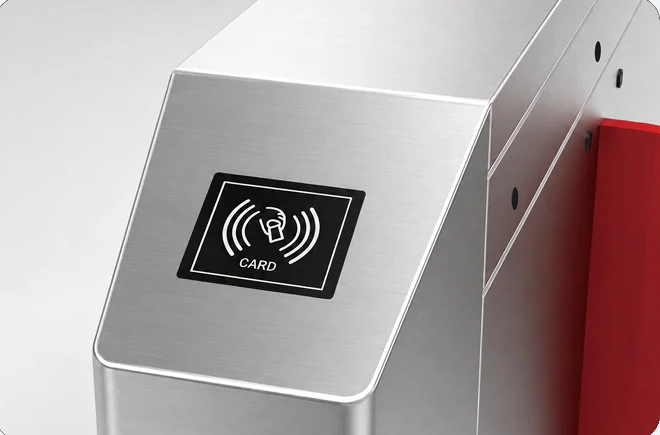

The cabinet incorporates a card-reader position. Card, QR or other credential requirements should be specified with the access-control configuration.
Visible passage status

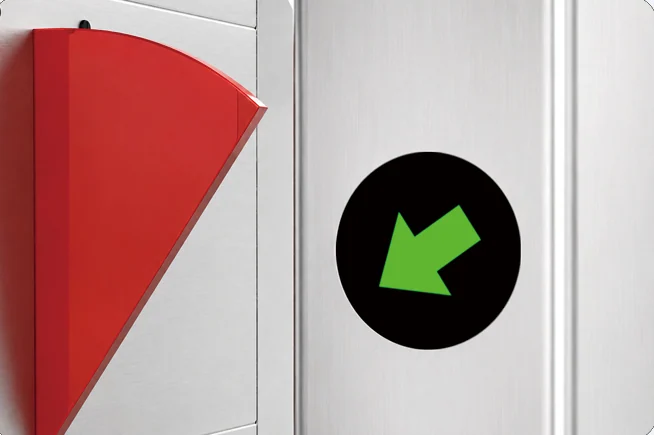

The indicator at the cabinet helps the user see the passage status. The source describes red for stop and green for permitted passage.
GUIDANCE & DETECTION
Make the passage status clear.
Voice guidance and alarm

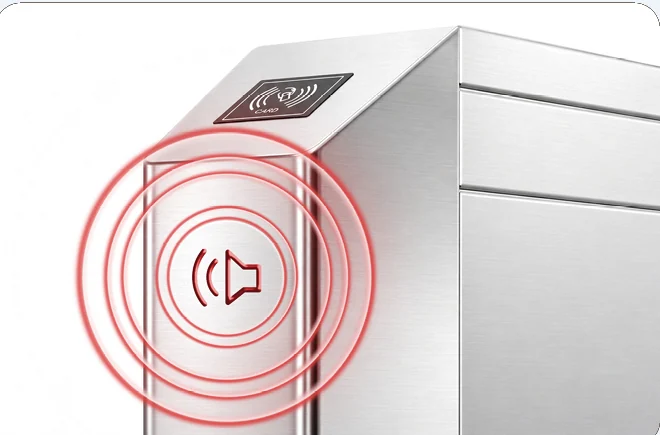

The catalogue describes spoken guidance and an alarm for passage events. Agree the announcement content and access-control response with the selected equipment.
Detection through the lane

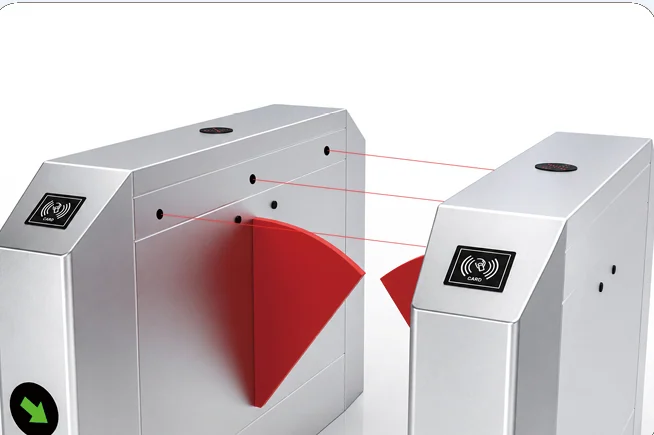

Infrared sensing monitors the passage and supports the specified anti-tailgating response. Detection coverage and operating logic are commissioned for the lane arrangement.
DIMENSIONS & INSTALLATION
Allow for cabinets and clear lane.
Confirm the required passage width, cabinet positions, cable entries and selected wing configuration.
DIMENSIONS
Lay out the passage before selecting equipment.
Cabinet space and clear opening

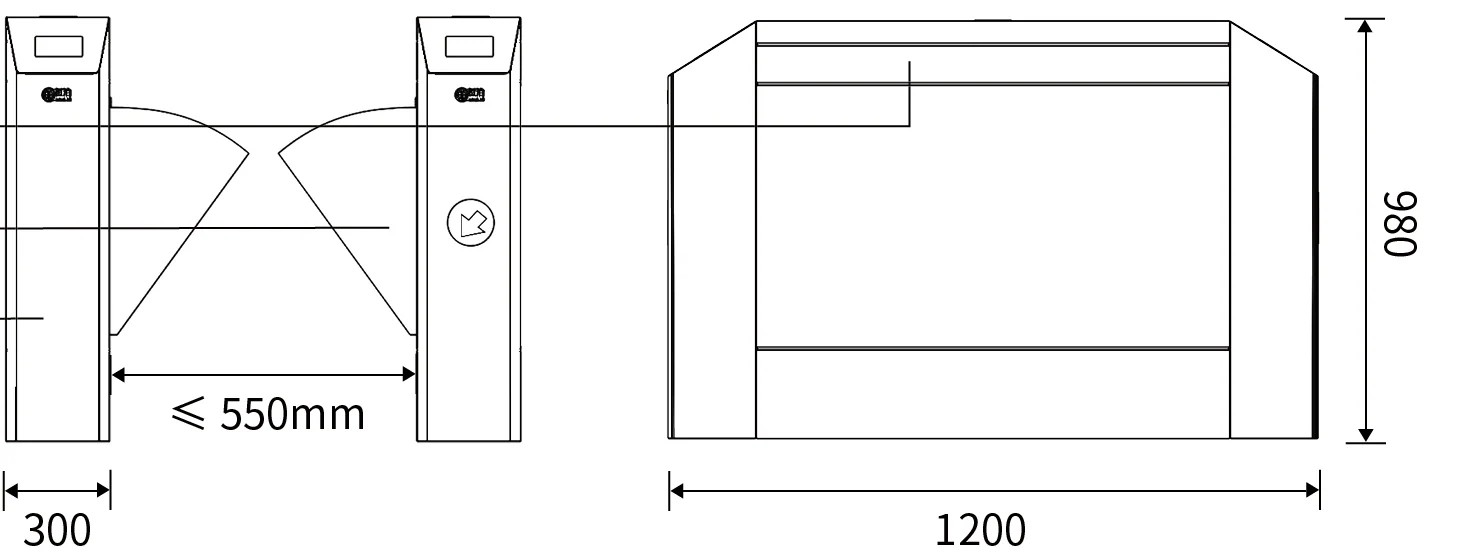

The cabinet dimensions are 1,200 × 300 × 980 mm — drawing reference. The clear passage is up to 550 mm — drawing reference. Allow for the cabinet bodies as well as the passage when laying out an entrance.
Product specifications
| Parameter | Specification |
|---|---|
| Cabinet dimensions | 1,200 × 300 × 980 mm — drawing reference |
| Clear passage | Up to 550 mm — drawing reference |
| Cabinet material | Stainless steel; grade confirmed with order |
| Cabinet wall | 0.8 mm |
| Top cover | 1.2 mm |
| Wing colour options | Clear, red or blue; red reference shown |
PRODUCT QUESTIONS
Planning with ZJ-26.
Can the wing colour be changed?
The model table lists clear, red and blue wings. Only the red configuration is shown in the current source artwork. Specify the requested colour when enquiring.
Are all the illustrated readers included?
No. The images show supported identification arrangements. Specify the required reader and access-control system so the hardware and integration scope can be confirmed.
Can this replace an accessible or emergency route?
Choose the passage width and surrounding route to match the site requirements. Accessibility, emergency egress and release behaviour need to be checked as part of the complete entrance design.
What information is needed for a quotation?
Send ZJ-26, the required number of passages, selected clear width, entry and exit directions, reader requirements and a floor plan or site photographs.
