SWING-PANEL PASSAGE

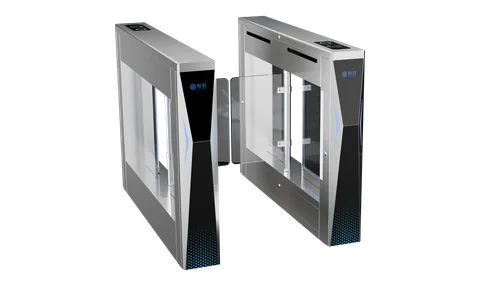

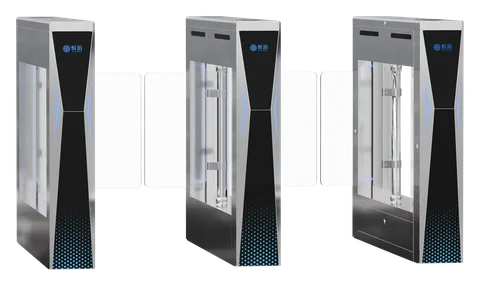

An angular swing-gate cabinet with a black hourglass front, blue light accents and transparent barrier panels. A shared middle cabinet allows adjacent passages to be arranged within the same entrance.

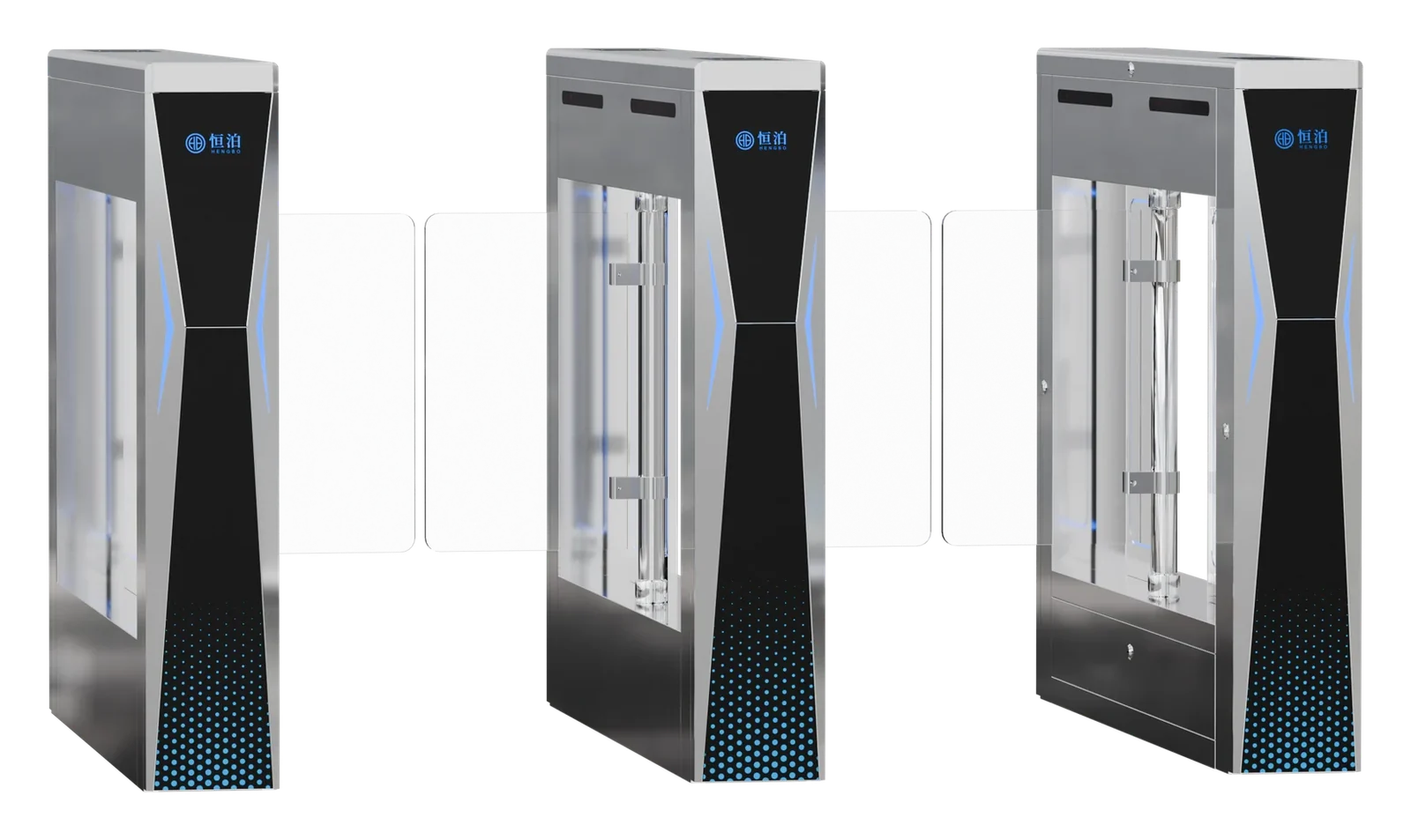

Three cabinets / two passages; layout reference
SWING-PANEL PASSAGE
The panels swing beside the cabinets to release the lane. Plan the cabinet bodies, reader position and clear passage together; each model keeps its own sensor and drive specifications.
ZJ-2411 product operation film
GATE & CABINET

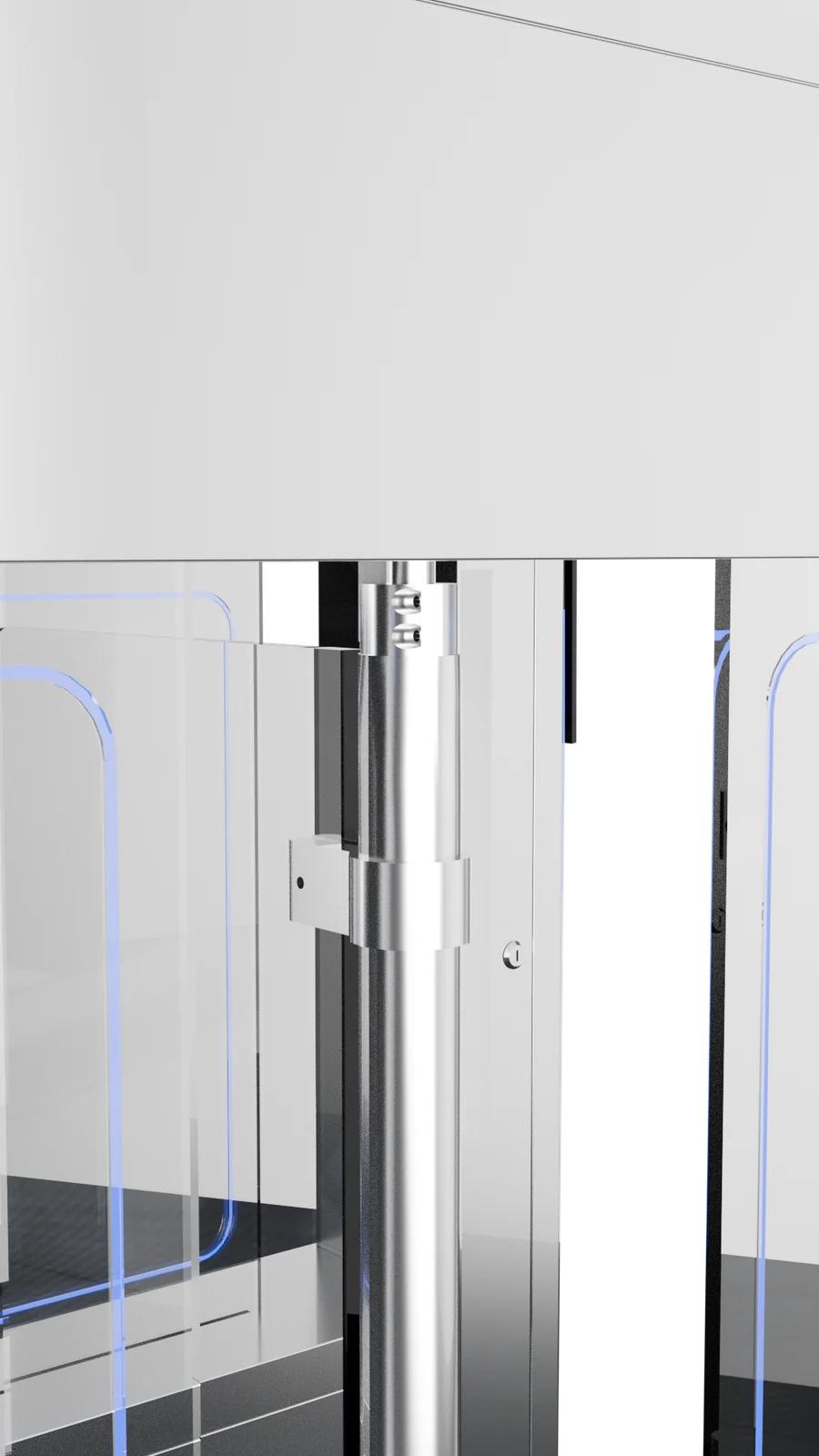

The original manufacturer close-up shows the hinge connection between the transparent panel and the cabinet.

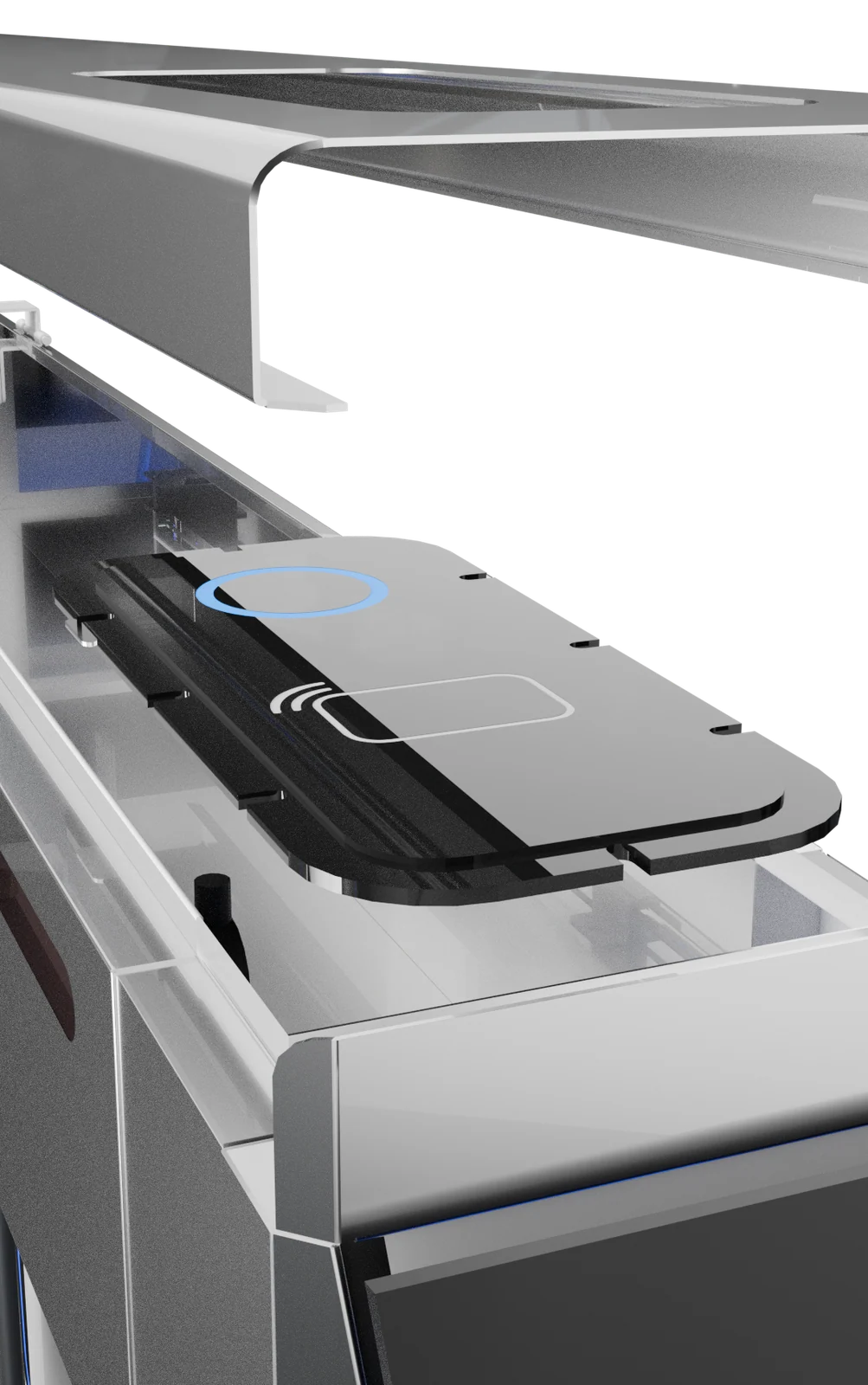

The opened cover exposes the drive and control equipment for installation and servicing.
The angular black front carries blue accent details around the cabinet face.
ACCESS & INDICATION
Readers shown are configuration references. Confirm the supplied reader, controller and access platform for the project.

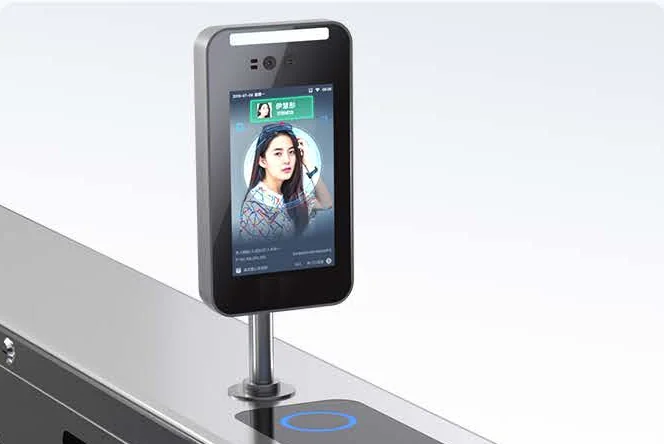

A face terminal is shown mounted above the cabinet. Reader hardware and the access platform are selected to match the project.

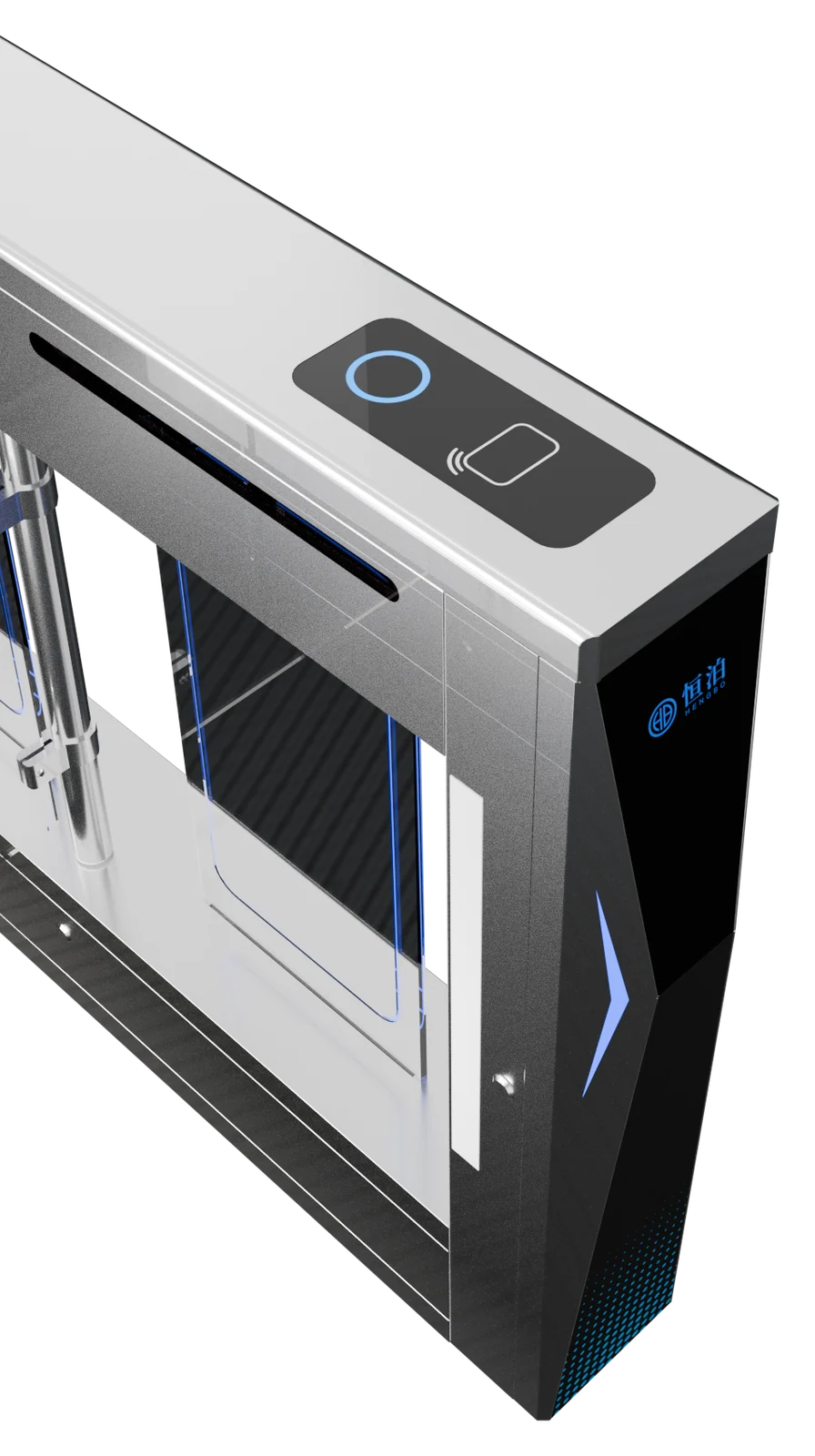

The cabinet incorporates a card-reader position. Card, QR or other credential requirements should be specified with the access-control configuration.

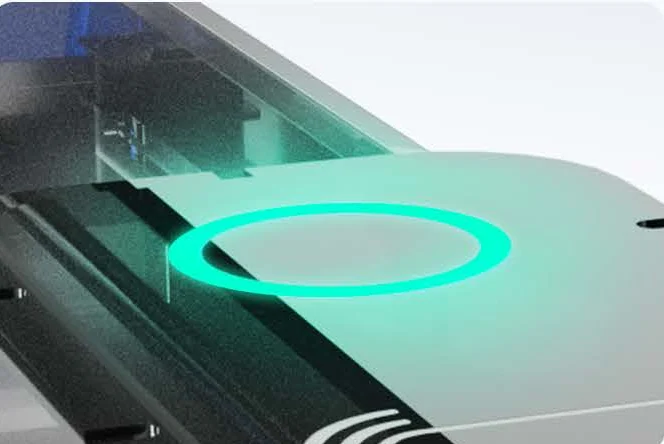

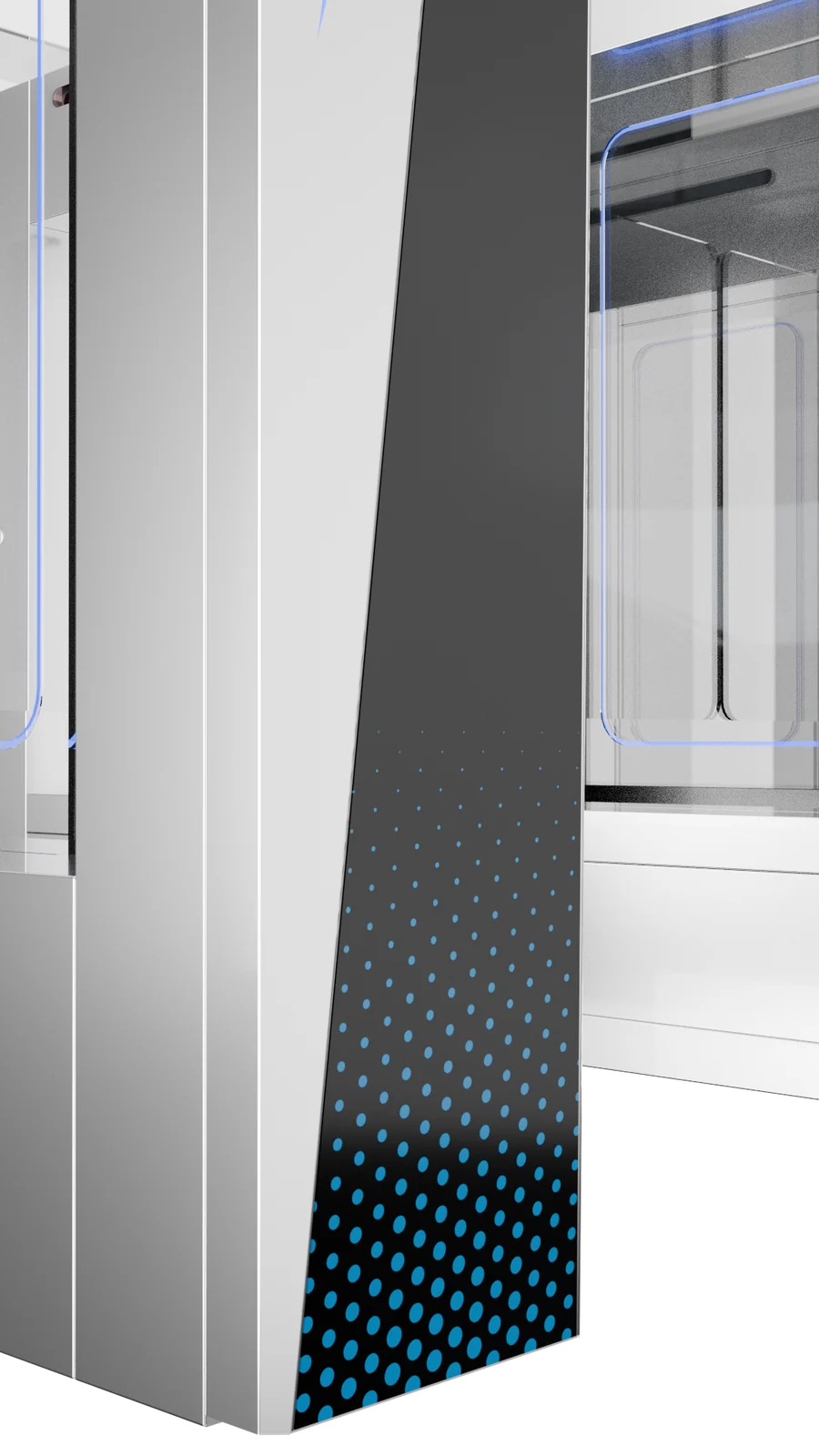

The indicator at the cabinet helps the user see the passage status. The source describes red for stop and green for permitted passage.
GUIDANCE & DETECTION

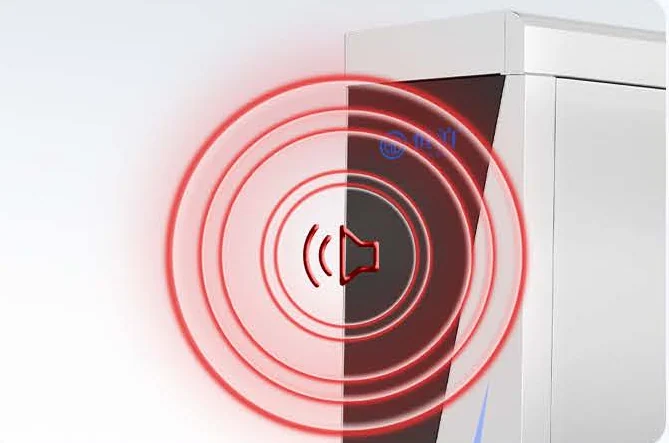

The catalogue describes spoken guidance and an alarm for passage events. Agree the announcement content and access-control response with the selected equipment.

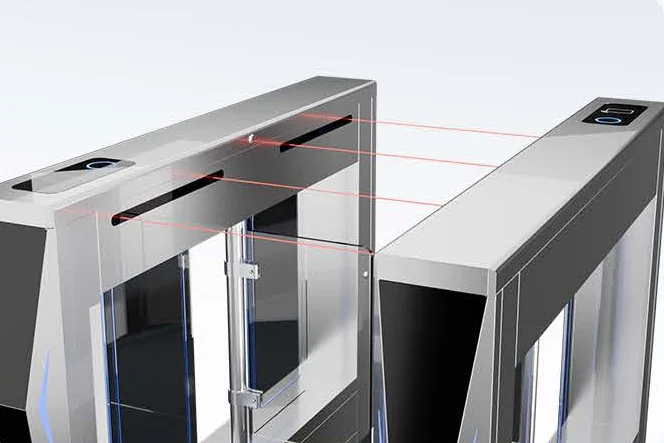

Infrared sensing monitors the passage and supports the specified anti-tailgating response. Detection coverage and operating logic are commissioned for the lane arrangement.
DIMENSIONS & INSTALLATION
Cabinet width is additional to the clear lane. Coordinate reader positions, cable entries, panel travel and the required number of passages.
DIMENSIONS

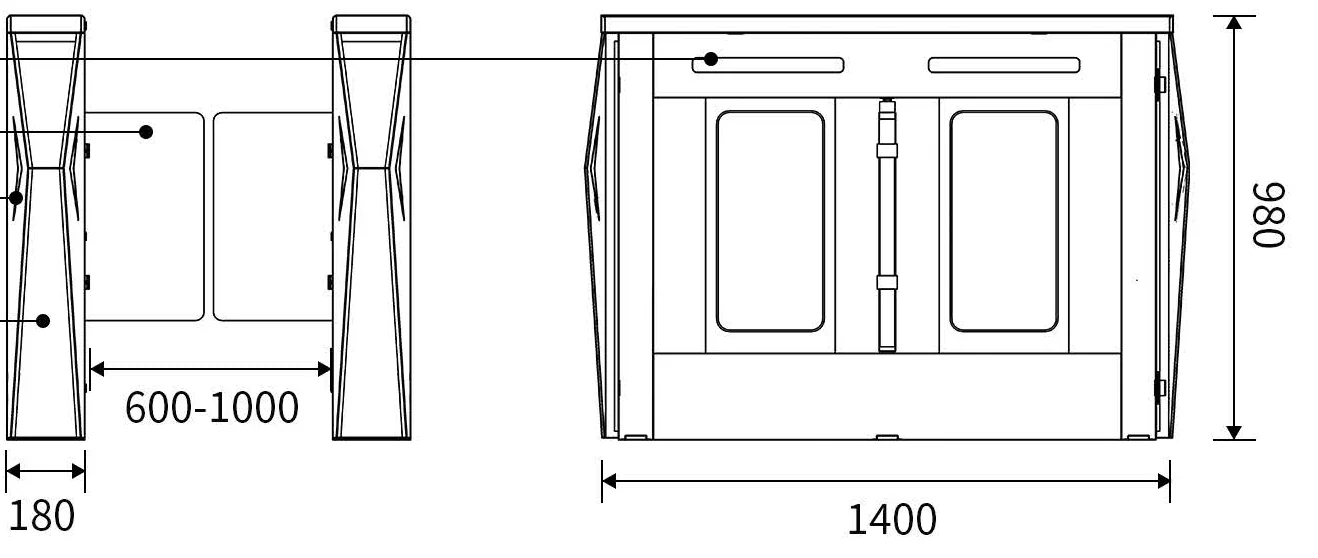

The cabinet dimensions are 1,400 × 180 × 980 mm. The clear passage is 600–1,000 mm. Allow for the cabinet bodies as well as the passage when laying out an entrance.
| Parameter | Specification |
|---|---|
| Cabinet dimensions | 1,400 × 180 × 980 mm |
| Clear passage | 600–1,000 mm |
| Cabinet material | SUS304 stainless steel |
| Cabinet wall | 0.8 mm |
| Top cover | 1.2 mm |
| Infrared detection | 4 pairs of through-beam sensors |
| Input supply | 220 V ±10%, 50 Hz |
| Controller output | DC 24 V |
| Anti pinch | Current detection and infrared detection |
| Opening time | 0.6 s, adjustable |
| Passage rate | 20–30 persons/min — catalogue specification |
| Operating temperature | −30°C to +80°C |
| Drive | Brushless controller drive |
| Relative humidity | ≤95% |
PRODUCT QUESTIONS
Two outer cabinets form one passage. Three cabinets can form two adjacent passages using a shared middle unit. Cabinet roles, quantities and directions are selected to match the entrance plan.
No. The images show supported identification arrangements. Specify the required reader and access-control system so the hardware and integration scope can be confirmed.
Choose the passage width and surrounding route to match the site requirements. Accessibility, emergency egress and release behaviour need to be checked as part of the complete entrance design.
Send ZJ-2411, the required number of passages, selected clear width, entry and exit directions, reader requirements and a floor plan or site photographs.
YOUR PROJECT
Share the number and width of passages, entry direction and required reader system.
