SWING-PANEL PASSAGE
An angular stainless-steel swing gate with open-frame metal arms and visible direction plaques. Its 280 mm wide cabinets house the drive and provide sloped faces for access readers.
SWING-PANEL PASSAGE
The panels swing beside the cabinets to release the lane. Plan the cabinet bodies, reader position and clear passage together; each model keeps its own sensor and drive specifications.
GATE & CABINET

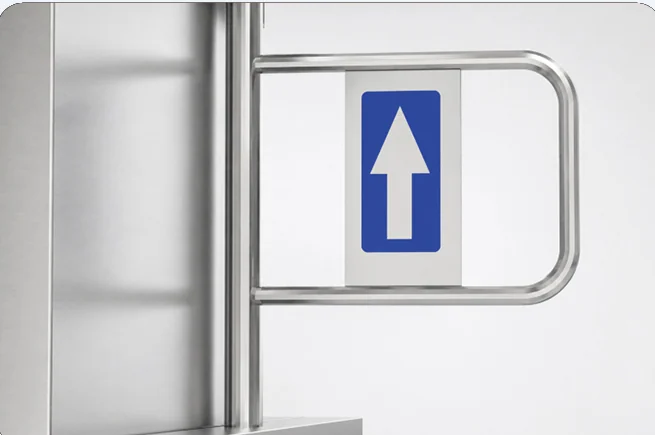

The original image and drawing show metal swing arms with direction plaques. The listed arm-length options are 500–900 mm, selected together with the passage arrangement.

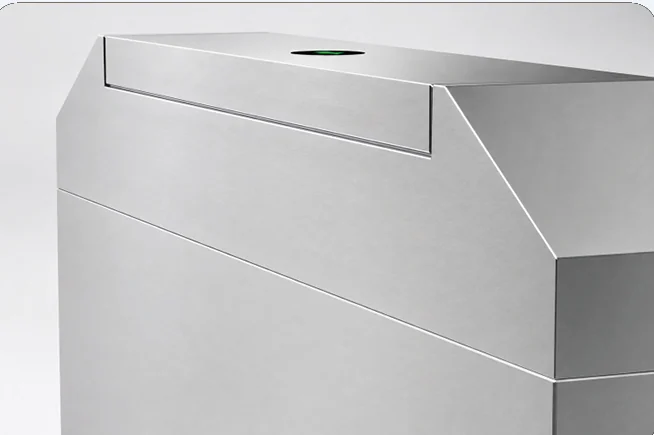

The angled top and side seams form the metal cabinet around the swing mechanism.
ACCESS & INDICATION
Readers shown are configuration references. Confirm the supplied reader, controller and access platform for the project.

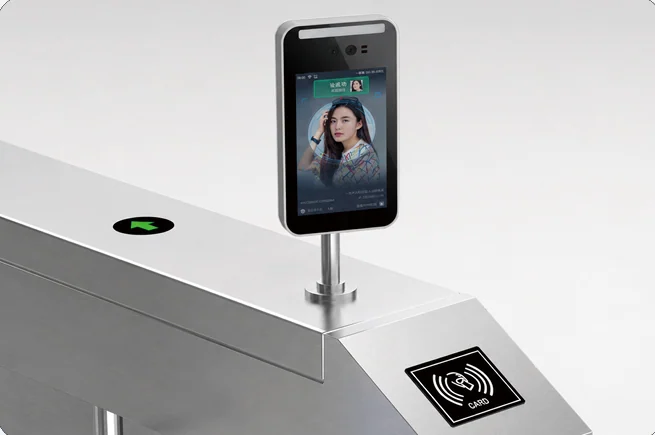

A face terminal is shown mounted above the cabinet. Reader hardware and the access platform are selected to match the project.

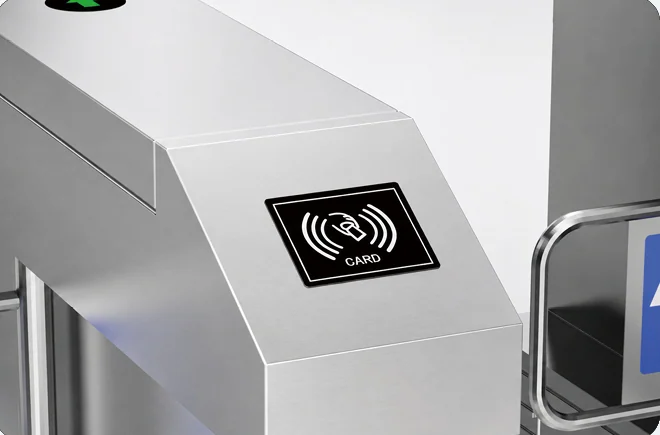

The cabinet incorporates a card-reader position. Card, QR or other credential requirements should be specified with the access-control configuration.

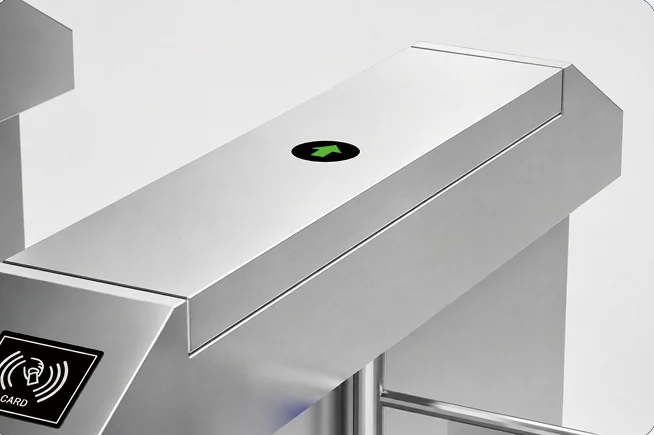

The indicator at the cabinet helps the user see the passage status. The source describes red for stop and green for permitted passage.
DIMENSIONS & INSTALLATION
Cabinet width is additional to the clear lane. Coordinate reader positions, cable entries, panel travel and the required number of passages.
DIMENSIONS
The cabinet dimensions are 1,200 × 280 × 980 mm. The clear passage is 600–1,200 mm. Allow for the cabinet bodies as well as the passage when laying out an entrance.
| Parameter | Specification |
|---|---|
| Cabinet dimensions | 1,200 × 280 × 980 mm |
| Clear passage | 600–1,200 mm |
| Cabinet material | Brushed 304 stainless steel |
| Cabinet wall | 0.8 mm |
| Top cover | 1.2 mm |
| Drive | 24 V DC brushless motor |
| Arm length | 500–900 mm, optional |
PRODUCT QUESTIONS
The original model artwork and dimension drawing show open stainless-steel arms with arrow plaques. The glass-wing description repeated in the feature caption is not used for this model.
No. The images show supported identification arrangements. Specify the required reader and access-control system so the hardware and integration scope can be confirmed.
Choose the passage width and surrounding route to match the site requirements. Accessibility, emergency egress and release behaviour need to be checked as part of the complete entrance design.
Send ZJ-01, the required number of passages, selected clear width, entry and exit directions, reader requirements and a floor plan or site photographs.
YOUR PROJECT
Share the number and width of passages, entry direction and required reader system.
