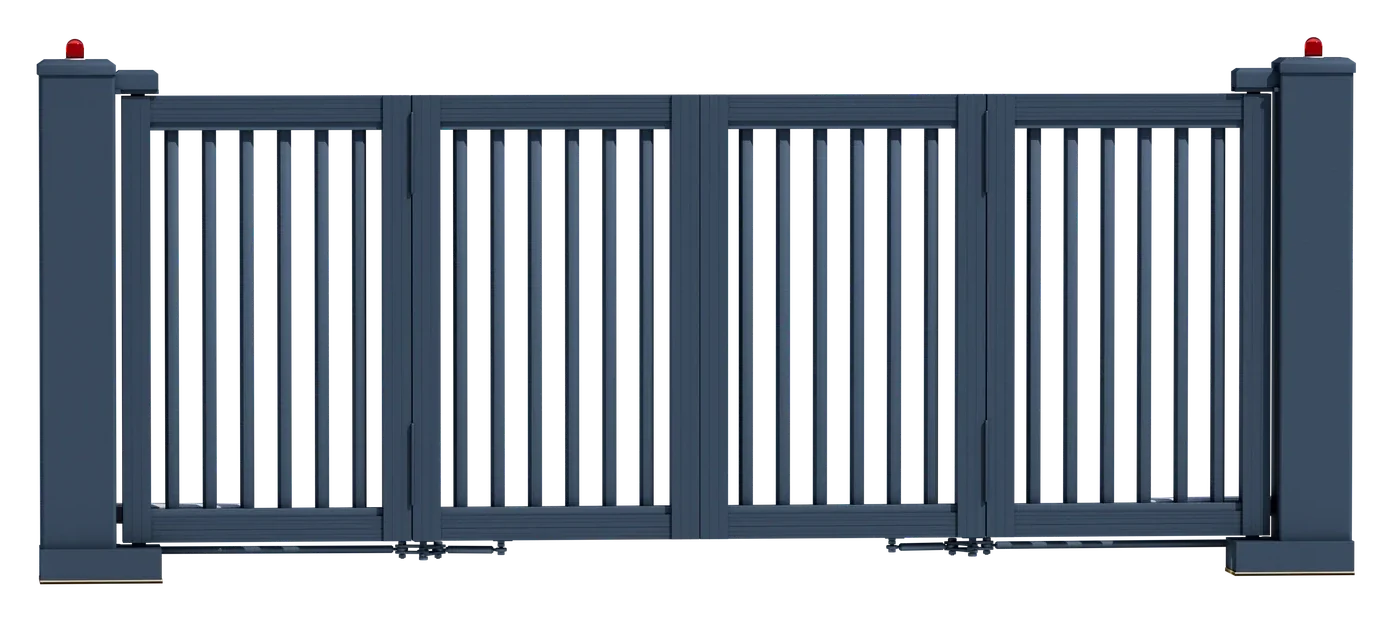

A bilateral folding gate with four leaves carried from the end supports. Z-01 keeps the driveway free of a continuous track and ground-running wheels, while its hinged leaves fold toward the two sides of the entrance.
Four open-bar leaves with original end posts, hinges and lower folding linkages.
Shown colour. Custom colours on request.
STRUCTURE & MATERIALS

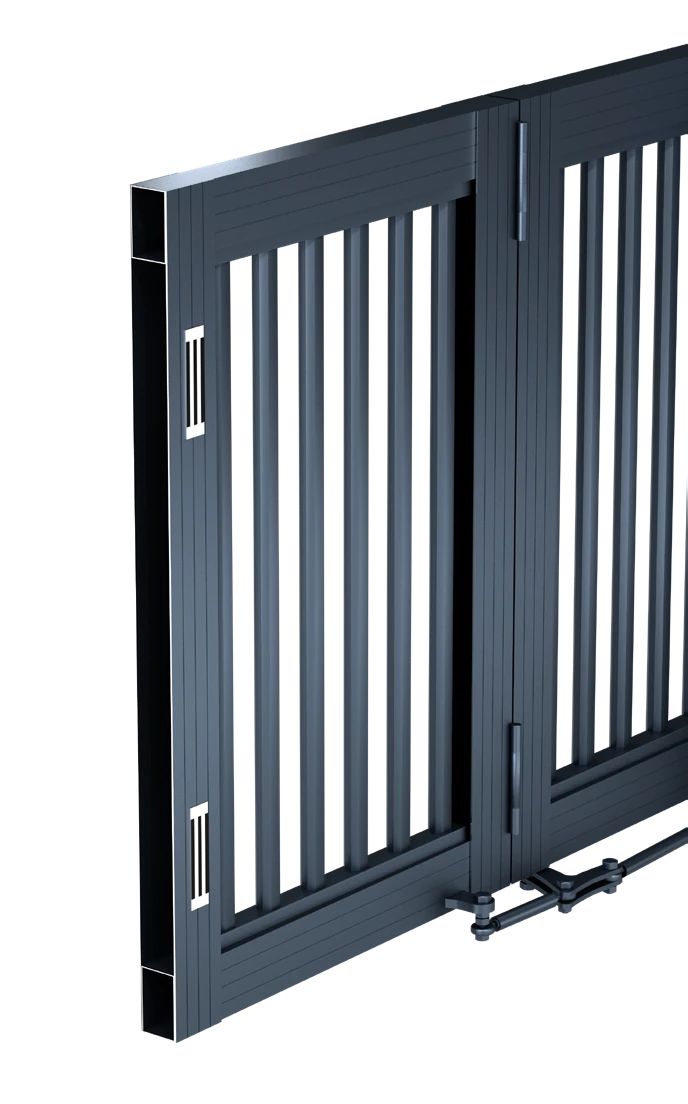

The gate frame uses 120 × 80 × 4.5 mm aluminium profiles and 50 × 27 × 1.5 mm aluminium intermediate bars. The side frame is 100 × 103 × 3 mm stainless steel. The lower folding linkage is painted galvanised steel.
OPENING MOVEMENT

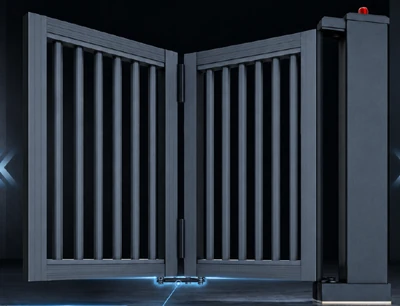

The original close-up shows a pair of leaves partially folded beside its end support. The linkage coordinates the movement without a travel wheel or continuous track across the driveway. Allow space for this sweep at both sides.
CLOSURE & CONTROL
The material diagram identifies a magnetic lock on the leaf. Confirm its interface and operating sequence with the chosen gate controls; the catalogue does not specify a holding-force rating.
The product details describe electric operation with safety warning. End-post beacons are visible in the original images. Agree the sensors and warning configuration for the completed entrance.
TECHNICAL DETAILS
Coordinate the fixed end supports, folding linkage and clear swept area of both leaf pairs.

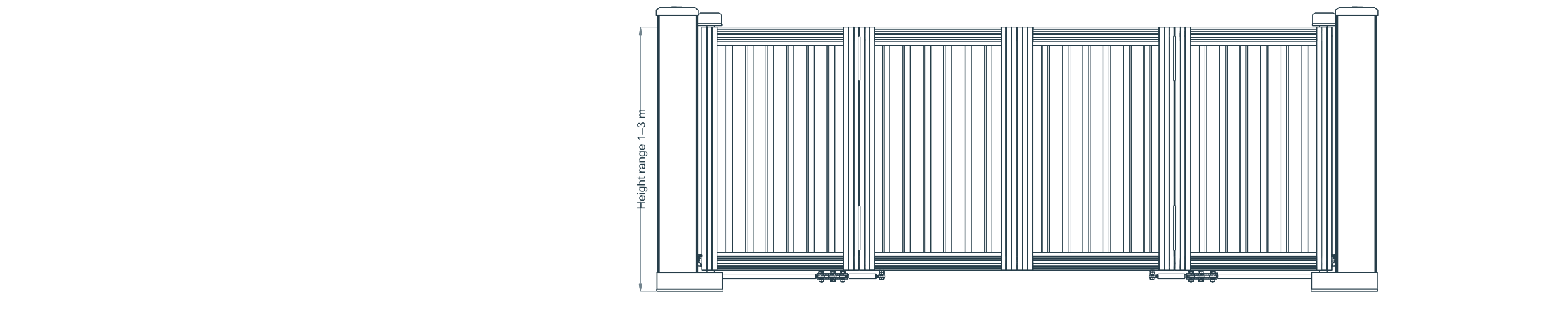

The source drawing illustrates the four-leaf arrangement and gives recommended overall ranges of 6–12 m length and 1–3 m height. The style reference is 1600 mm high. Final leaf sizes, support foundations and clear opening are set by the site drawing.
| Parameter | Specification |
|---|---|
| Reference gate height | 1600 mm |
| Gate frame | 120 × 80 × 4.5 mm, aluminium alloy |
| Side frame | 100 × 103 × 3.0 mm, stainless steel |
| Intermediate bars | 50 × 27 × 1.5 mm, aluminium alloy |
| Folding linkage | Painted galvanised steel |
| Locking | Magnetic lock |
| Ground-running wheels | None in the catalogue configuration |
| Ground track | No embedded driveway track |
| Length | Custom |
Select the access and protection equipment with your gate. Included devices, interfaces and operating response are confirmed in the quotation.
PRODUCT QUESTIONS
Z-01 is shown as a bilateral floating folding gate without ground-running wheels. D-22 uses a ground-supported leading wheel. Their support and swept-space requirements must be reviewed separately.
No. The end supports still need appropriate foundations and installation space. Keep the complete folding sweep clear of walls, parked vehicles and pedestrian routes.

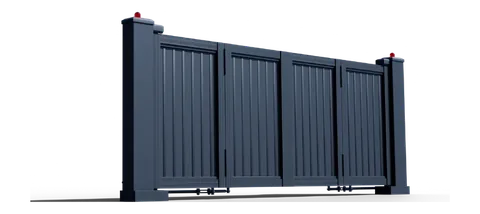

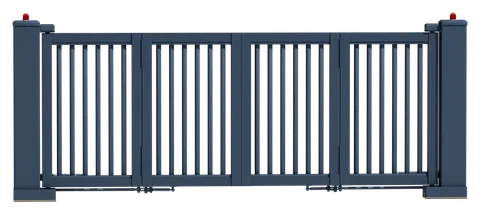

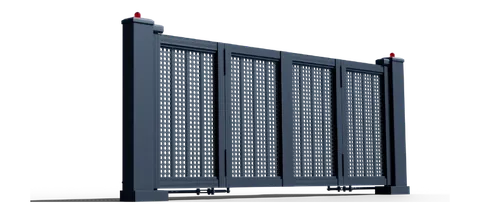

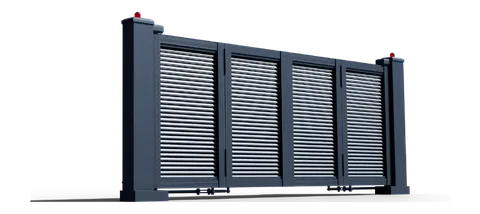

The catalogue shows vertical bars, louvres, solid panels and round-perforated panels. The chosen infill, final leaf sizes and controls are confirmed together for the entrance.
YOUR PROJECT
Share your clear opening, gate height, ground levels and available space for the Z-01. Your selected style is included in the enquiry.
