A track-free cantilever gate with aluminium beams and stainless-steel uprights. Solid panels with X-bracing as standard. Dimensions, colour and optional infill styles can be specified for your entrance.

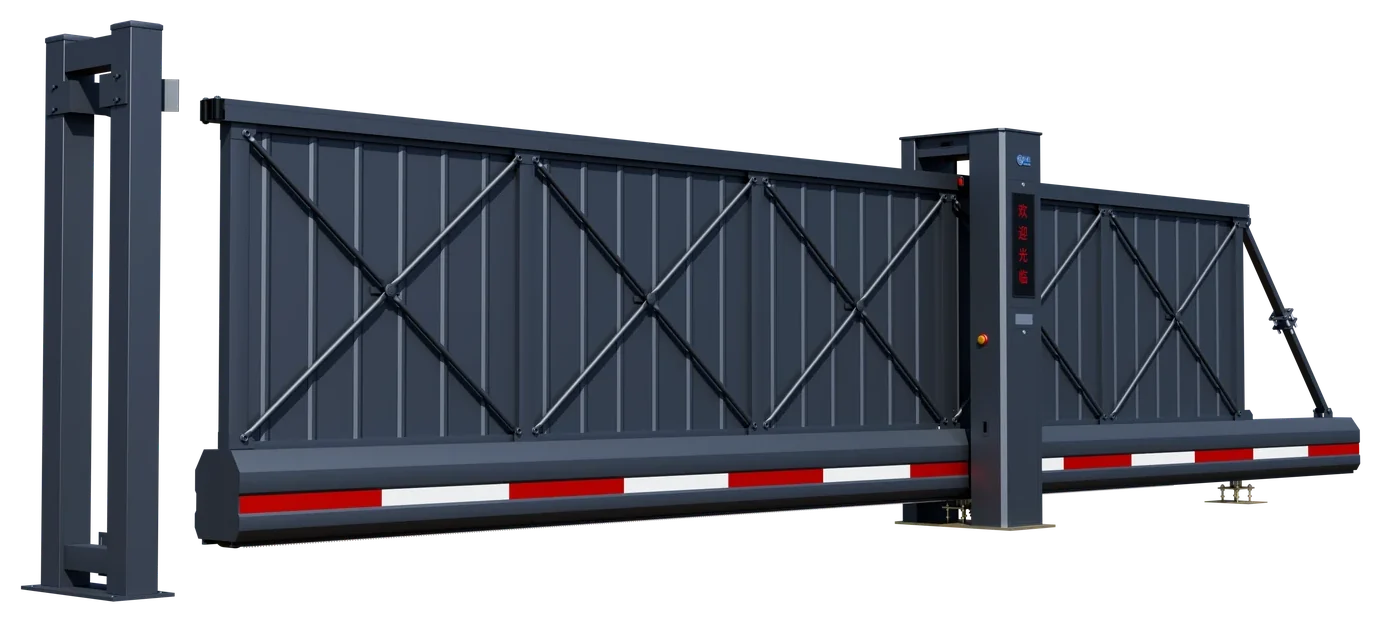

Fully enclosed solid panels with X-bracing. The standard configuration.
Shown colour. Custom colours on request.

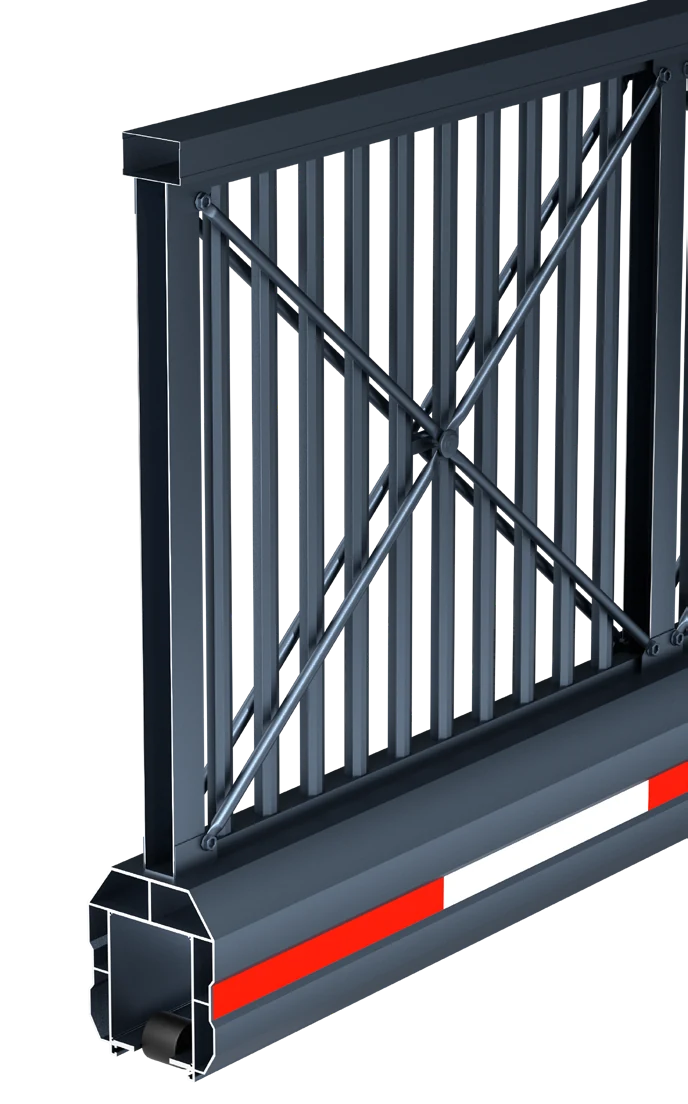

STRUCTURE & MATERIALS
Aluminium beams, stainless-steel uprights and X-bracing. Aluminium surfaces have an electrostatic powder-coated finish.
The gate travels through fixed supports, with no ground track across the driveway.

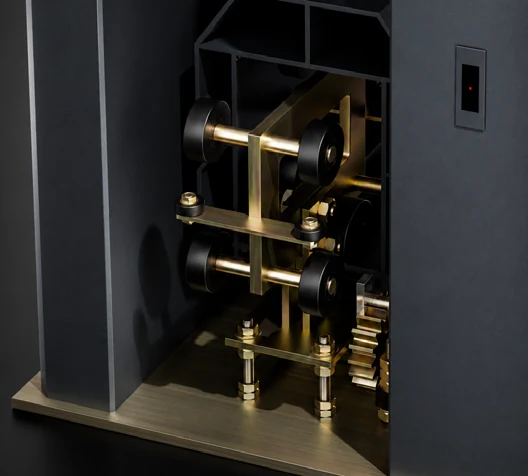

Supports the moving gate inside the fixed housing.

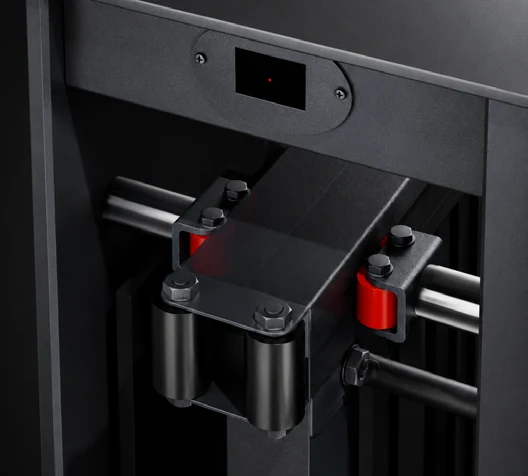

Guides the gate and cushions vibration at the support.

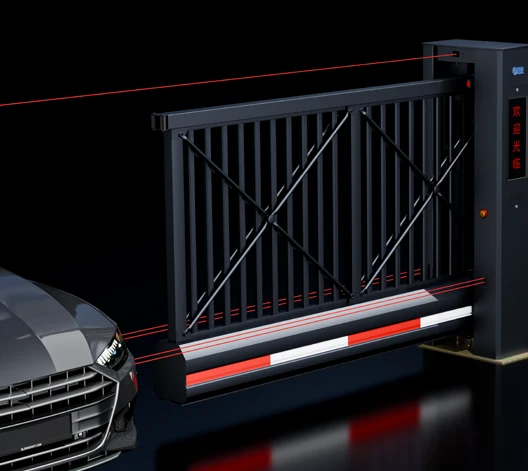

Infrared detection across the entrance. The final sensors and operating response are specified for the installation.
TECHNICAL DETAILS
Reference dimensions for the X-07. Final gate dimensions and installation space are confirmed for your site.
For an 8 m opening, allow the complete 12 m gate length, including the rear section and tail, plus site clearances.
Not to scale. Recommended panel height: up to 2,000 mm. Site dimensions confirmed before ordering.
| Parameter | Specification |
|---|---|
| Gate height (reference) | 1700 mm |
| Upper beam | Aluminium · 120 × 80 × 4.5 mm |
| Main upright | Stainless steel · 80 × 80 × 2.0 mm |
| Intermediate upright | Aluminium · 50 × 27 × 1.5 mm |
| Diagonal brace | Painted 201 stainless steel |
| Lower beam | Aluminium · 280 × 340 × 9.0 mm |
| Aluminium finish | Electrostatic powder coating |
| Fixed-frame height | 1920 mm |
| Fixed-frame width | 642 mm |
| Gate length | Customised to the site |
| Total gate length | L = 1.5 × clear opening W |
| Ground clearance | 150 mm |
| Recommended maximum panel height | 2,000 mm |
These are optional configurations. Included equipment, control interfaces and site compatibility are confirmed in your quotation.
PRODUCT QUESTIONS
Yes. Gate length and height can be specified for your entrance. Share the clear opening, requested gate height and available side space so we can review the gate and its complete retraction path.

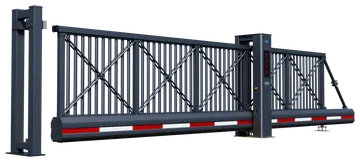

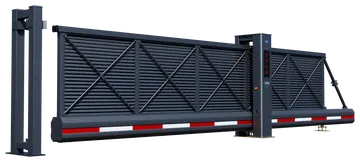

Solid panels with X-bracing are standard. Horizontal louvres, round-perforated panels and vertical bars are optional infills. Custom colours are available on request. Your selected style is included in the enquiry.
Provide the clear opening width, gate height, available side space, quantity and destination country. Add your preferred style, colour and control requirements. A site photo or layout helps us review the entrance.
