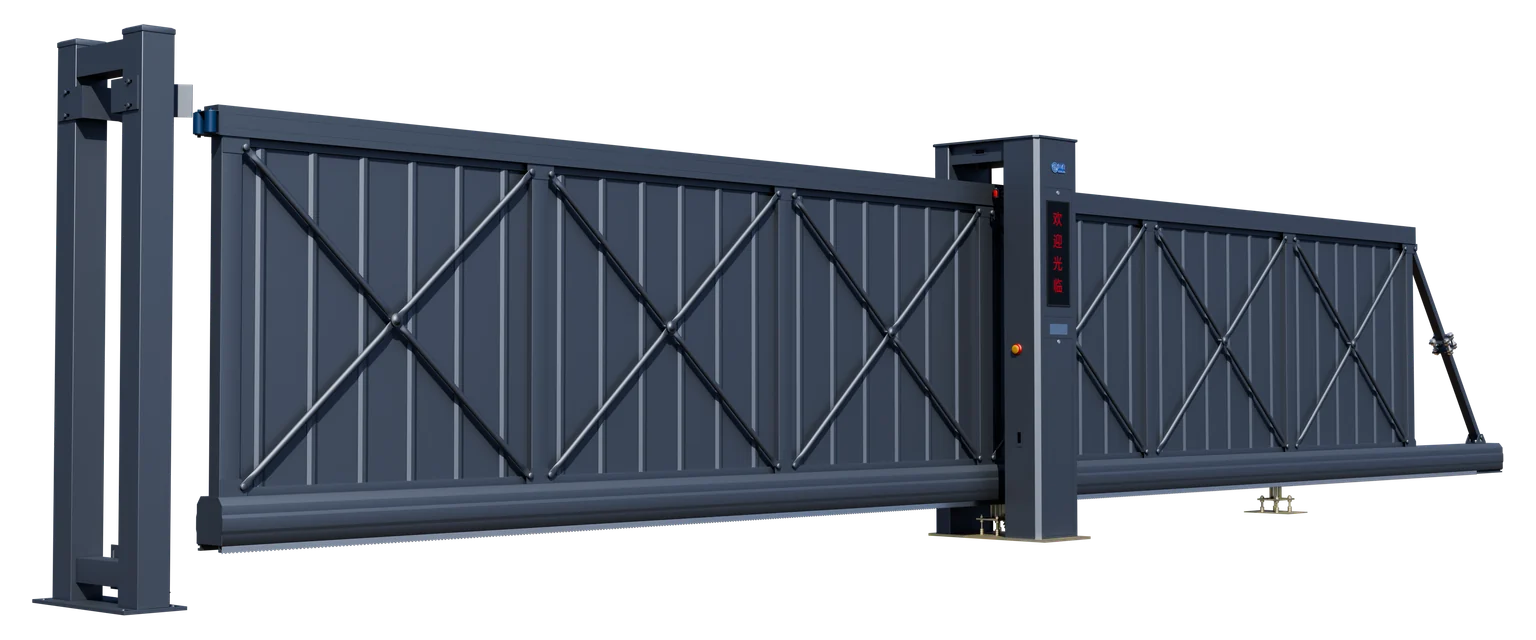

A track-free cantilever gate for factories, industrial parks and construction sites. Solid panels with X-bracing as standard. Dimensions, colour and optional infill styles can be specified for your entrance.

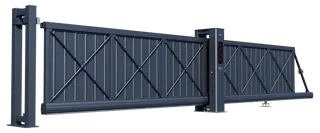

Fully enclosed solid panels with X-bracing. The standard configuration.
Shown colour. Custom colours on request.
STRUCTURE & MATERIALS

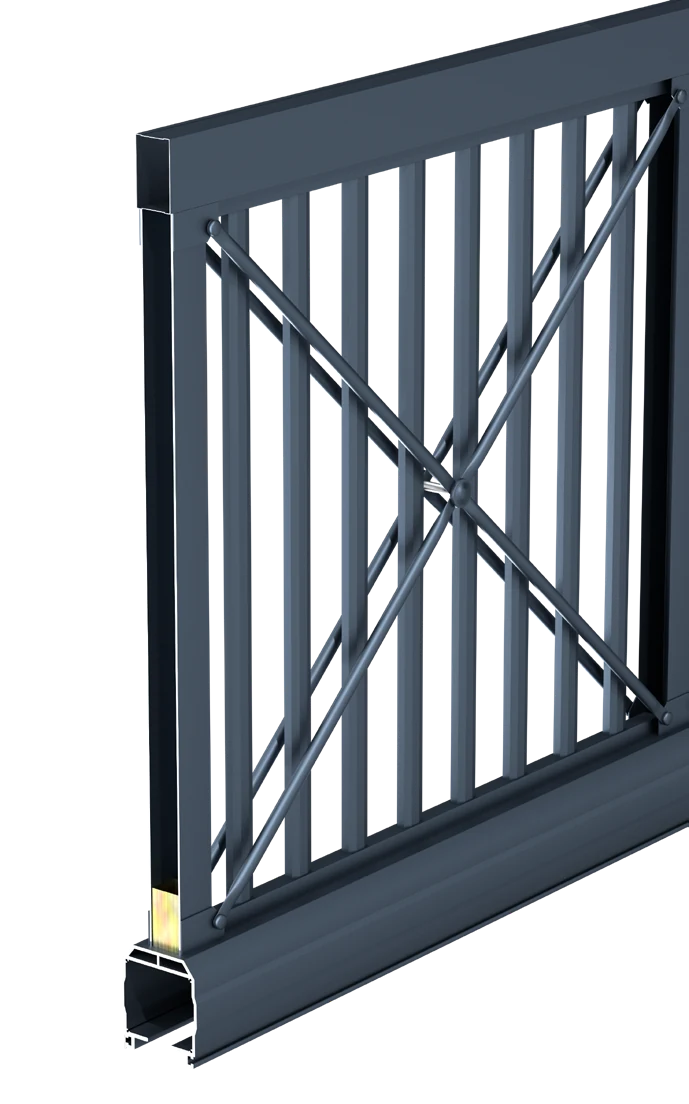

Aluminium beams, stainless-steel uprights and X-bracing on both faces. Aluminium surfaces have an electrostatic powder-coated finish.
The gate travels through fixed supports, with no ground track across the driveway.

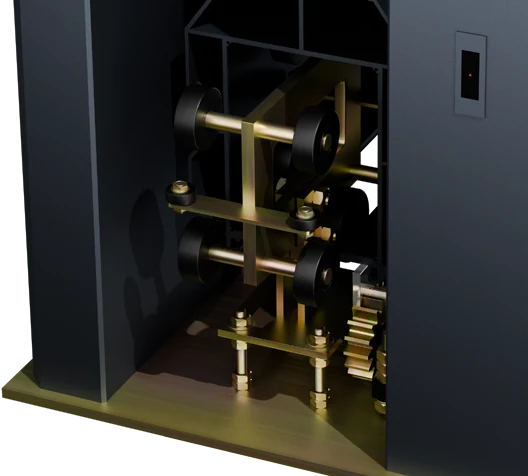

Carries running loads inside the fixed housing.

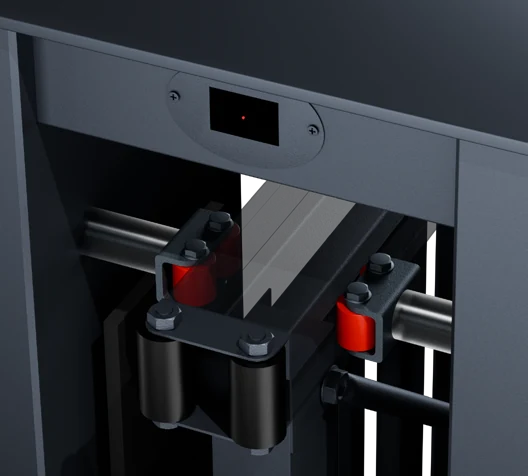

Guide the moving gate and cushion vibration at the support.

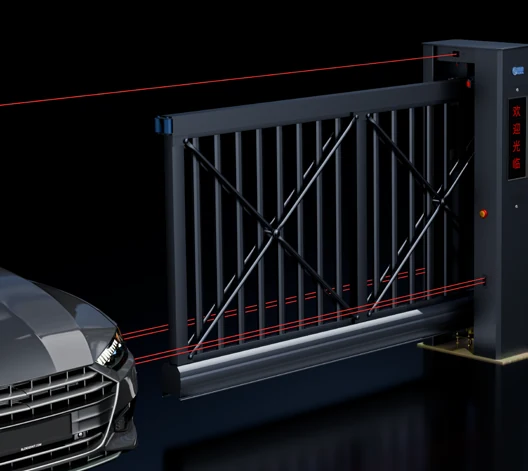

Anti-climb and anti-collision sensing. The final sensors and operating response are specified for the selected equipment.
TECHNICAL DETAILS
Reference dimensions for the X-05. Final gate dimensions are confirmed for your site.
For an 8 m opening, allow the complete 12 m gate length, including the rear section and tail, plus site clearances.
Not to scale. Recommended panel height: up to 2,000 mm. Site dimensions confirmed before ordering.
| Parameter | Specification |
|---|---|
| Power supply | 220 V ±10% |
| Rated motor power | 250 W |
| Motor protection rating | IP54 |
| Gate travel speed | 20 m/min |
| Operating temperature | −25°C to +70°C |
| Ambient humidity | ≤90% |
| Remote control range | 50 m (open area) |
These are optional configurations. Included equipment, control interfaces and site compatibility are confirmed in your quotation.
PRODUCT QUESTIONS
Yes. Gate length and height can be specified for your entrance. Share the opening dimensions and available side space so we can confirm a suitable layout using the reference dimensions above.

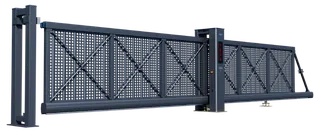

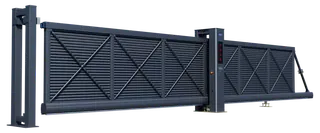

Solid panels with X-bracing are standard. Horizontal louvres and round-perforated panels are optional infills. Custom colours are available on request; your selected style is included in the enquiry.
Provide the clear opening width, gate height, available side space, quantity and destination country. Add your style, colour and control requirements. A site photo or layout helps us review the entrance.
