A track-free cantilever gate with a 300 × 260 × 9 mm aluminium lower beam. Solid panels with X-bracing as standard. Specify the dimensions, colour and optional infill for your entrance.

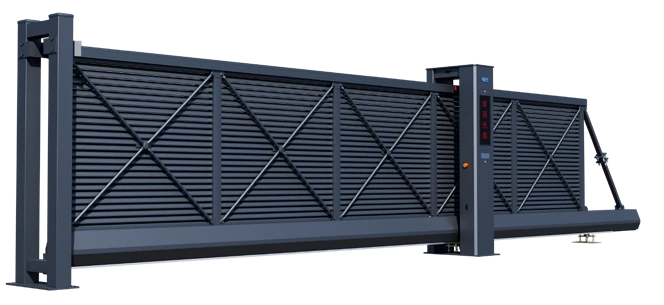

Fully enclosed solid panels with X-bracing. The standard configuration.
Shown colour. Custom colours on request.
STRUCTURE & MATERIALS

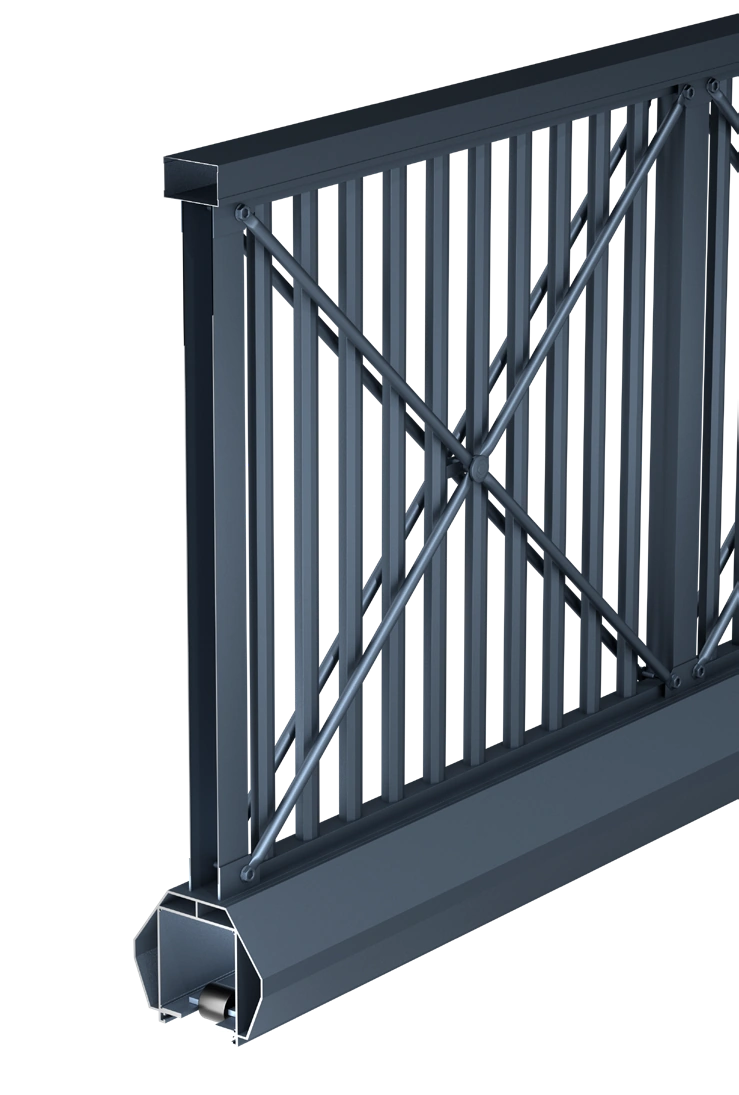

Aluminium beams, stainless-steel main uprights and painted 201 stainless-steel X-bracing. The large lower beam is specified separately from the upper beam.
The moving gate passes through fixed supports, leaving the driveway free of a ground track.

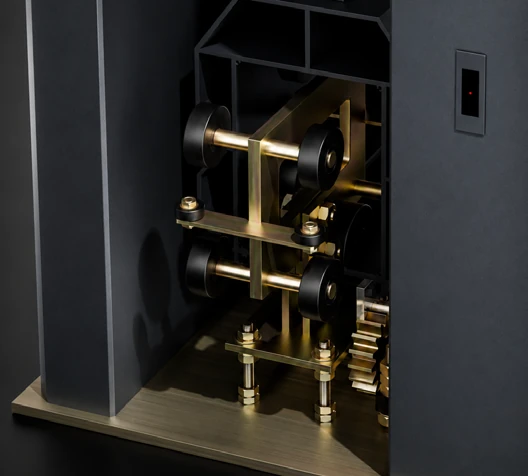

Carries and guides the moving gate inside the fixed housing. The support foundation sits beside the clear vehicle opening.

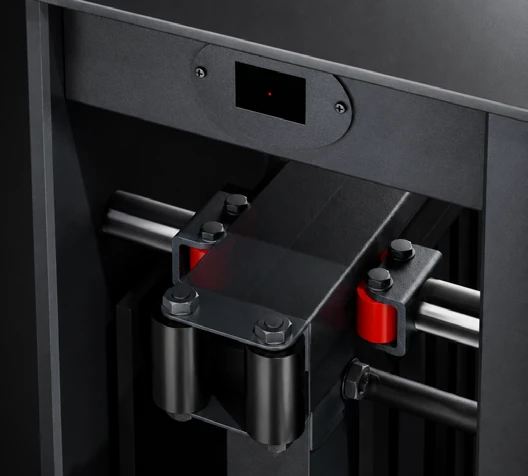

Guide the moving gate through the support and cushion vibration at the housing.

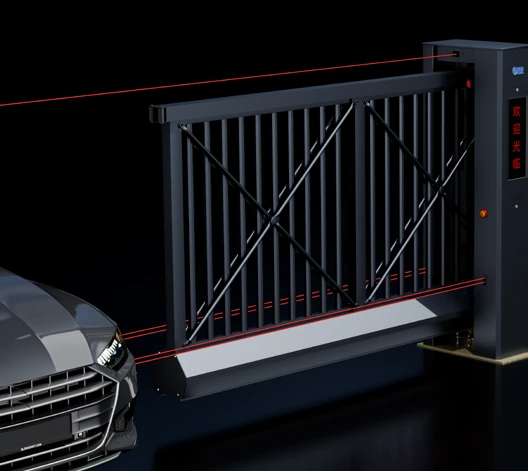

Anti-climb and anti-collision sensing. The sensors and operating response are confirmed for the selected equipment and site.
TECHNICAL DETAILS
Reference dimensions for the X-01. The opening, complete gate length and side return space are confirmed for your site.
For an 8 m opening, allow the complete 12 m gate length, including the rear section and tail, plus site clearances.
Not to scale. Recommended panel height: up to 2,000 mm. Site dimensions confirmed before ordering.
| Parameter | Specification |
|---|---|
| Reference gate height | 1700 mm |
| Upper beam | 120 × 80 × 4.5 mm, aluminium alloy |
| Main upright | 80 × 80 × 2.0 mm, stainless steel |
| Intermediate upright | 50 × 27 × 1.5 mm, aluminium alloy |
| Diagonal brace | Painted 201 stainless steel |
| Lower beam | 300 × 260 × 9.0 mm, aluminium alloy |
| Reference fixed frame | 1920 mm high × 642 mm wide |
| Length and colour | Custom |
| Total gate length | L = 1.5 × clear opening W |
| Ground clearance | 150 mm |
| Recommended maximum panel height | 2,000 mm |
Choose the control and protection equipment for your entrance. Included devices, interfaces and site compatibility are confirmed in your quotation.
PRODUCT QUESTIONS
Yes. Gate length, height and colour can be specified for the site. Share the clear opening and available side space so the complete retraction path, supports and foundation can be checked.
Solid panels with X-bracing are standard. Horizontal louvres and round-perforated panels are optional infills. Custom colours are available on request; your selected style is included in the enquiry.
Provide the clear opening width, required gate height, available side space, quantity and destination country. Add your style, colour and control requirements. A site photo or layout helps us review the entrance.
