The opening and the arm
Share the clear lane width, lane direction and any overhead obstruction. The required arm length and opening space are checked against the chosen barrier.
Lane width · Arm length · HeadroomBUILD YOUR SYSTEM
ANPR & Barrier Gate Systems
Choose an ANPR terminal. Pair it with your barrier gate.
YOUR COMBINATIONLive preview
Select a terminal, then choose your barrier gate.
Select a barrier. Arm configuration is confirmed with your enquiry.
Available together or as individual devices.
A CLOSER LOOK
Inside the CP-15.
Explore the CP-15 terminal in this product detail film.
This film shows the terminal. It does not demonstrate a complete barrier-and-ANPR installation.
MODEL REFERENCE
The terminal details.
Specifications below apply to the named ANPR device. Display variants and the final equipment specification are confirmed with your enquiry.
| ANPR terminal | Camera | Model details |
|---|---|---|
| CP-02 | 5 MP | NF5 gold pedestal, external camera and four-line, two-column LED display |
| CP-01 | 5 MP | Pedestal terminal and four-line LED display |

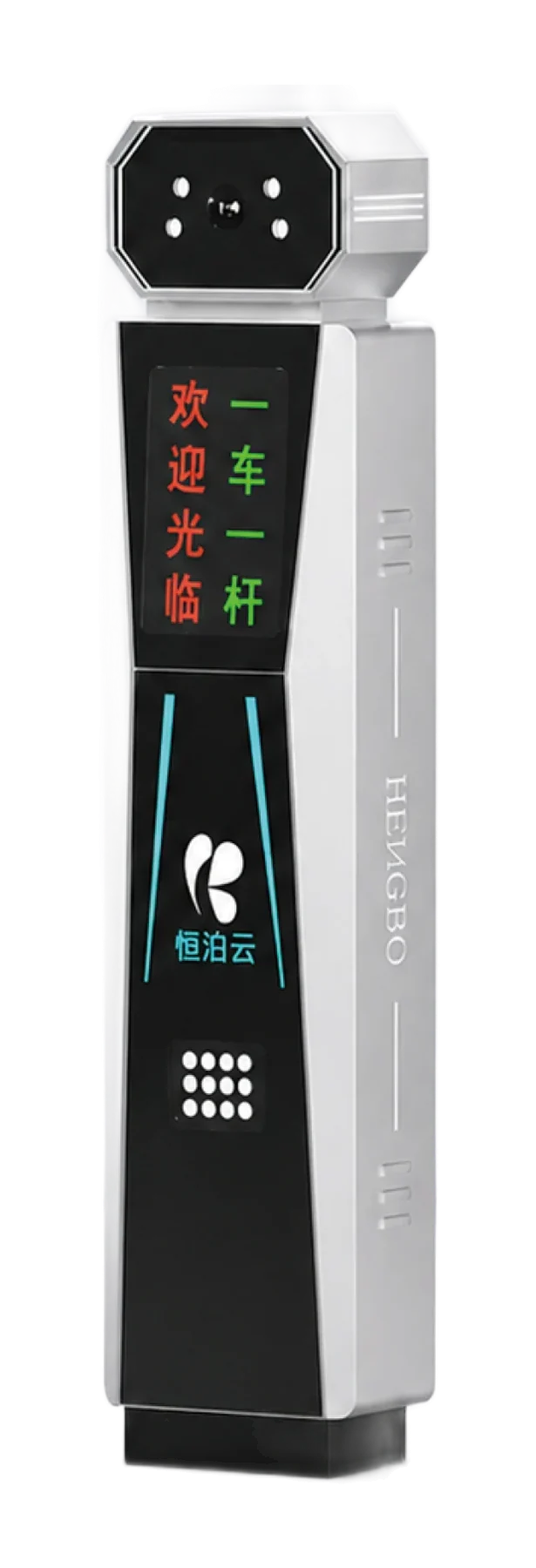

| CP-15 | 5 MP | LED display and integrated illumination |

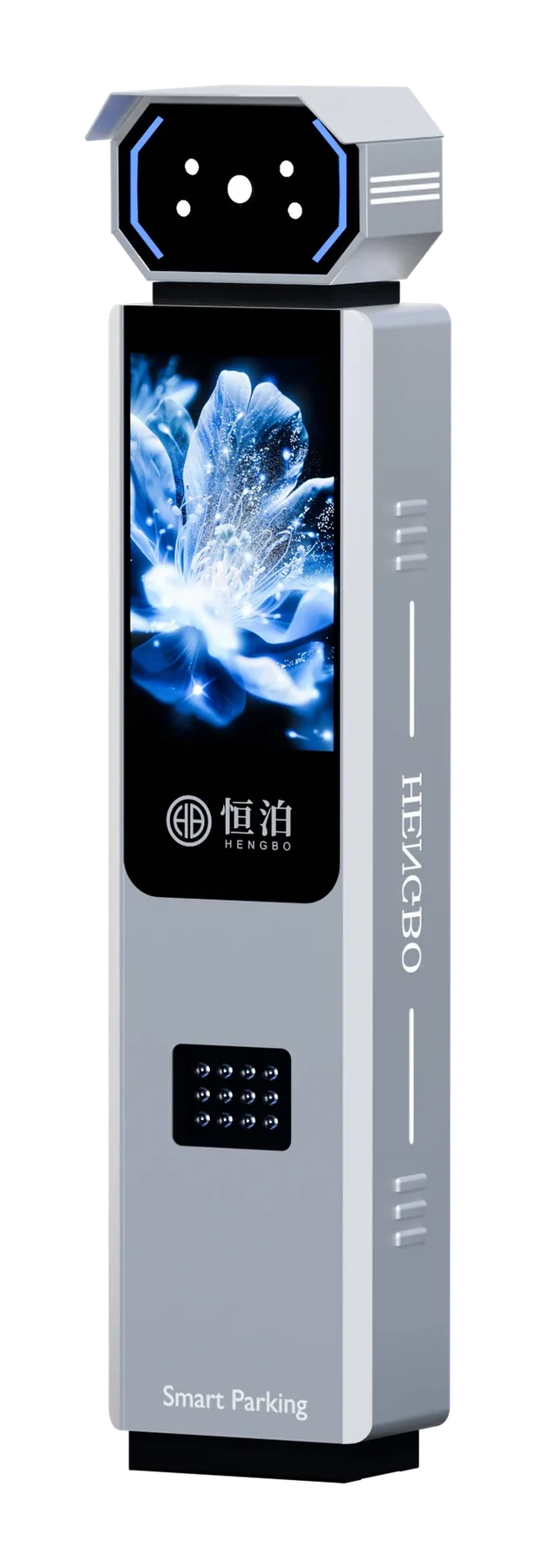

| CP-16 | 5 MP | 18.5-inch LCD or LED display variant; AC 220 V supply |
| HB-C01 | 5 MP | 10.1-inch LCD display |
Cabinet dimensions are equipment references, not lane widths or foundation dimensions. Ask for the drawing for your chosen model before installation.
PLAN YOUR LANE
Start with your site.
A few site details help define the equipment, placement and controls. Share photographs or a marked plan with your enquiry.
The approach to the camera
Share the destination country, plate formats and the direction vehicles approach from. Recognition coverage and camera placement need to be confirmed for that setting.
Country · Plate formats · Vehicle approachThe installation conditions
Show where the cabinets will stand, together with the available power and network connections. Foundation, fixing and cable requirements are confirmed with the equipment drawing.
Cabinet positions · Power · Network · FoundationsThe access and safety controls
Explain who can enter, how visitors are handled and which management system you use. Integration, vehicle detection and closing protection are agreed for the final configuration.
Access rules · Integration · Vehicle detectionPRODUCT QUESTIONS
Before you specify a system.
Can I combine different ANPR terminals and barriers?
The ANPR terminals and barrier gates in this range can be paired across models. Choose each device independently, then share the lane layout, destination country and control requirements so the final configuration can be specified.
Will the ANPR terminal read number plates in my country?
Please share the destination country and representative plate formats. Supported plate formats and the recognition configuration must be checked before the equipment is specified.
Can it connect to our existing access or parking system?
Send the system name and the interface requirements or technical documentation. Integration support is checked against the selected devices and your existing system.
Which dimensions are needed for a quotation?
Send the clear lane width, available cabinet space, overhead clearance and the number of entry and exit lanes. Site photographs or a marked plan help us review the layout; final installation dimensions depend on the chosen equipment.
What is included in the system quotation?
The quotation identifies the terminal, barrier and any agreed controls or accessories. Please include your requirements for detection, software and installation documents so the scope can be confirmed together.
YOUR PROJECT
Request a system quotation.
Share the destination country, lane dimensions, quantities and access requirements.
Complete vehicle access systemCP-16 + DZ-73CLCD display · Straight arm
