A single-leaf sliding gate with ground-running wheels, a stainless-steel drive rack and aluminium main beams. P-01 offers open vertical bars or screened infills for a clearly defined vehicle entrance.

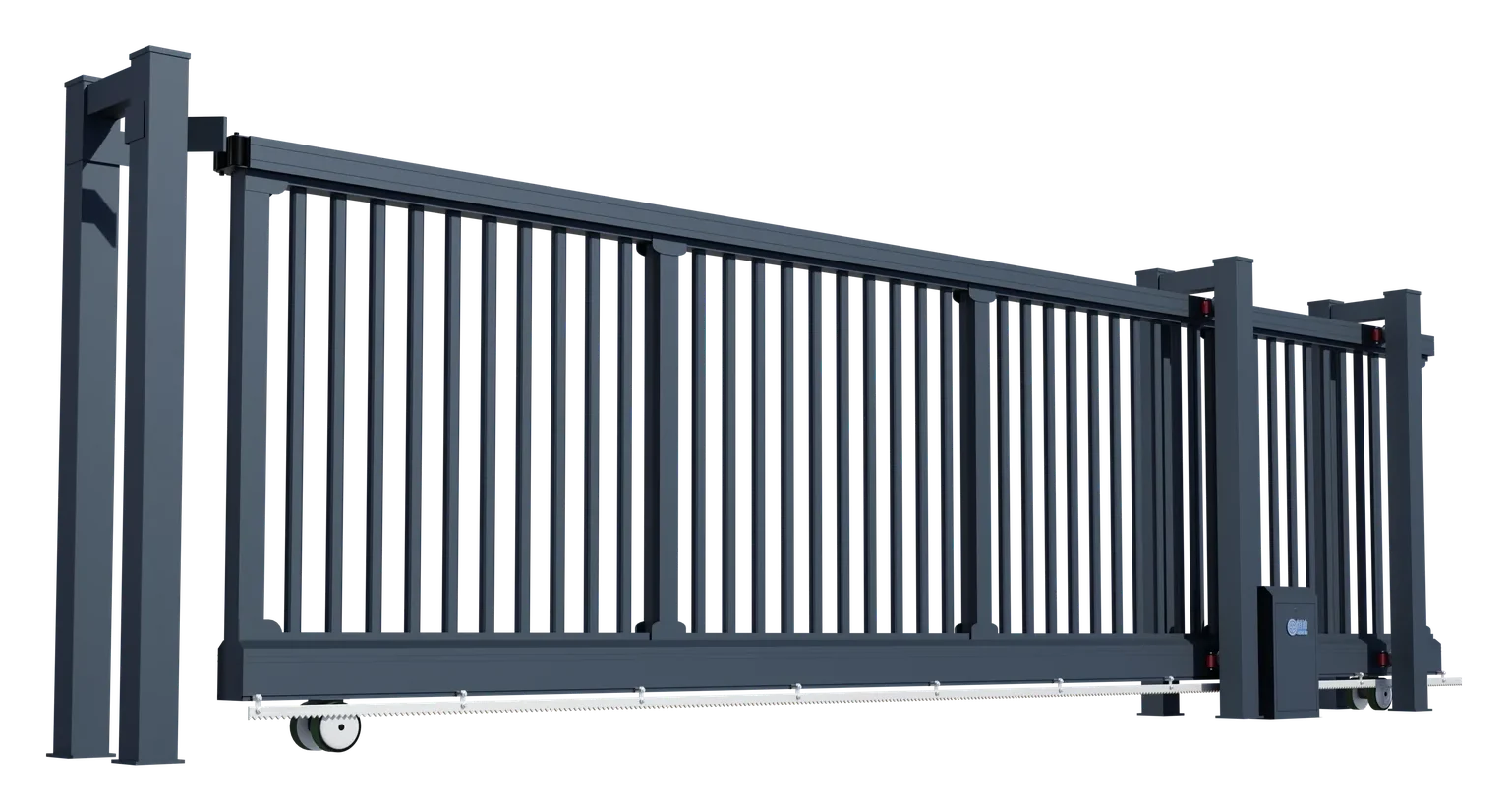

Open vertical infill with the original rack, ground wheels and fixed guides.
Shown colour. Custom colours on request.
STRUCTURE & MATERIALS
The upper aluminium beam measures 120 × 80 × 2 mm and the lower beam 150 × 160 × 3 mm. Main stainless-steel uprights are 80 × 80 × 2 mm; the open infill uses 50 × 27 × 1.5 mm aluminium members.

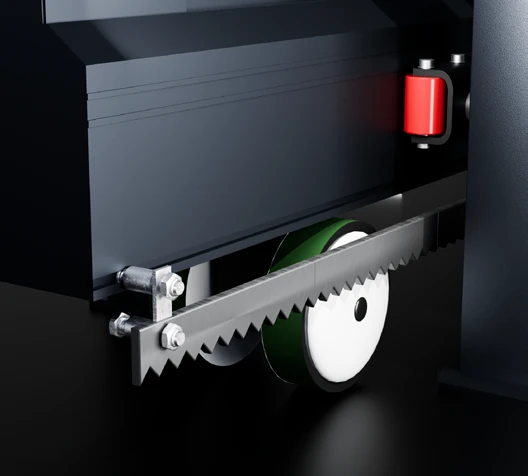

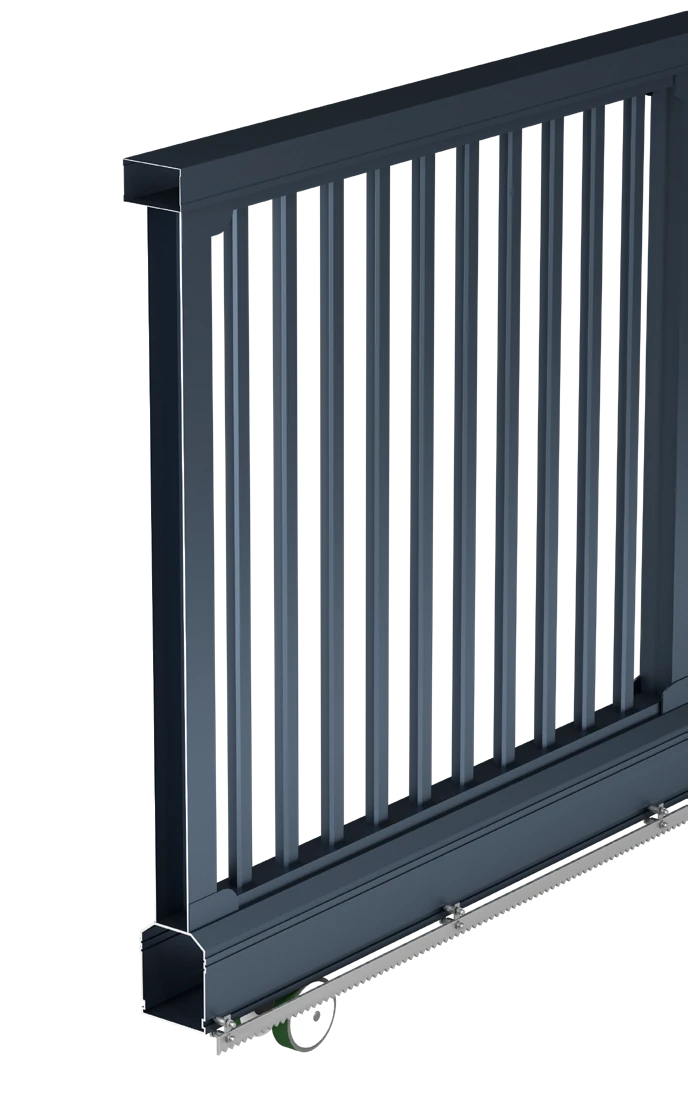

The original close-up shows the toothed rack beside a ground-running wheel. The track and drive line must remain aligned along the full travel path.

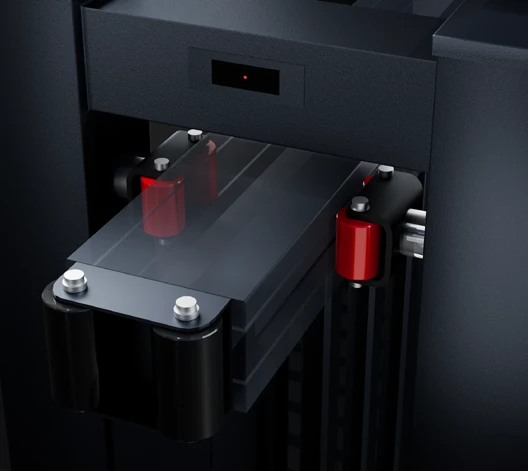

The upper guide assembly controls side movement as the leaf passes the fixed frame. Keep the guide position and side clearance in the installation drawing.

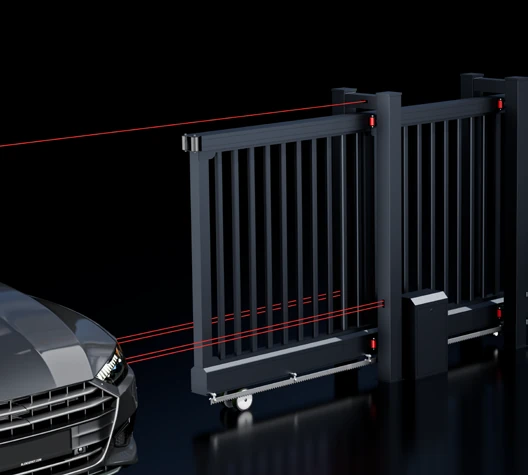

The catalogue identifies infrared sensing above the gate and across the approach. Red beam paths in the illustration explain sensing zones; devices and operating response are specified with the controller.
TECHNICAL DETAILS
Plan the complete side return, level track, fixed guides and rack alignment.

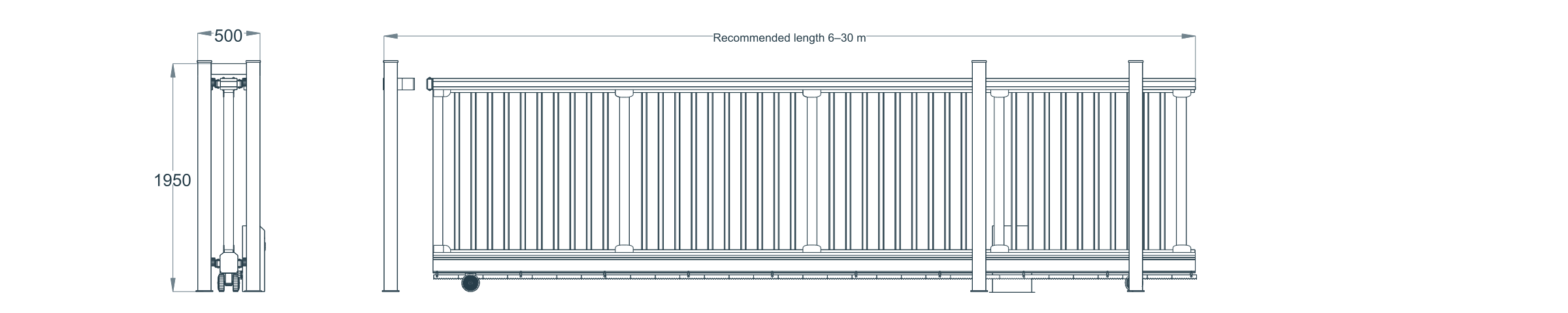

The drawing gives a 1950 mm fixed-frame height and 500 mm width, with a 1600 mm reference gate height. Check track continuity, ground levels, drainage and the full side retraction area before manufacture.
| Parameter | Specification |
|---|---|
| Reference gate height | 1600 mm |
| Upper beam | 120 × 80 × 2.0 mm, aluminium alloy |
| Main upright | 80 × 80 × 2.0 mm, stainless steel |
| Intermediate upright | 50 × 27 × 1.5 mm, aluminium alloy |
| Lower beam | 150 × 160 × 3.0 mm, aluminium alloy |
| Drive rack | Stainless steel |
| Reference fixed frame | 1950 mm high × 500 mm wide |
| Gate length | Custom |
Select the access and protection equipment with your gate. Included devices, interfaces and operating response are confirmed in the quotation.
PRODUCT QUESTIONS
P-01 is a ground-running sliding gate. Its own product drawing shows wheels and its description specifies track transmission; plan a suitable travel surface and track arrangement.
The side space must accommodate the whole moving leaf, its guides and its drive arrangement. Send a plan showing the wall, posts and available retraction length for review.

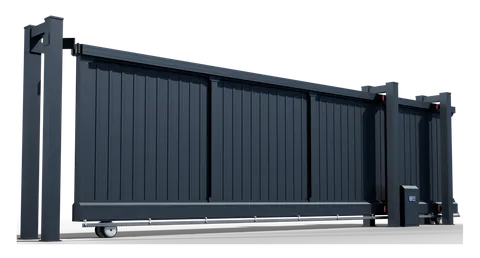

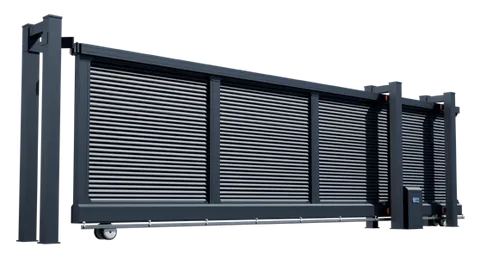

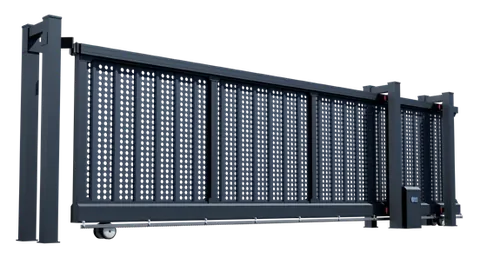

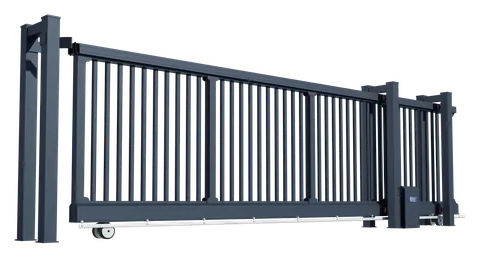

The selector shows the corresponding original P-01 views for each infill. Vertical bars preserve views through the opening; solid panels provide an enclosed appearance.
YOUR PROJECT
Share your clear opening, gate height, ground levels and available space for the P-01. Your selected style is included in the enquiry.
