HYDRAULIC ACCESS CONTROL

LZ-052 Illuminated Graphic Bollard

A hydraulic rising bollard with a translucent PMMA graphic body and protective rings. Its illuminated appearance brings a decorative treatment to a 600 mm rising vehicle-control post.

Rise: 600 mm
Post diameter: 205 mm
Operation: Hydraulic

LZ-052 original catalogue product artwork

HYDRAULIC ACCESS CONTROL

Above ground. Below ground.

The rising post, drive and buried housing work together. Specify the rise and the installation below the finished surface as separate dimensions.

CONSTRUCTION

From the visible post to the buried assembly.

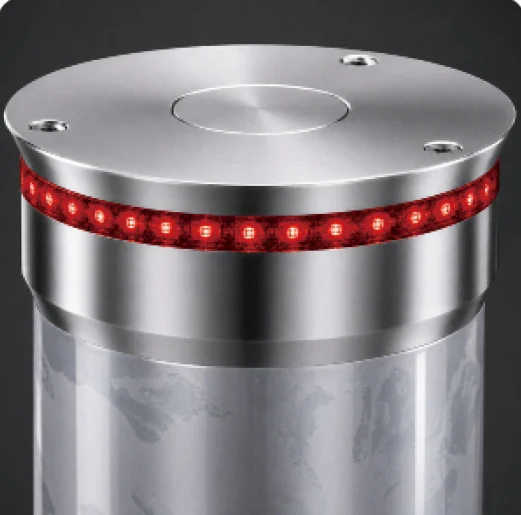

Light around the top

The red LED ring runs around the cap to make the top of the bollard visible.

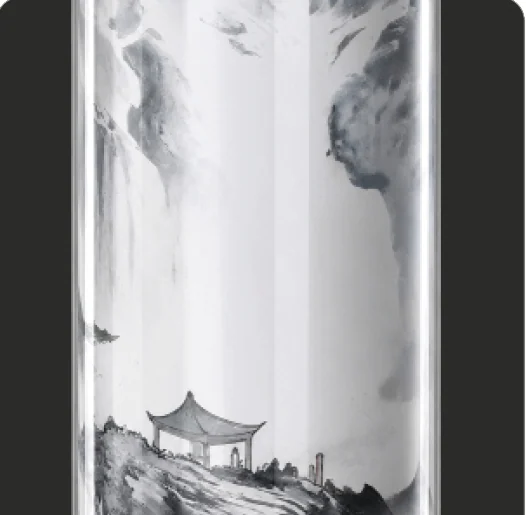

A graphic surface

The PMMA body carries a decorative graphic. A project-specific graphic can be requested for this model.

Guided at ground level

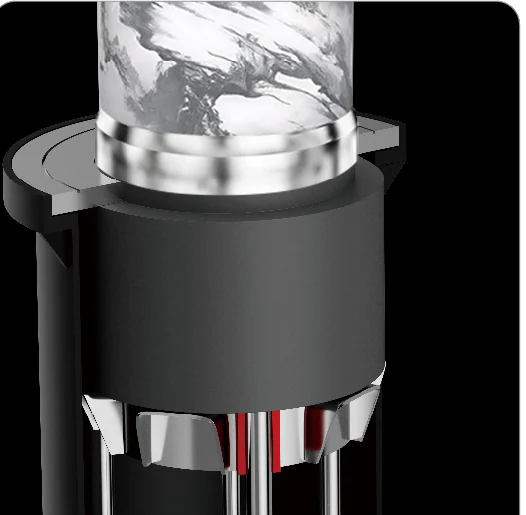

The original sectional view shows the guide collar around the moving post where it enters the buried housing.

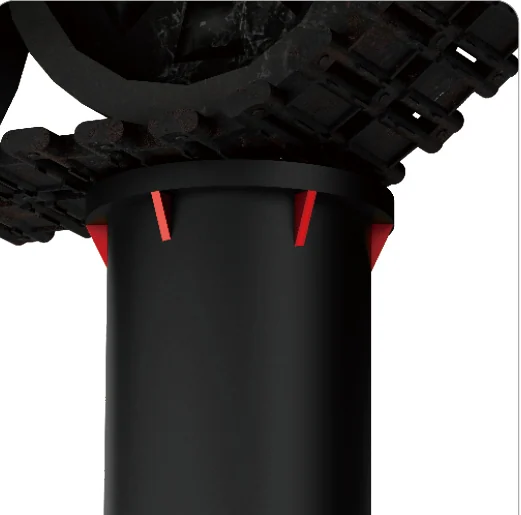

Housing and flange

The lower assembly sits below the finished road surface, with a flange at ground level.

DIMENSIONS & INSTALLATION

Plan below the finished surface.

Check the buried housing, foundation, drainage and electrical route against the installation drawing.

DIMENSIONS

Plan the rise and the space below ground.

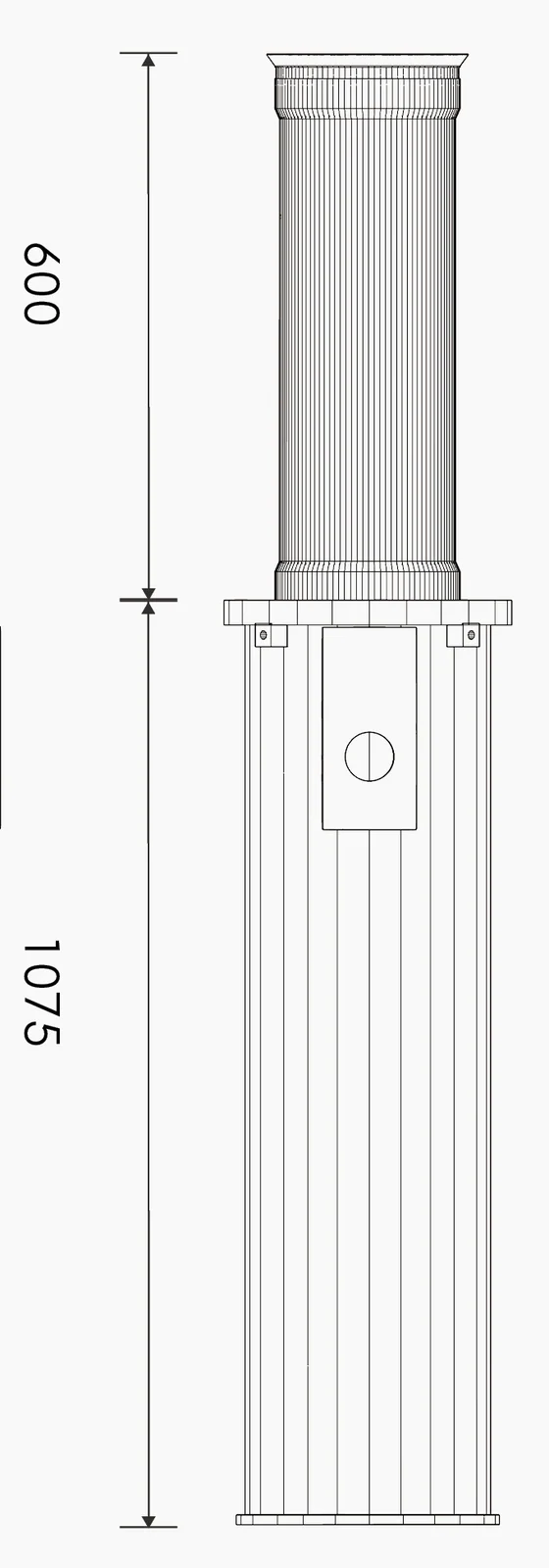

LZ-052 original elevation showing rise and buried housing

600 mm above the finished surface

The drawing shows the raised post and the 1,075 mm below-ground assembly. Allow for the complete below-ground assembly in the entrance design; the catalogue illustration is a product reference rather than a civil-works drawing.

Product specifications

LZ-052 specifications
Parameter	Specification
Operation	Electrohydraulic
Post diameter	205 mm
Rise	600 mm
Post material	A3 carbon steel; aluminium-alloy protective ring; PMMA graphic body
Wall or layer thickness	6 mm metal + 5 mm PMMA + 10 mm protective ring
Buried housing	1,075 mm catalogue embedment depth
Supply	220 V
Raising time	4 s
Lowering time	2 s
Ingress protection	IP68 — catalogue specification
Operating temperature	−35°C to +75°C

PRODUCT QUESTIONS

Planning with LZ-052.

How much space is needed below the road?

The model is shown with a 1,075 mm below-ground assembly. This is the product assembly dimension; excavation, foundation, drainage and service access need a site-specific installation plan.

Can the graphic be customised?

Yes. The product description identifies the PMMA body as suitable for customised graphics. Supply the artwork and confirm the layout before manufacture.

Is an impact-test rating stated?

No tested impact classification is stated in this catalogue. If your project needs a particular crash rating, request the corresponding test evidence before specifying the equipment.

What should I include in the enquiry?

Include LZ-052, the required quantity, spacing, destination, finished surface level and any limitations on the available depth. Add the control requirements for your entrance.

YOUR PROJECT

Plan your LZ-052 installation.

Share the number of posts, spacing, finished ground level and drainage conditions.

LZ-052 Illuminated Graphic Bollard
