PERMANENT BOUNDARY
A fixed 304 stainless-steel bollard for a permanent vehicle boundary. The embedded base is set into the ground and reinforced with concrete, leaving the polished 600 mm post visible above the surface.
PERMANENT BOUNDARY
The post is anchored through its embedded base and remains in place. Its foundation and the finished paving form part of the installation.
FIXED INSTALLATION

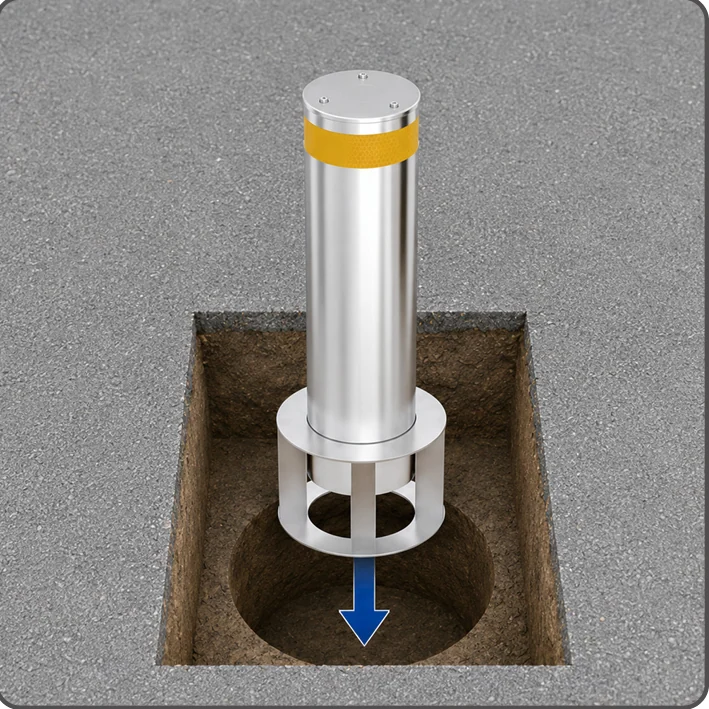

The open lower frame is positioned below the finished surface as part of the foundation.

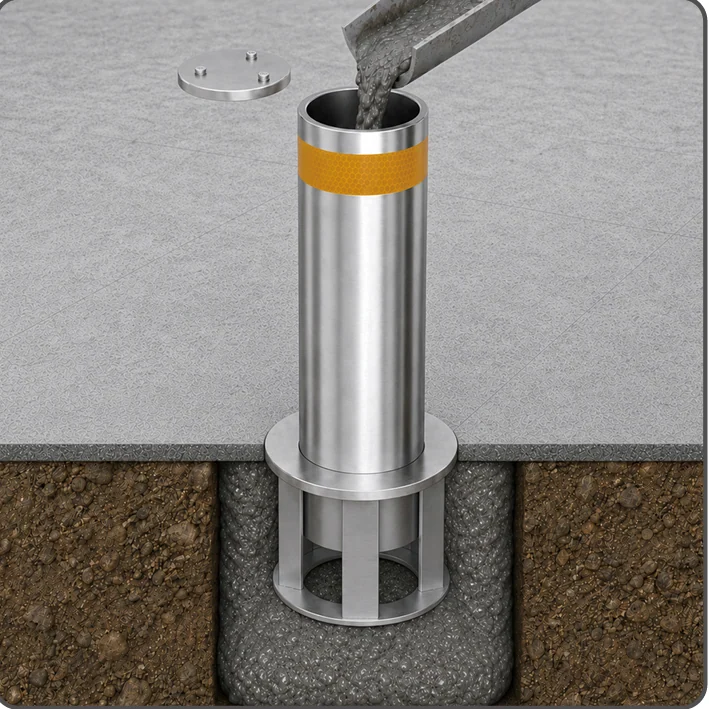

The catalogue sequence shows concrete being poured into the post/base assembly. Foundation design and concrete specification are project-specific.

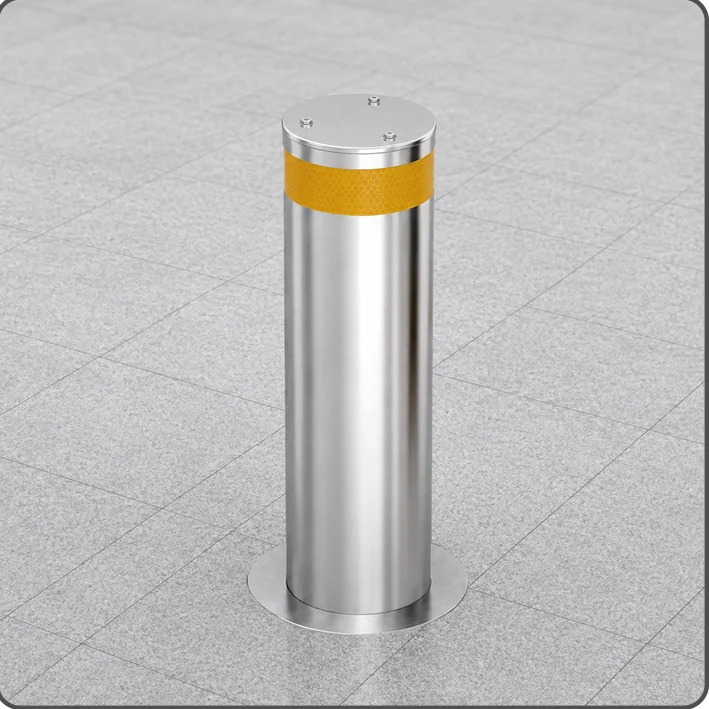

Paving is completed around the installed post. The reflective band remains visible near the cap.
DIMENSIONS & INSTALLATION
The post height is measured above the finished surface. Foundation design, concrete and fixing details are confirmed for the site.
INSTALLATION REFERENCE
The post stands 600 mm above the finished surface. The open base is embedded in the foundation; concrete and footing dimensions are specified for the site.
| Parameter | Specification |
|---|---|
| Operation | Fixed post |
| Diameter | 219 ± 0.3 mm |
| Post height | 600 mm |
| Wall thickness | 6 ± 0.3 mm |
| Material | 304 stainless steel |
| Surface | Polished stainless steel |
PRODUCT QUESTIONS
LZ-029 is specified as a fixed post. Use a removable or rising model where vehicle access needs to be opened.
No powered operation is specified. The illustrated installation is a fixed stainless-steel post with a concrete-embedded base.
The catalogue does not provide a complete foundation specification. Share the site ground conditions and layout so the installation can be checked before construction.
YOUR PROJECT
Share the post spacing, perimeter layout, ground construction and finish requirements.
