LZ-028 Removable Bollard

A removable 304 stainless-steel post for entrances that need occasional vehicle access. Unlock the post, lift it out by its top handle, and close the ground socket while the route is open.

Operation: Manual removal
Post diameter: 219 mm
Post height: 600 mm

LZ-028 original catalogue product artwork

MANUAL REMOVAL

Lift the post. Release the route.

The post unlocks and lifts out of its ground socket. The open route has a covered socket, while the removed post needs a suitable storage position.

MANUAL ACCESS

Unlock. Lift out. Open the route.

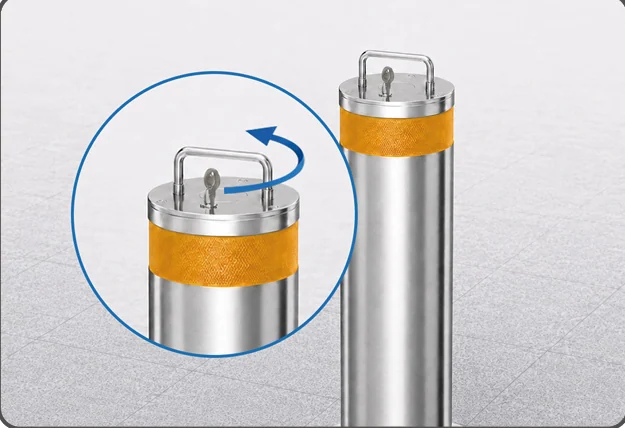

LZ-028 original removal sequence: step 1

Release the post

Turn the key to release the removable post from its ground socket.

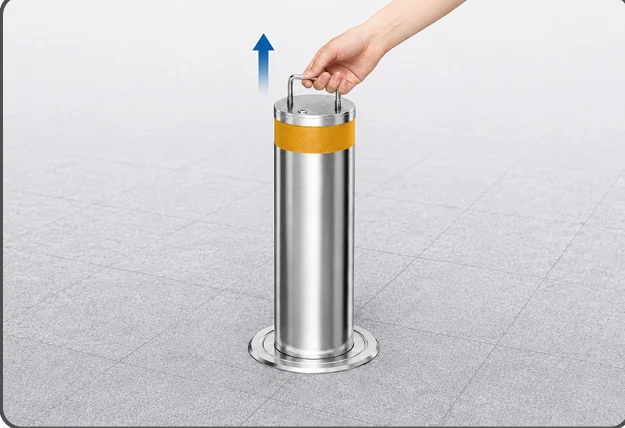

LZ-028 original removal sequence: step 2

Use the lifting handle

The handle folds up from the top of the post. Allow for the approximately 35 kg post when planning manual handling.

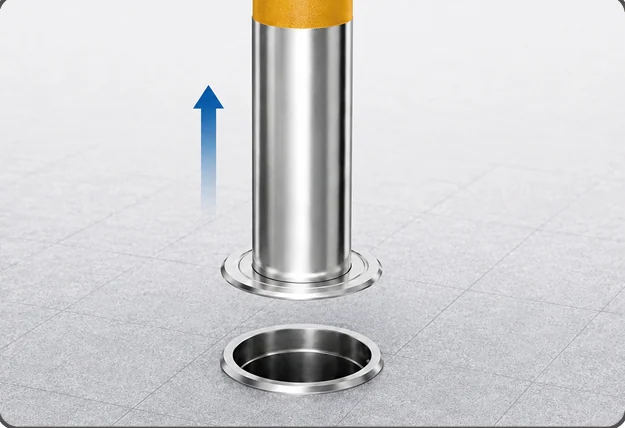

LZ-028 original removal sequence: step 3

Remove the complete post

Lift the post clear of its socket and place it in a suitable storage position.

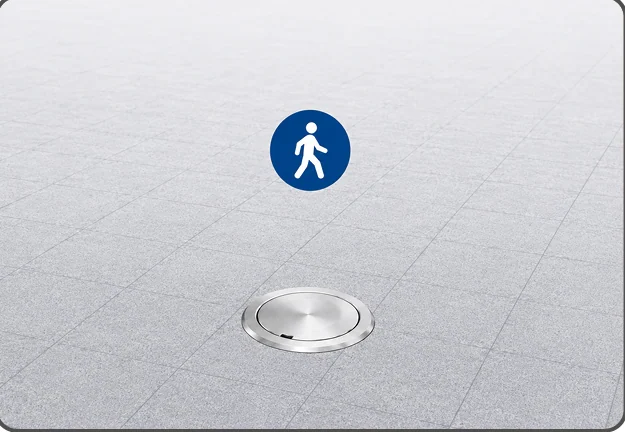

LZ-028 original removal sequence: step 4

Close the socket

The source sequence shows a covered socket while the route is open.

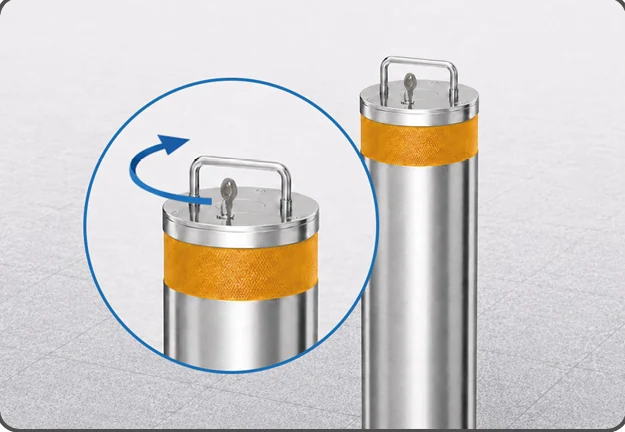

LZ-028 original removal sequence: step 5

Refit and lock

Return the post to its socket and lock it in position when access is no longer needed.

DIMENSIONS & INSTALLATION

The post and socket have different roles.

Check the socket embedment, finished ground level, manual handling and the storage position for each removed post.

DIMENSIONS

A 600 mm post with a shallow socket.

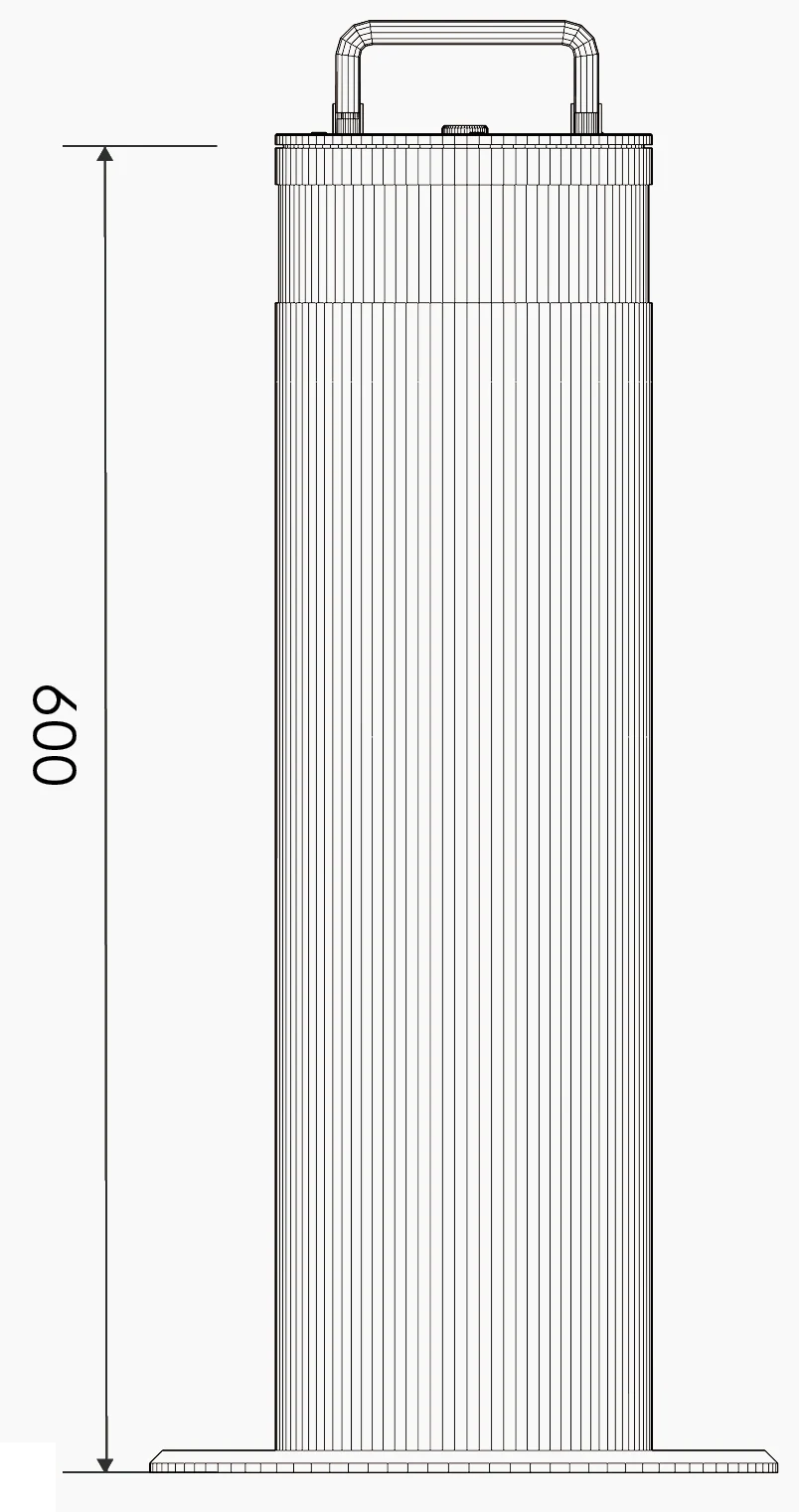

LZ-028 original side elevation with 600 mm post height

Post and socket are separate

The 219 mm diameter post stands 600 mm above the finished surface. The catalogue specifies 160 mm socket embedment; site preparation and fixing details are checked separately.

Product specifications

LZ-028 specifications
Parameter	Specification
Operation	Manual removal
Post diameter	219 mm
Post height	600 mm
Wall thickness	6 mm
Material	304 stainless steel
Socket embedment	160 mm
Weight	Approximately 35 kg

PRODUCT QUESTIONS

Planning with LZ-028.

Does LZ-028 rise automatically?

No. LZ-028 is a manually removable post. It is unlocked with a key and physically lifted out of the socket.

How much does the post weigh?

The catalogue gives an approximate weight of 35 kg. Plan how the post will be handled and stored when the route is open.

What happens to the opening after removal?

The operating sequence shows the ground socket covered after the post has been removed. Confirm the socket and cover arrangement with the supplied assembly.

What should I provide for a quotation?

Send the number of LZ-028 posts, required spacing, finished ground level and photographs or a plan of the route. Include how frequently the posts will be removed.

YOUR PROJECT

Plan your LZ-028 installation.

Share the post quantity, spacing, available storage and ground construction.
