HYDRAULIC ACCESS CONTROL

LZ-025 Copper-Finish Hydraulic Bollard

A hydraulic bollard with a copper-plated 304 stainless-steel post and engraved decorative pattern. The 600 mm rise combines the bronze-toned finish with a top warning-light ring.

Rise: 600 mm
Post diameter: 219 mm
Operation: Hydraulic

LZ-025 original catalogue product artwork

HYDRAULIC ACCESS CONTROL

Above ground. Below ground.

The rising post, drive and buried housing work together. Specify the rise and the installation below the finished surface as separate dimensions.

CONSTRUCTION

From the visible post to the buried assembly.

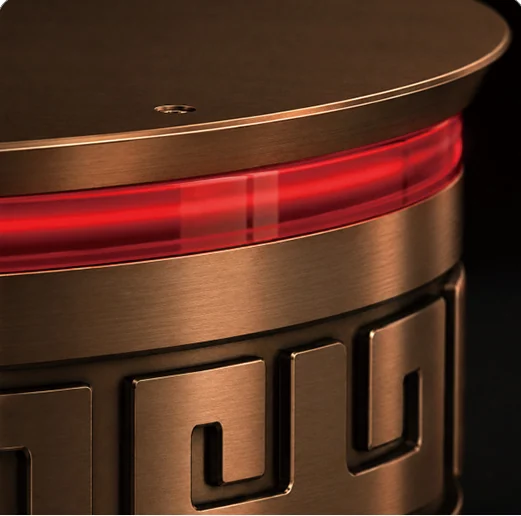

Light around the top

The red LED ring runs around the cap to make the top of the bollard visible.

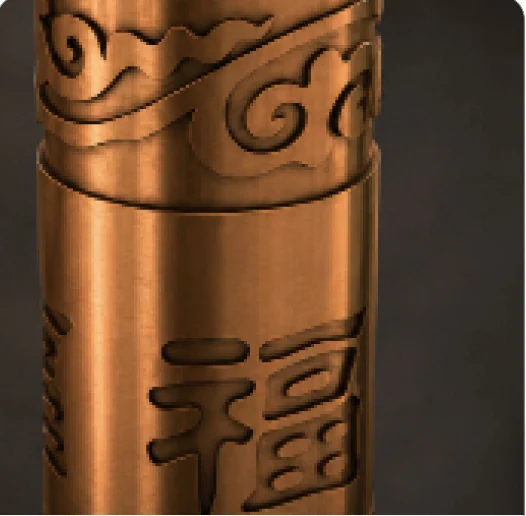

Copper-plated finish

The engraved post has a copper-plated surface over 304 stainless steel. The finish and pattern define this model’s appearance.

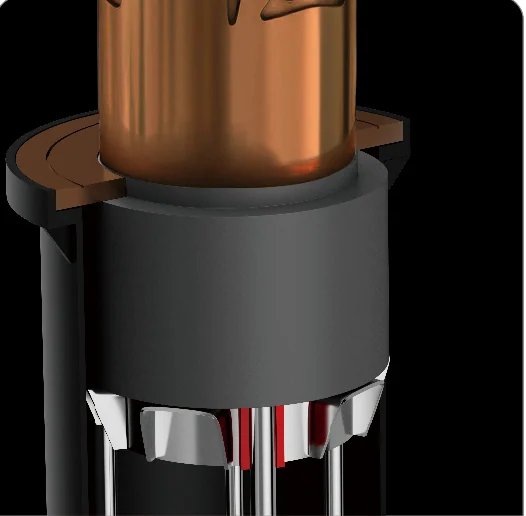

Guided at ground level

The original sectional view shows the guide collar around the moving post where it enters the buried housing.

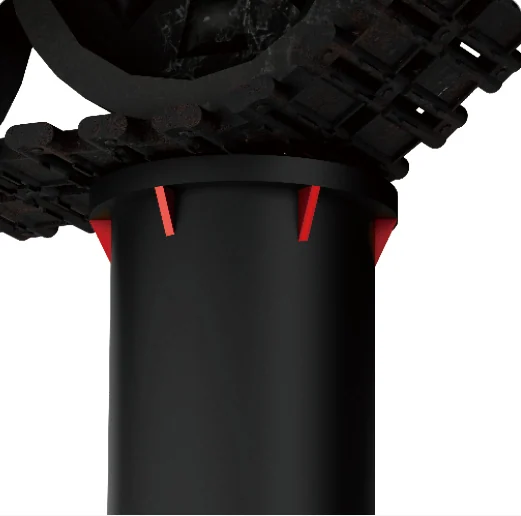

Housing and flange

The lower assembly sits below the finished road surface, with a flange at ground level.

DIMENSIONS & INSTALLATION

Plan below the finished surface.

Check the buried housing, foundation, drainage and electrical route against the installation drawing.

DIMENSIONS

Plan the rise and the space below ground.

Decorative engraving is shown in the original catalogue drawing. English lettering or a different motif can be specified; confirm the artwork before manufacture.

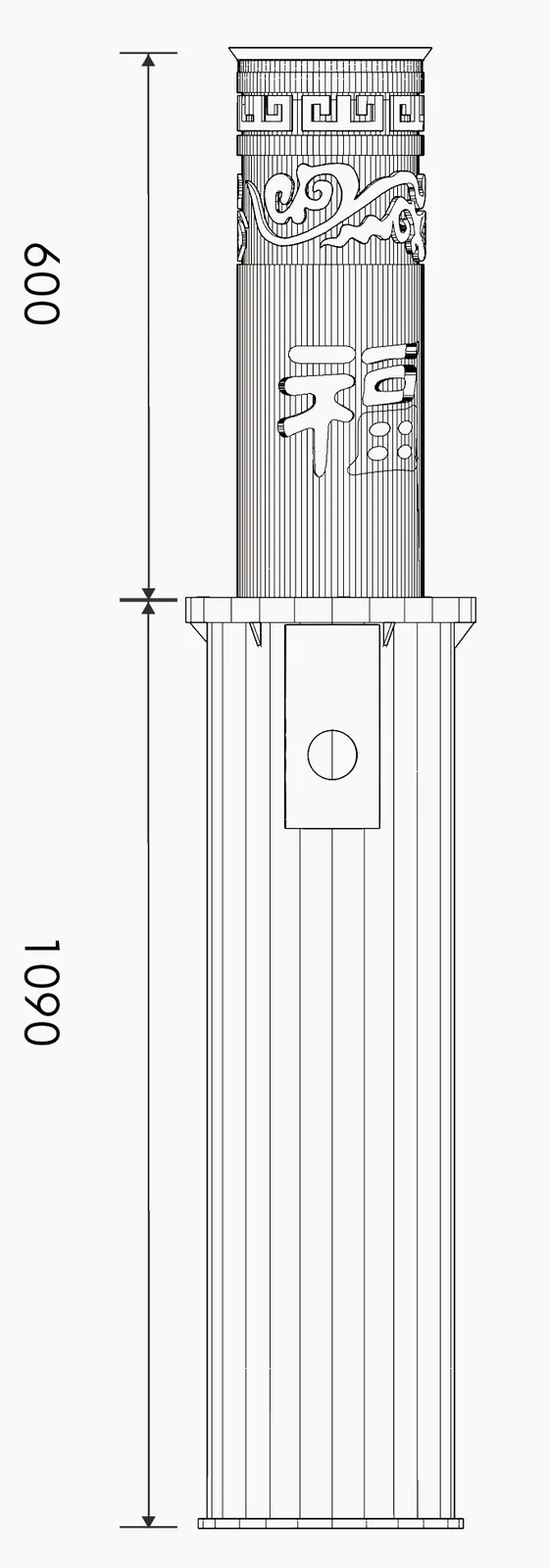

LZ-025 original elevation showing rise and buried housing

600 mm above the finished surface

The drawing shows the raised post and the 1,090 mm buried housing. Allow for the complete below-ground assembly in the entrance design; the catalogue illustration is a product reference rather than a civil-works drawing.

Product specifications

LZ-025 specifications
Parameter	Specification
Operation	Electrohydraulic
Post diameter	219 mm
Rise	600 mm
Post material	Copper-plated 304 stainless steel
Wall or layer thickness	8 mm
Buried housing	Ø350 × 1,090 mm
Supply	220 V
Weight	Approximately 70 kg
Raising time	4 s
Lowering time	2 s
Ingress protection	IP68 — catalogue specification
Operating temperature	−35°C to +75°C

PRODUCT QUESTIONS

Planning with LZ-025.

How much space is needed below the road?

The model is shown with a 1,090 mm buried housing. This is the product assembly dimension; excavation, foundation, drainage and service access need a site-specific installation plan.

Is the post made from solid copper?

No. The model table specifies 8 mm 304 stainless steel with a copper-plated surface.

Is an impact-test rating stated?

No tested impact classification is stated in this catalogue. If your project needs a particular crash rating, request the corresponding test evidence before specifying the equipment.

What should I include in the enquiry?

Include LZ-025, the required quantity, spacing, destination, finished surface level and any limitations on the available depth. Add the control requirements for your entrance.

YOUR PROJECT

Plan your LZ-025 installation.

Share the number of posts, spacing, finished ground level and drainage conditions.
