HYDRAULIC ACCESS CONTROL
An integrated hydraulic bollard with a 219 mm stainless-steel post and a 600 mm rise. Its shallow buried housing suits entrances where the available depth must be checked carefully.
HYDRAULIC ACCESS CONTROL
The rising post, drive and buried housing work together. Specify the rise and the installation below the finished surface as separate dimensions.
CONSTRUCTION

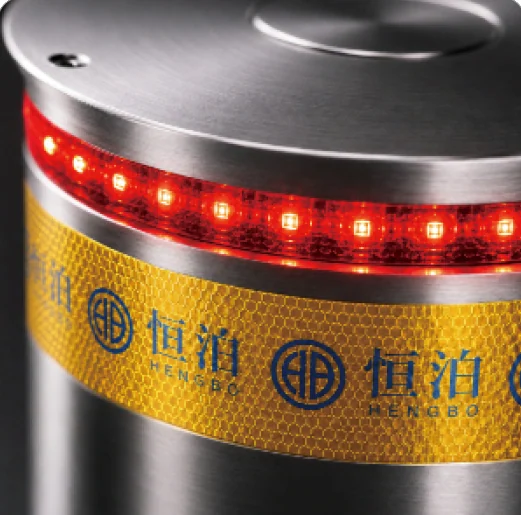

The red LED ring runs around the cap to make the top of the bollard visible.

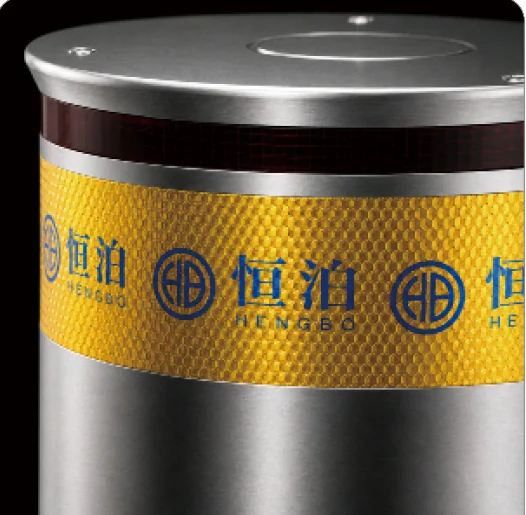

A reflective band marks the upper part of the stainless-steel post.

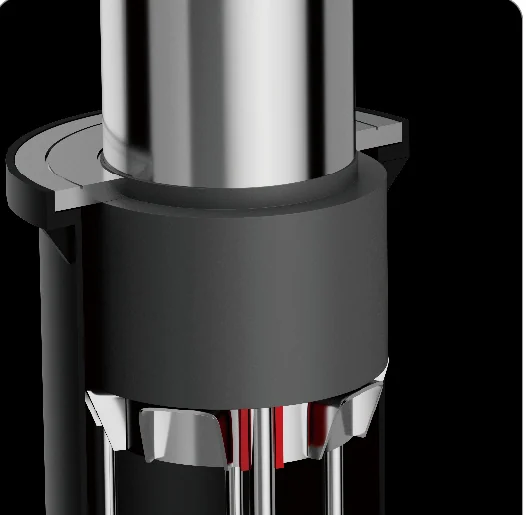

The original sectional view shows the guide collar around the moving post where it enters the buried housing.

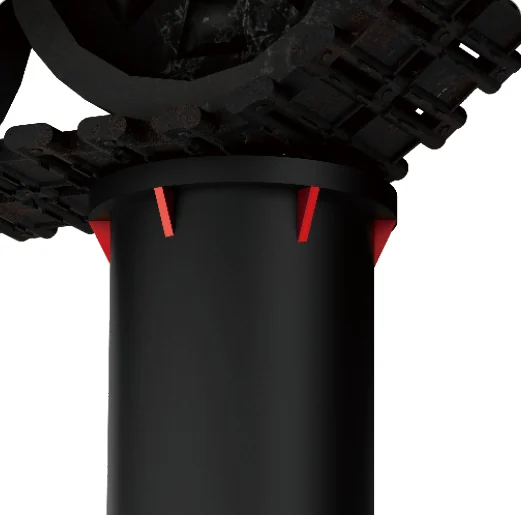

The lower assembly sits below the finished road surface, with a flange at ground level.
DIMENSIONS & INSTALLATION
Check the buried housing, foundation, drainage and electrical route against the installation drawing.
DIMENSIONS

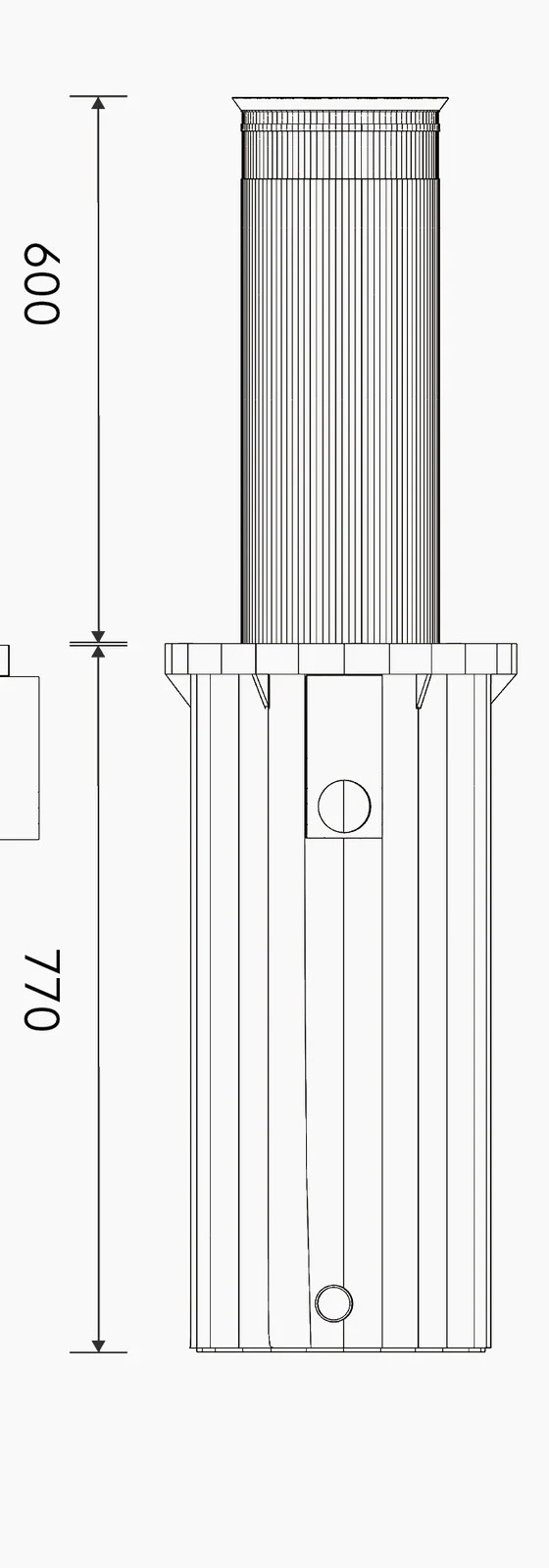

The drawing shows the raised post and the 770 mm buried housing. Allow for the complete below-ground assembly in the entrance design; the catalogue illustration is a product reference rather than a civil-works drawing.
| Parameter | Specification |
|---|---|
| Operation | Electrohydraulic |
| Post diameter | 219 mm |
| Rise | 600 mm |
| Post material | 304 stainless steel |
| Wall or layer thickness | 6 ± 1 mm |
| Buried housing | Ø330 × 770 mm |
| Weight | Approximately 50 kg |
| Raising time | 4 s |
| Lowering time | 2 s |
| Ingress protection | IP68 — catalogue specification |
| Operating temperature | −35°C to +75°C |
PRODUCT QUESTIONS
The model is shown with a 770 mm buried housing. This is the product assembly dimension; excavation, foundation, drainage and service access need a site-specific installation plan.
The model table gives 4 seconds to rise and 2 seconds to lower. Confirm the installation and operating settings for your entrance.
No tested impact classification is stated in this catalogue. If your project needs a particular crash rating, request the corresponding test evidence before specifying the equipment.
Include LZ-021, the required quantity, spacing, destination, finished surface level and any limitations on the available depth. Add the control requirements for your entrance.
YOUR PROJECT
Share the number of posts, spacing, finished ground level and drainage conditions.
