L-41 uses square-section uprights and a simple, straight-sided drive head, with amber caps and silver lower wheel covers. This motor-driven aluminium retractable gate is specified at 1600 mm high in the catalogue.
On-screen paint previews are illustrative. The final colour and texture are confirmed in your quotation.Display language can be specified in your quotation.
STRUCTURE & MATERIALS

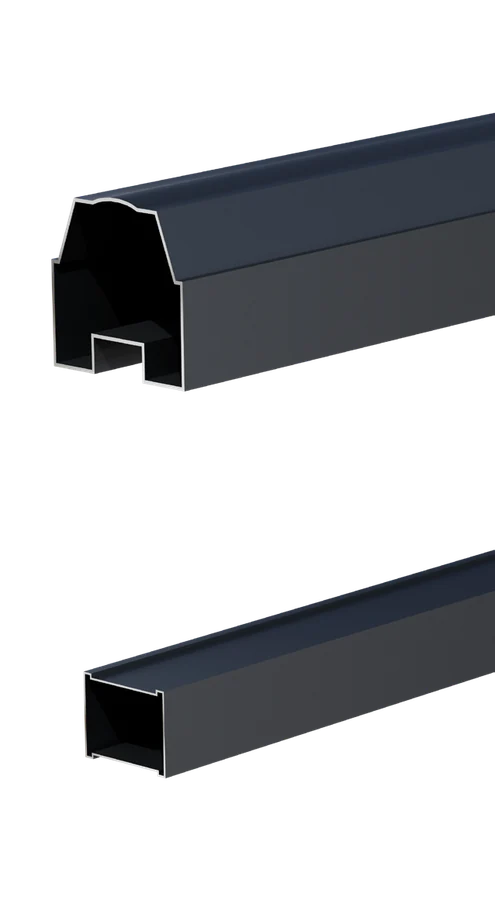

The L-41 main profile is specified at 80 × 80 × 1.0 mm. Its auxiliary profile is 50 × 40 × 0.9 mm. Profile sizes are listed as section dimensions followed by wall thickness. Match the final profile schedule to the specified gate configuration.
LINKS & GROUND SUPPORT

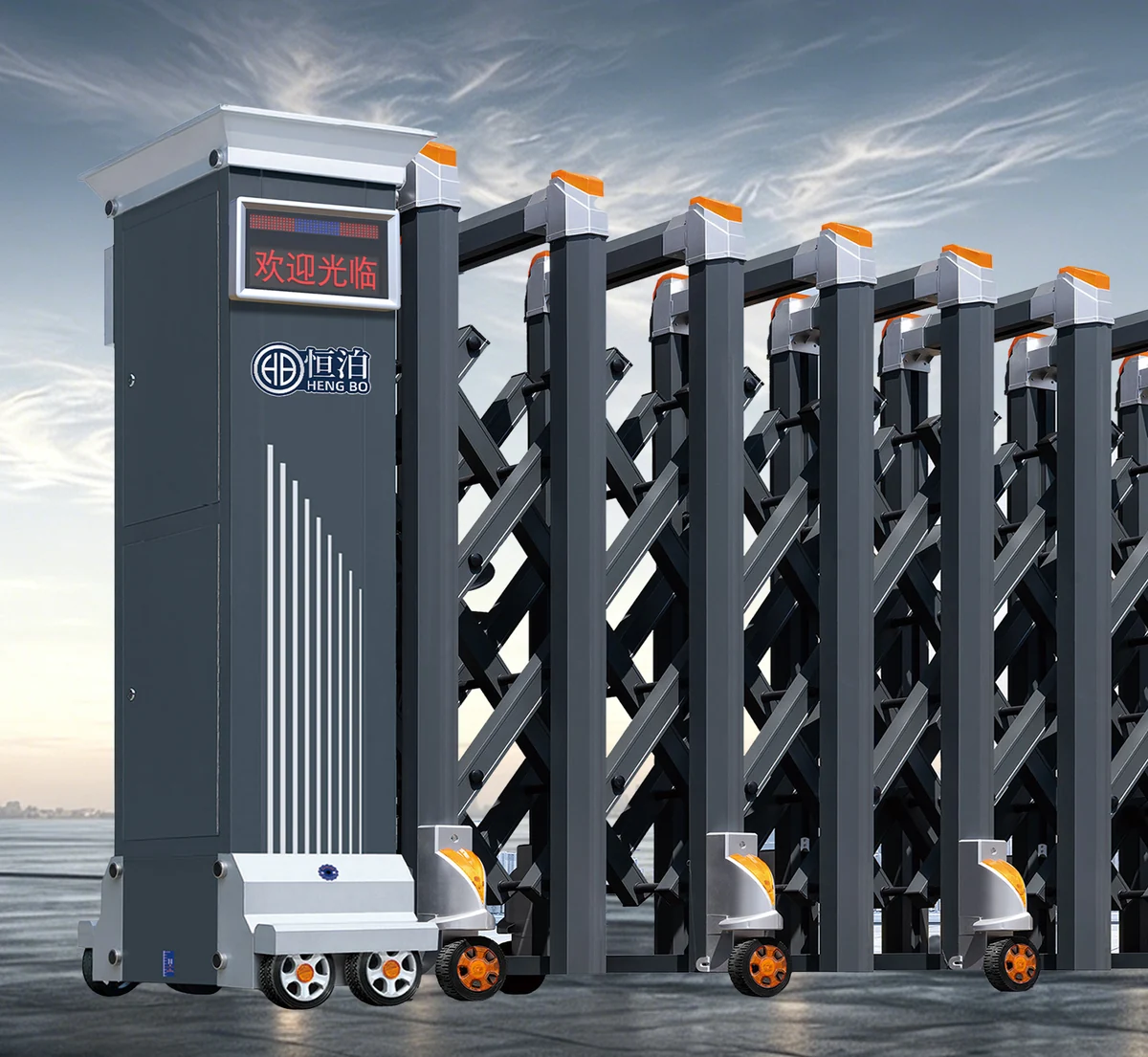

L-41 uses square-section uprights and a simple, straight-sided drive head, with amber caps and silver lower wheel covers. The motor-driven head extends and gathers the linked gate body along the entrance. The uprights and crossed folding links move together while the ground wheels support the moving sections.
TECHNICAL DETAILS
Reference dimensions for L-41. The end-view widths describe the gate body; the vehicle opening and parked length are set out for the site.

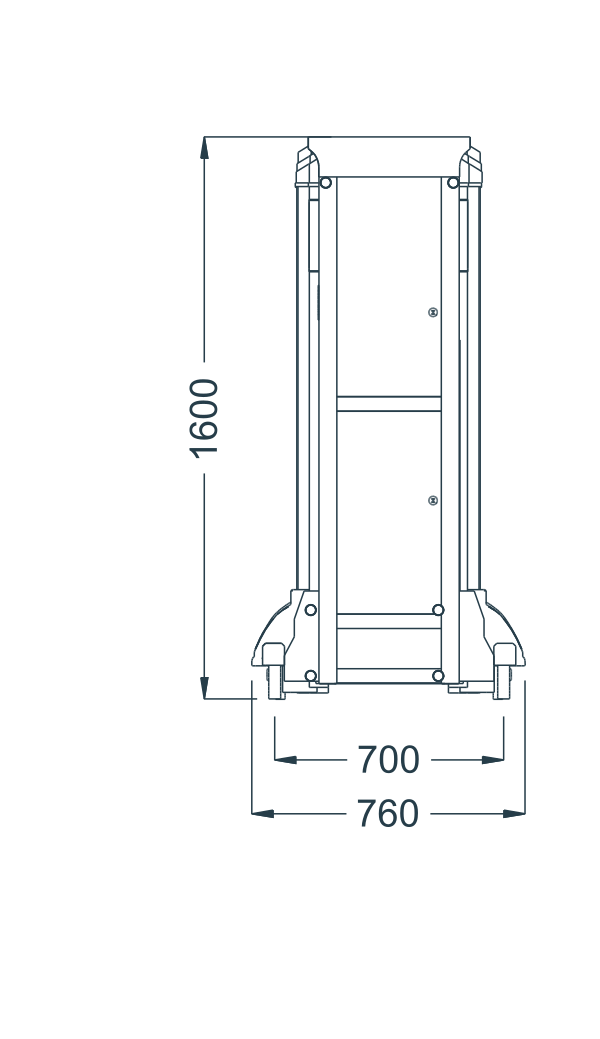

The catalogue drawing gives a height of 1600 mm, an end-view body span of 700 mm and an overall end-view width of 760 mm. These are gate-body dimensions; the clear vehicle opening and the parked length must be set out for the actual site.
Provide the clear vehicle opening, opening direction and space available beside the entrance. The parked length, drive and guidance system are confirmed on the installation drawing.
INSTALLATION LAYOUTS
Compare the clear opening width and space needed for the retracted gate.
The rear of the gate is fixed at the column. The retracted gate occupies part of the entrance opening, reducing the clear opening width.

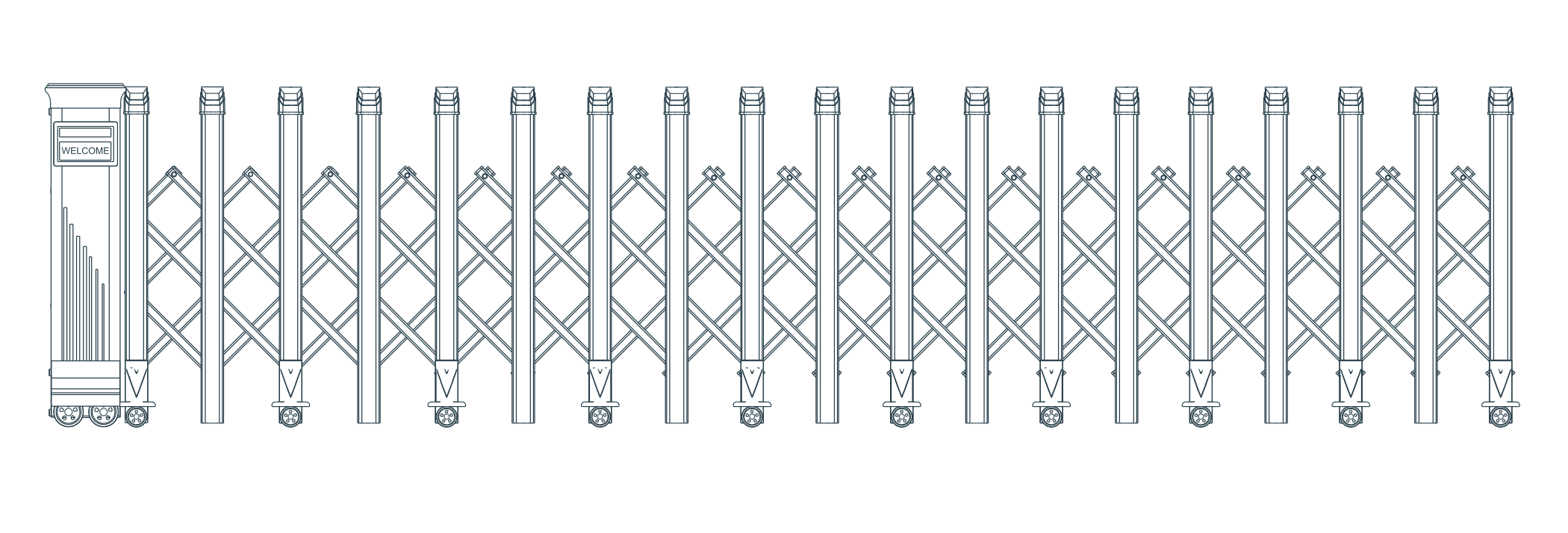

Retracted gate elevation View from inside
The retracted gate sits inside the property, behind the boundary wall and entrance column. Allow space for the gate and clearance from the wall and column.
Retracted gate elevation View from inside
Illustrative layouts, not to scale. Total gate length refers to the fully extended gate, including the drive head. Final dimensions are confirmed for your entrance.
Shared mounting illustration using the Hengchi reference gate. This shows the column relationship; L-41 parked length and foundations are confirmed for the site.
CONTROL & PROTECTION
Shared function illustrations. Select the required equipment with the gate and controller.
Select the sensing equipment and operating response with your controller. The catalogue lists collision protection among the configuration choices; devices and commissioning are confirmed for the order.
Infrared sensing can be specified to signal climbing at the gate. Shared illustration of the principle; sensor position and coverage must suit this model’s height and the selected controller.
A separate recognition terminal can be included in the access design. Confirm destination plate formats, access rules and the interface to the gate controller.
A compatible drive can provide a clutch release for manual movement during a power failure. Confirm availability and the release procedure for the supplied motor. The illustration shows the reference mechanism, not a verified release position on this model.
| Parameter | Specification |
|---|---|
| Frame material | Aluminium |
| Gate height | 1600 mm |
| End-view body span | 700 mm |
| Overall end-view width | 760 mm |
| Main profile | 80 × 80 × 1.0 mm |
| Auxiliary profile | 50 × 40 × 0.9 mm |
Drive power, speed and controller ratings are confirmed for the supplied configuration; no other model's electrical specification is applied.
Catalogue-listed control choices. Devices, controller compatibility and commissioning are specified in the quotation.
PRODUCT QUESTIONS
L-41 uses square-section uprights and a simple, straight-sided drive head, with amber caps and silver lower wheel covers.
The catalogue drawing gives a height of 1600 mm, an end-view body span of 700 mm and an overall end-view width of 760 mm. These are gate-body dimensions; the clear vehicle opening and the parked length must be set out for the actual site. Keep the full travel path and the parked gate area clear. Provide the opening width, pavement condition and proposed opening direction for the installation drawing.
Silver grey, sand grey, red bronze, bronze, hammered black and hammered gold are shown as paint choices. Confirm a physical colour sample and the finish of caps, infill and wheel covers with the order.
The catalogue lists remote control, a mobile app, face recognition, number-plate recognition, card access, loop detection and collision protection. Choose the required devices and controller as part of the project configuration; these functions are not all assumed to be standard.
YOUR PROJECT
Share the required clear opening, gate height, preferred finish and available parking space.
