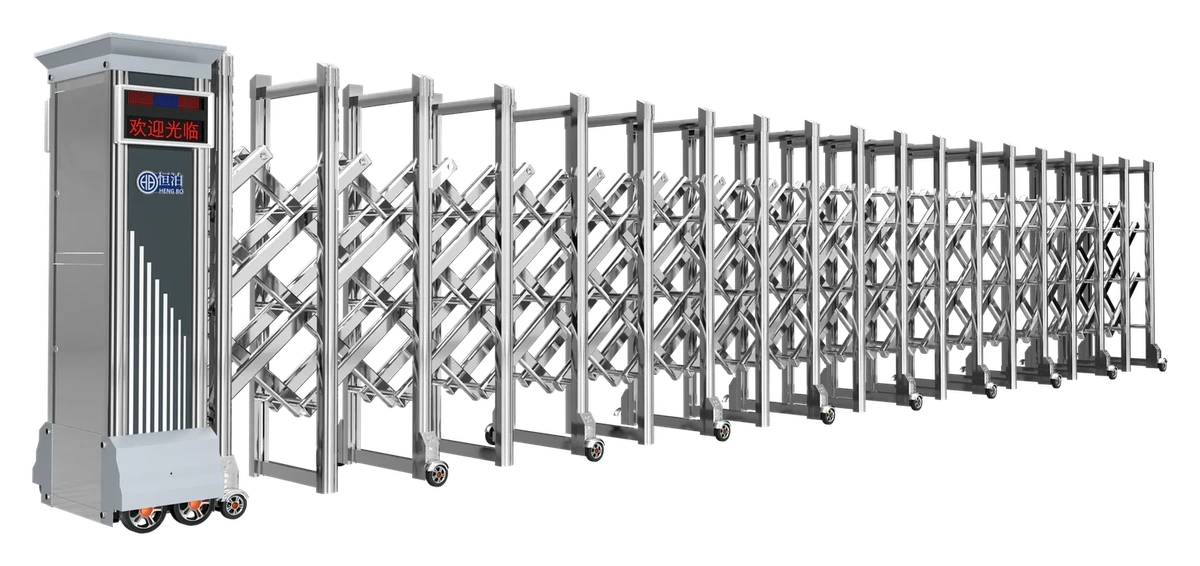

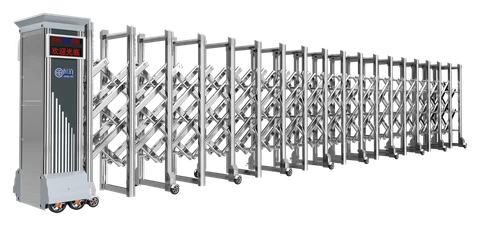

M-28Hengyao Stainless Steel Retractable Gate

Name: M-28 Hengyao Stainless Steel Retractable Gate
Brand: Hengbo

A stainless steel retractable gate with linked scissor sections and ground-running wheels. It extends across the entrance and retracts to one side for vehicle access.

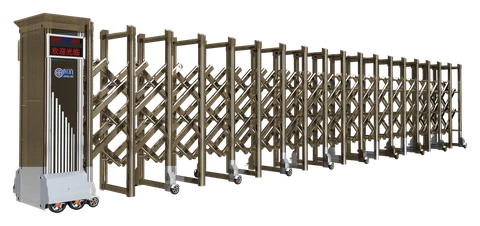

Colour shown

On-screen colours are illustrative. The final paint finish is confirmed in your quotation.

STRUCTURE & MATERIALS

Stainless steel. Linked to move.

Profiled uprights and pivoting scissor links form an open gate body. The linked sections extend and retract on ground-running wheels.

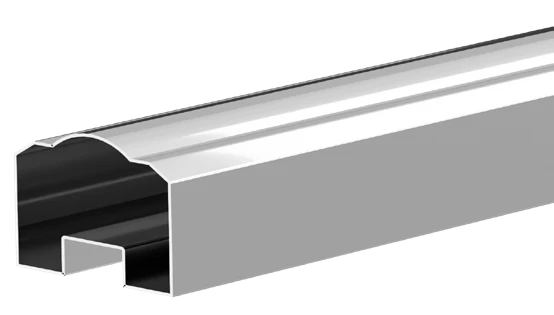

Main profile

Stainless steel

67 × 46 × 0.5 mm

Width × depth × wall thickness

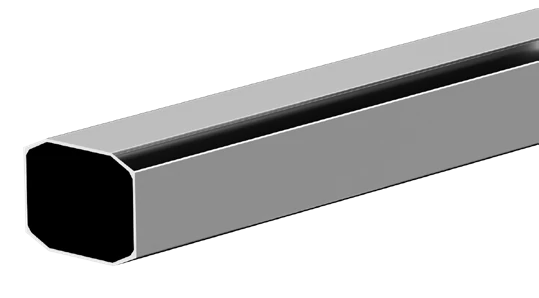

Secondary profile

Stainless steel

48 × 36 × 0.5 mm

Width × depth × wall thickness

SCISSOR-LINK STRUCTURE

Connected sections.
Coordinated folding.

Rows of stainless steel scissor links connect the upright frames through pivot joints. The sections fold together as the gate retracts.

Allow space to one side for the retracted gate and keep the travel path clear.

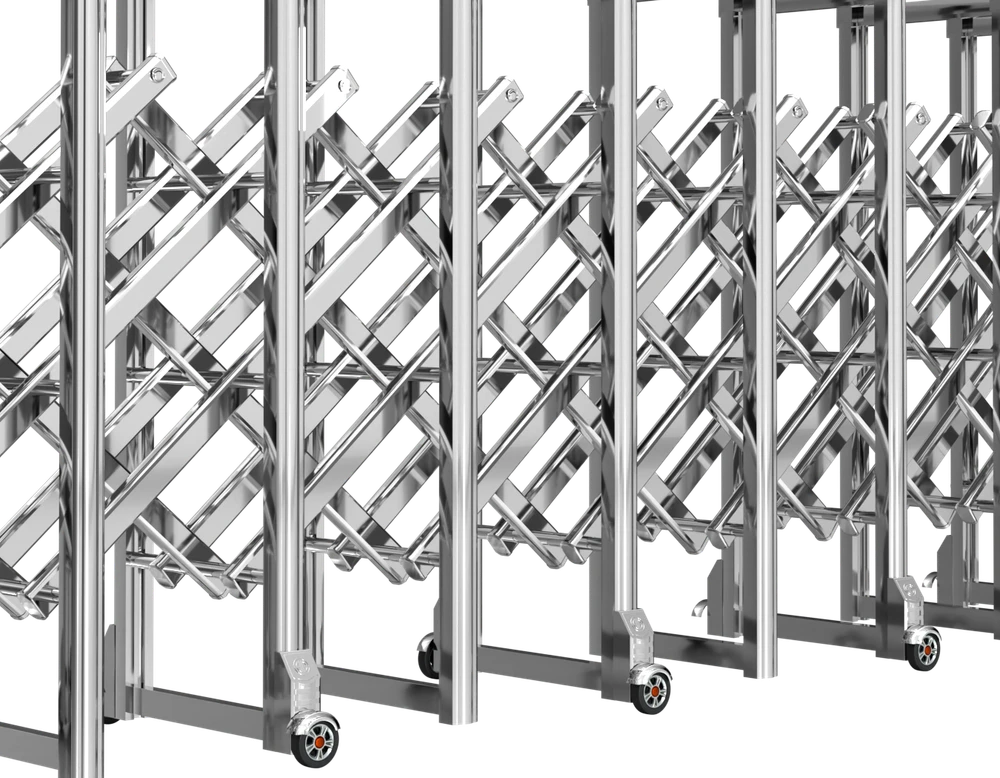

M-28 stainless steel scissor links, upright frames and pivot joints — Scissor links and pivot joints

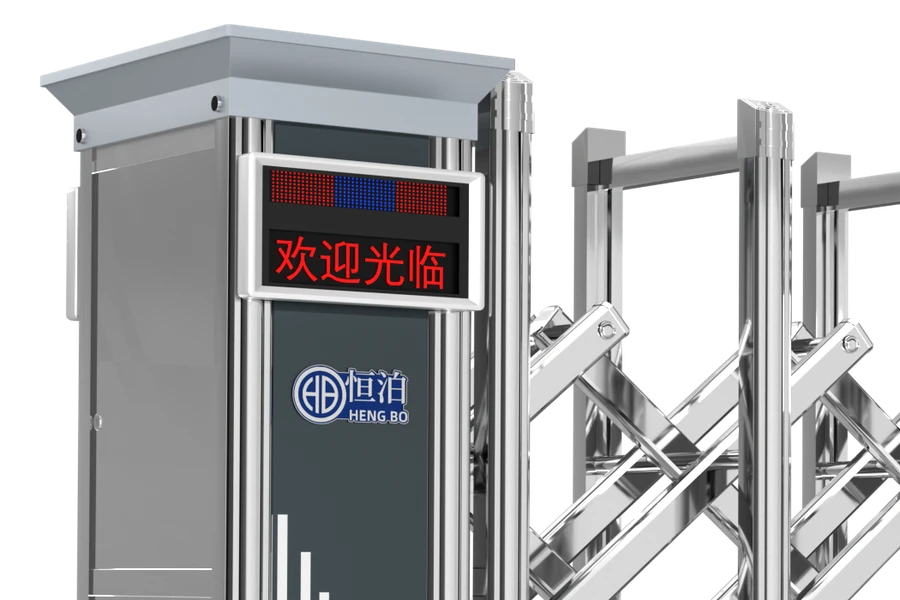

M-28 drive-head housing and display from the original product render

Integrated drive head.

The drive head moves the linked gate sections. English or another display language can be specified; character support, display and drive options are confirmed for the supplied equipment.

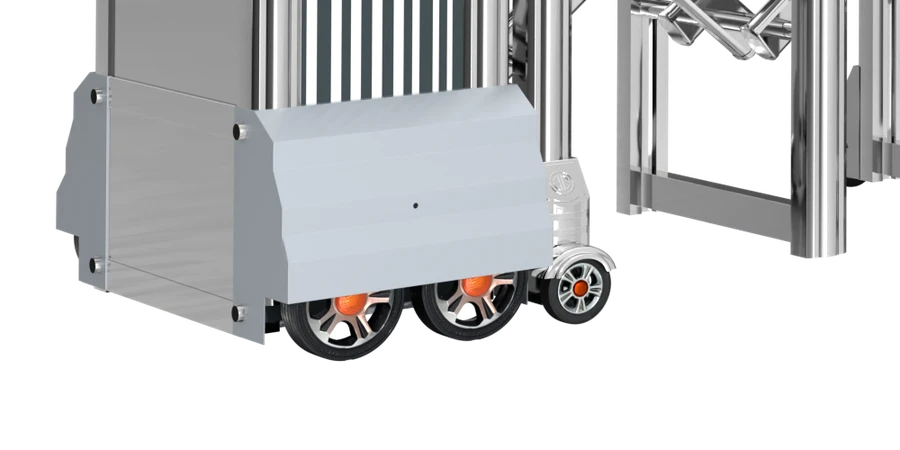

M-28 drive-head base and ground-running wheel assemblies

Ground-running wheels.

The wheel assemblies support the gate as it moves along the entrance. Provide a suitable surface and keep the travel path clear.

TECHNICAL DETAILS

Dimensions & entrance planning.

Reference dimensions from the M-28 catalogue. Final gate length, retraction space and drive configuration are confirmed for your entrance.

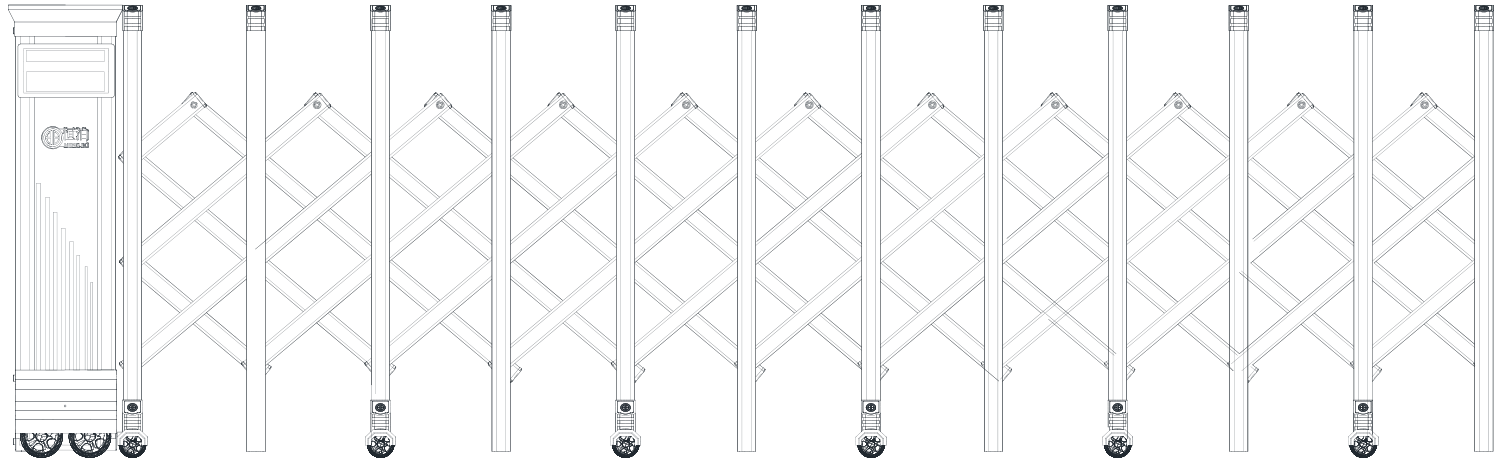

Original M-28 side elevation showing its drive head, linked frames and wheels — Side elevation · Reference drawing, not to scale

End view

The 700 mm and 620 mm dimensions describe the gate in the end view; they are not the clear opening width.

Space for the retracted gatePlan the clear opening and retraction space together.

Provide the required clear opening width, gate height and space available for the retracted gate. We will confirm the gate length, retracted dimensions and drive configuration for your layout.

INSTALLATION LAYOUTS

Between or behind the columns.

Compare the clear opening width and space needed for the retracted gate.

Between-column mounting

The rear of the gate is fixed at the column. The retracted gate occupies part of the entrance opening, reducing the clear opening width.

Retracted gate elevation View from inside

Behind-column mounting

The retracted gate sits inside the property, behind the boundary wall and entrance column. Allow space for the gate and clearance from the wall and column.

Retracted gate elevation View from inside

Illustrative layouts, not to scale. Total gate length refers to the fully extended gate, including the drive head. Final dimensions are confirmed for your entrance.

CONTROL & PROTECTION

Access and protection.

Select sensing and access options for your entrance.

Infrared detection waves reach a vehicle; the gate stops and reverses away from it.

Infrared anti-collision

Optional infrared sensing stops and reverses the gate if an obstruction is detected during closing.

A person climbing above the retractable gate triggers the infrared alarm.

Anti-climb alarm

An optional infrared alarm detects attempts to climb over the gate.

Licence plate recognition

An optional licence plate recognition system opens the gate for authorised vehicles. Access rules are configured for your site.

A key releases the clutch on the lower left side of the drive head, allowing the gate to be moved by hand.

Manual release

A keyed clutch release lets you move the gate by hand during a power failure. The release mechanism depends on the supplied drive.

Electrical & control specifications

Universal retractable-gate anti-collision controller reference
Parameter	Specification
Rated controller voltage	AC 220 V ±10%
Supply frequency	50 Hz
Rated controller current	10 A
Controller operating temperature	−35°C to +55°C
Remote-control frequency	433 MHz
Travel limit detection	Magnetic rod

Controller specifications. Final configuration confirmed in your quotation.

Optional control and protection

Control and protection options, equipment and compatibility are confirmed in your quotation.

Remote control & mobile app
Face recognition
Licence plate recognition
Card access
Vehicle loop detection
Anti-collision protection

PRODUCT QUESTIONS

Choosing your M-28.

What is the gate made from?

The M-28 uses stainless steel profiles: 67 × 46 × 0.5 mm for the main profile and 48 × 36 × 0.5 mm for the secondary profile. The stainless steel grade and supplied material specification are confirmed in your quotation.

How much space does the retracted gate need?

Reserve space to one side for the retracted gate and keep its travel path clear. Send the width between the entrance columns and the available retraction space so we can confirm the extended and retracted gate lengths.

Which colours are available?

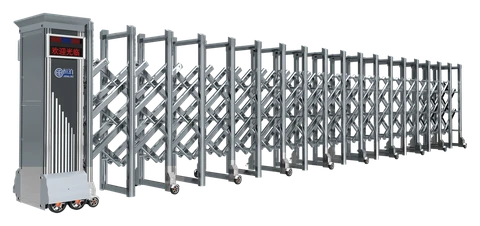

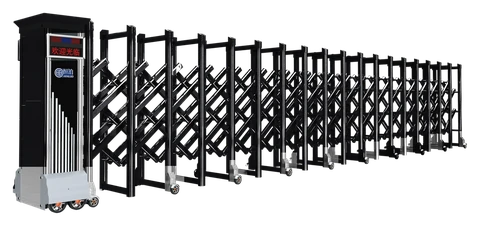

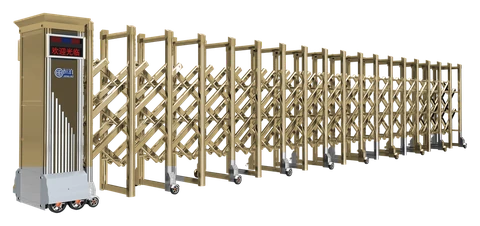

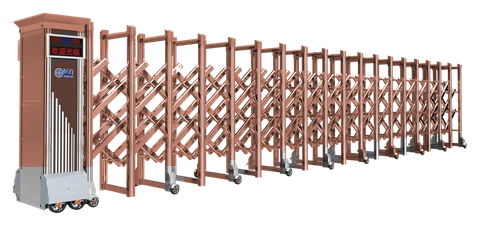

Available finishes include Silver Grey, Sand Grey, Antique Copper, Bronze, Hammered Black and Hammered Gold. On-screen colours are illustrative; the final paint finish is confirmed in your quotation.

What information is needed for a quotation?

Send the required clear opening width, gate height, space available for the retracted gate, ground conditions, quantity and destination country. Include your preferred colour, access-control requirements and a site photo or layout.

YOUR PROJECT

Request an M-28 quotation.

Share your entrance dimensions and preferred colour.

M-28 Hengyao Stainless Steel Retractable GateColour shownFinal paint finish confirmed in your quotation
