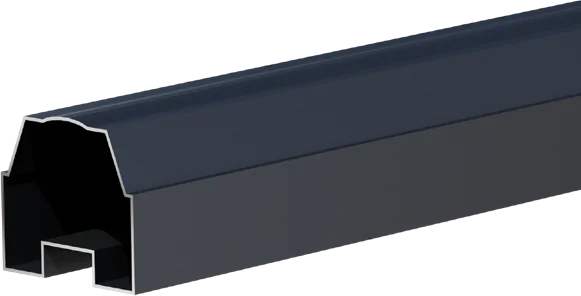

Main profile
Aluminium alloy
55 × 50 × 1.0 mmWidth × depth × wall thickness

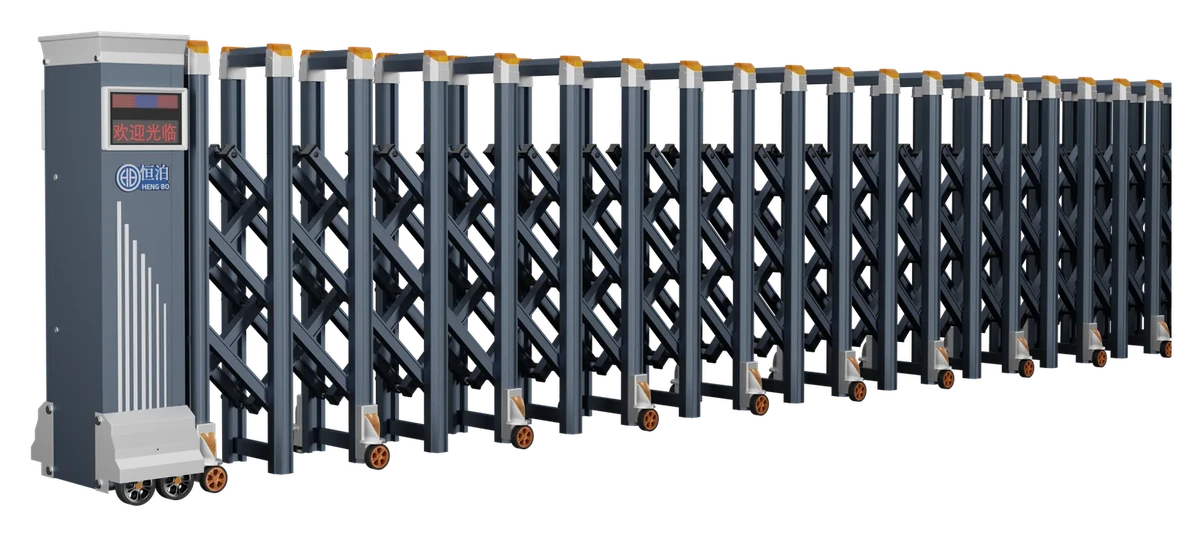

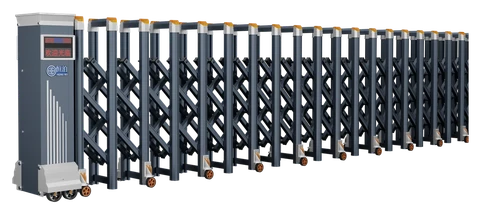

L-39 Hengchi Retractable Gate
An aluminium retractable gate for industrial parks, schools and managed entrances. Linked scissor sections extend across the entrance and retract to one side on wheels.
Colour shown

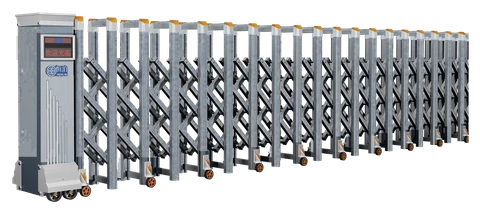

Silver Grey

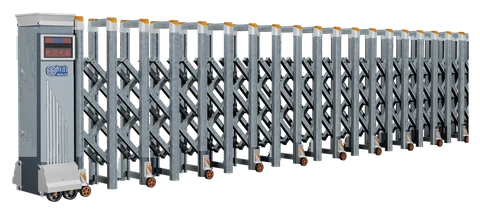

Sand Grey
Antique Copper

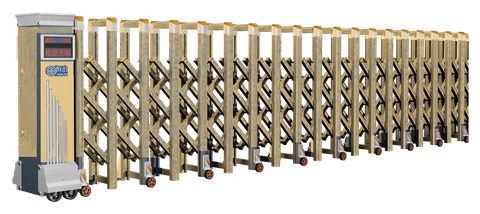

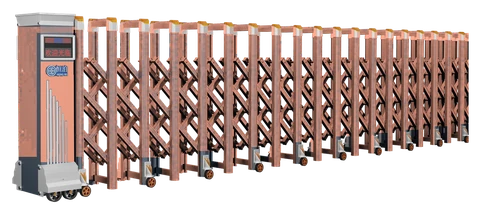

Bronze

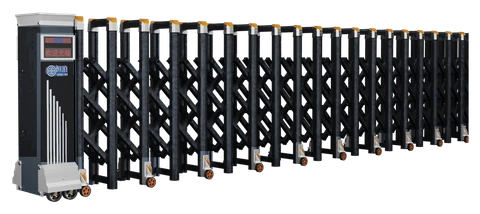

Hammered Black

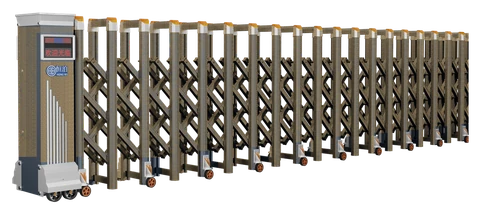

Hammered Gold
On-screen colours are illustrative. The final paint finish is confirmed in your quotation.
STRUCTURE & MATERIALS
Built to extend. Designed to fold.
Aluminium profiles form a series of wheeled frames. Pivoting scissor links let the gate extend and retract. The powder-coated finish is cured at high temperature.

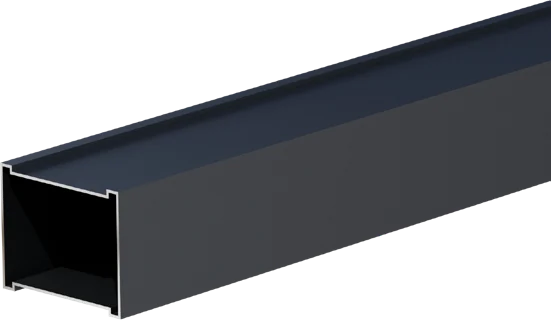

Secondary profile
Aluminium alloy
50 × 40 × 0.9 mmWidth × depth × wall thickness

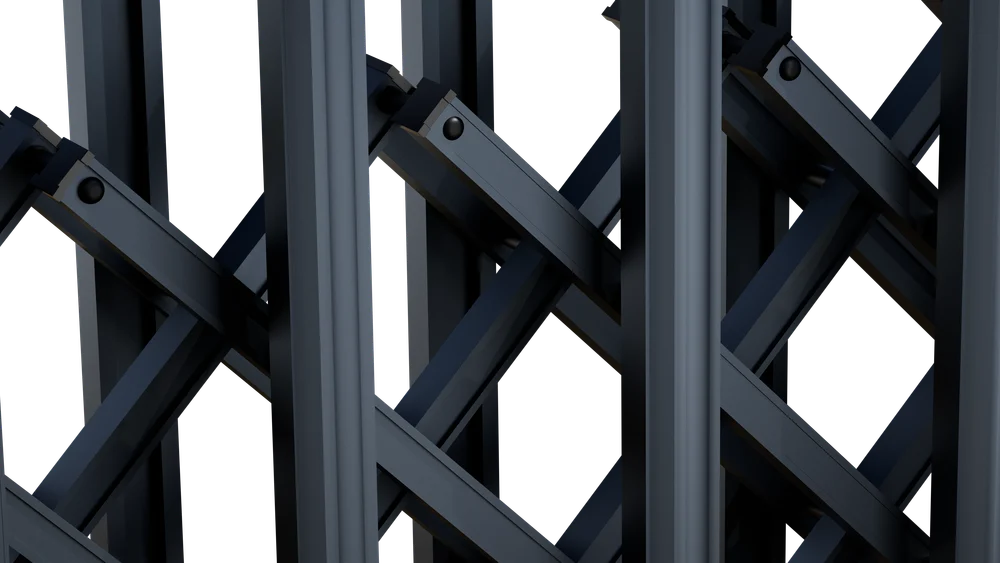

SCISSOR-LINK STRUCTURE
Linked sections.
Coordinated folding.
Multiple rows of scissor links connect the frames through pivot joints. Wear-resistant sleeves are fitted at the joints.
Allow space to one side for the retracted gate.
DRIVE SYSTEM

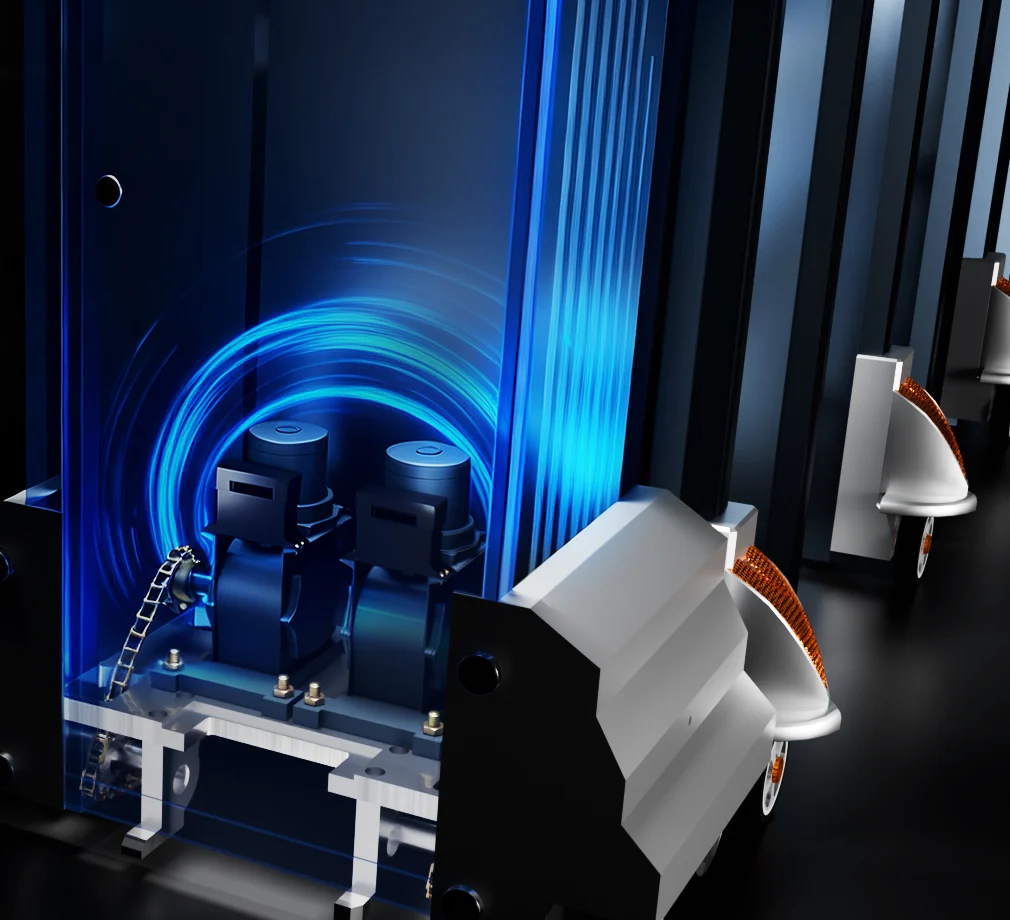

Brushless DC drive.
The drive head houses the motor assembly that moves the linked gate sections. The drive is selected to suit the gate and site conditions.
- Drive type
- Brushless DC motor
- Motor power options
- 370–750 W
The supplied motor rating is confirmed in your quotation.

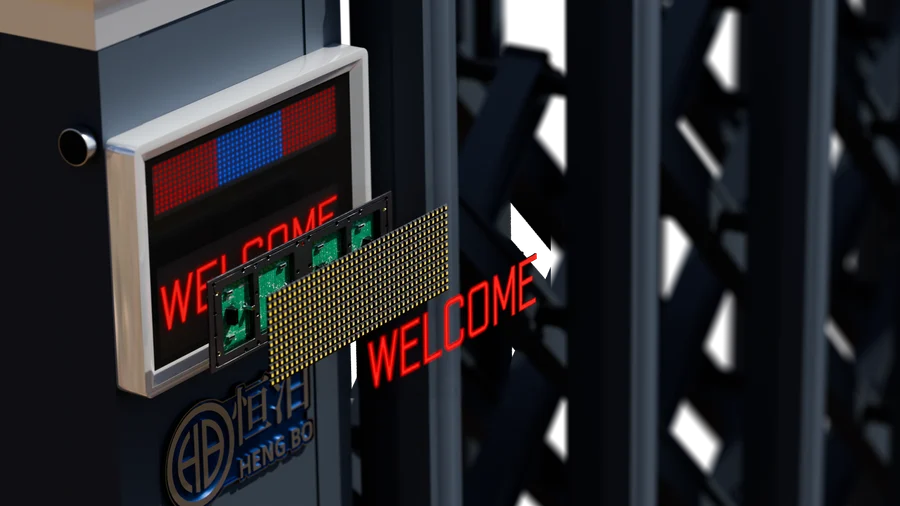

LED scrolling display.
The drive head has an LED scrolling display with a configurable message. English or another display language can be specified; character support and display options are confirmed in your quotation.

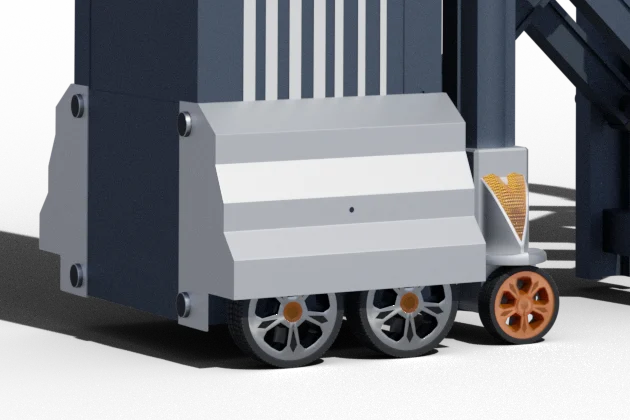

Cast-aluminium wheel assemblies.
Cast-aluminium wheel assemblies support the gate as it moves along the ground. Provide a suitable surface and keep the travel path clear.
TECHNICAL DETAILS
Dimensions & entrance planning.
Reference dimensions for the L-39. Final gate dimensions and space for the retracted gate are confirmed for your site.
The 600 mm dimension is the inner gate width in the end view, not the clear opening width.
Space for the retracted gatePlan the clear opening and retraction space together.
Provide the required clear opening width, gate height and space available for the retracted gate. We will confirm the retracted length and drive configuration.
INSTALLATION LAYOUTS
Between or behind the columns.
Compare the clear opening width and space needed for the retracted gate.
Between-column mounting
The rear of the gate is fixed at the column. The retracted gate occupies part of the entrance opening, reducing the clear opening width.
Retracted gate elevation View from inside
Behind-column mounting
The retracted gate sits inside the property, behind the boundary wall and entrance column. Allow space for the gate and clearance from the wall and column.
Retracted gate elevation View from inside
Illustrative layouts, not to scale. Total gate length refers to the fully extended gate, including the drive head. Final dimensions are confirmed for your entrance.
CONTROL & PROTECTION
Access and protection.
Select sensing and access options for your entrance.

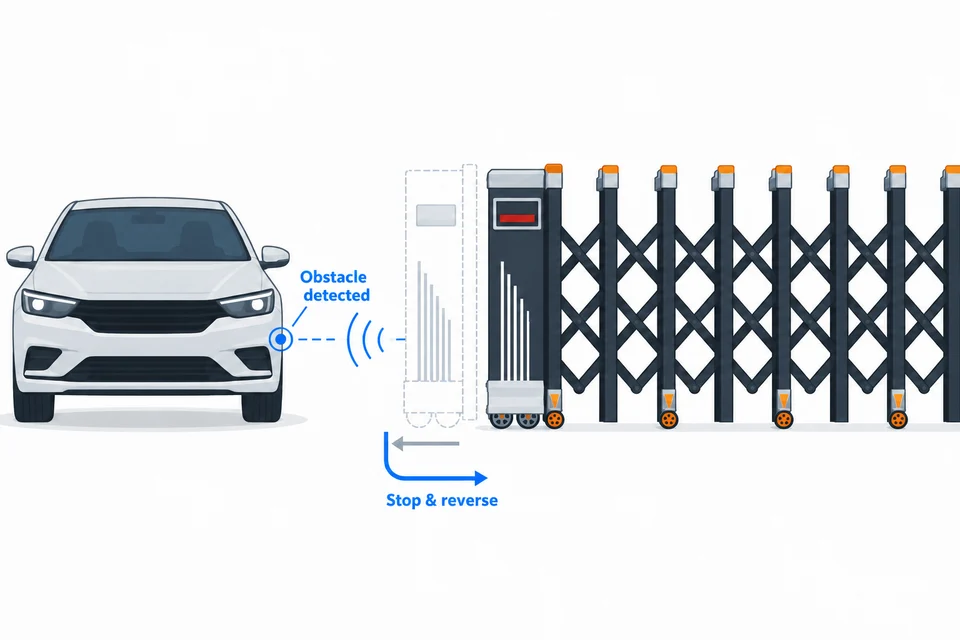

Infrared anti-collision
Optional infrared sensing stops and reverses the gate if an obstruction is detected during closing.

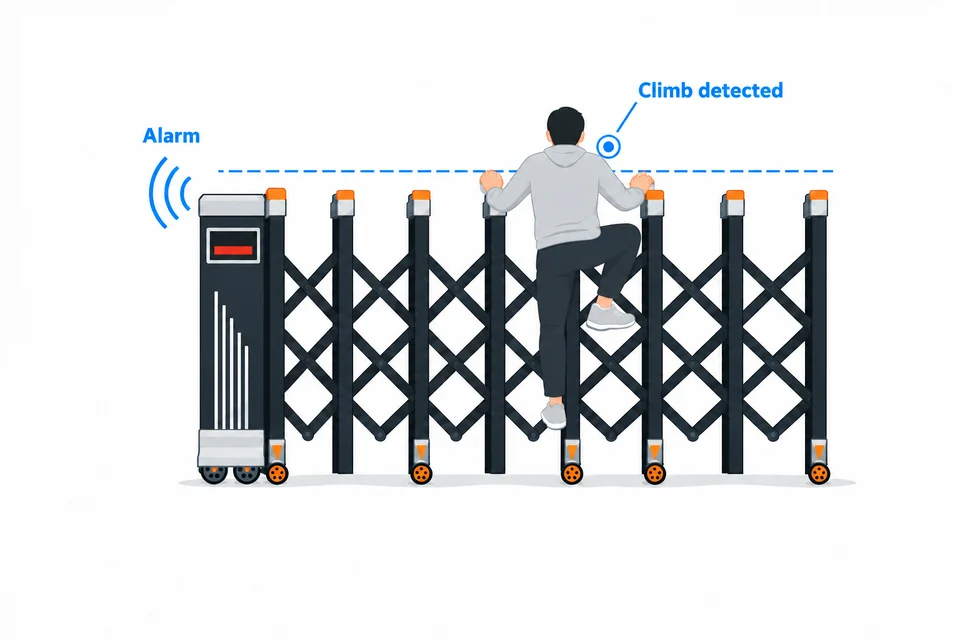

Anti-climb alarm
An optional infrared alarm detects attempts to climb over the gate.

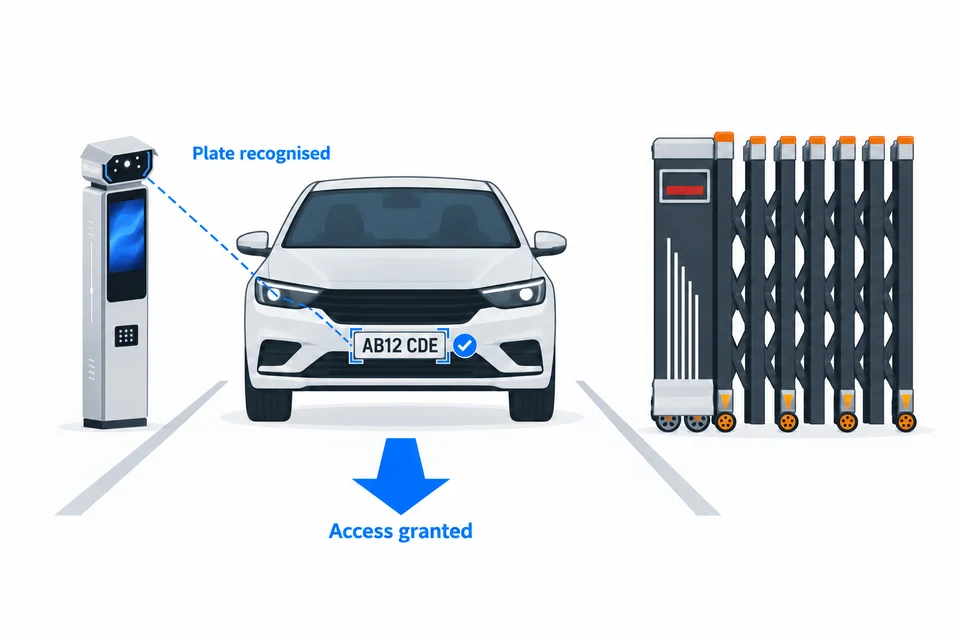

Licence plate recognition
An optional licence plate recognition system opens the gate for authorised vehicles. Access rules are configured for your site.

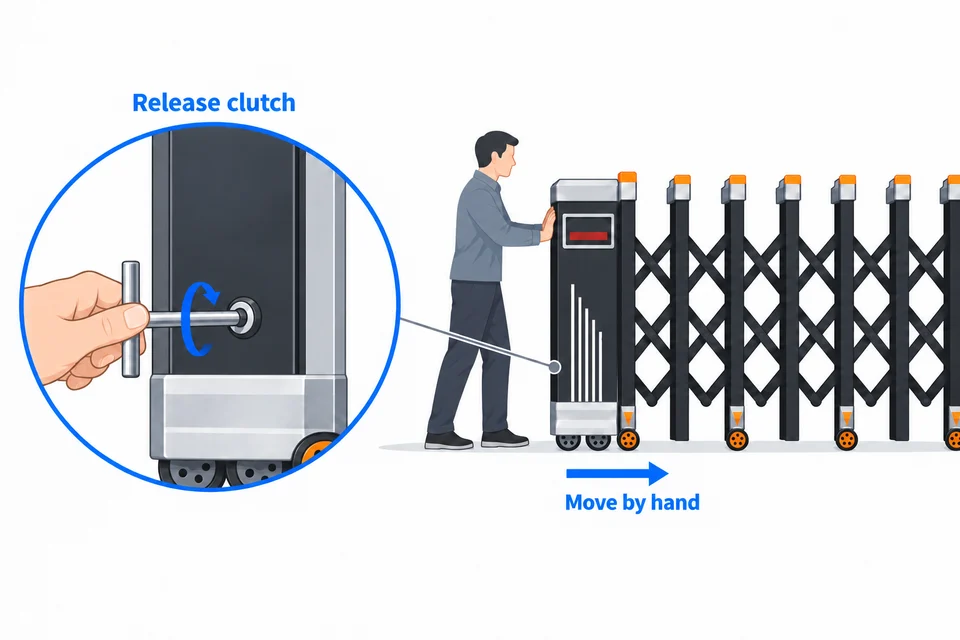

Manual release
A keyed clutch release lets you move the gate by hand during a power failure. The release mechanism depends on the supplied drive.
Electrical & control specifications
| Parameter | Specification |
|---|---|
| Rated controller voltage | AC 220 V ±10% |
| Supply frequency | 50 Hz |
| Rated controller current | 10 A |
| Controller operating temperature | −35°C to +55°C |
| Remote-control frequency | 433 MHz |
| Travel limit detection | Magnetic rod |
Controller specifications. Final configuration confirmed in your quotation.
Optional control and protection
Control and protection options, equipment and compatibility are confirmed in your quotation.
- Remote control & mobile app
- Face recognition
- Licence plate recognition
- Card access
- Vehicle loop detection
- Anti-collision protection
PRODUCT QUESTIONS
Choosing your L-39.
How much space does the retracted gate need?
Reserve space to one side for the retracted gate and keep its travel path clear. Send the width between the entrance columns and the available retraction space so we can confirm the extended and retracted gate lengths.
Which colours are available?
Available finishes include Silver Grey, Sand Grey, Antique Copper, Bronze, Hammered Black and Hammered Gold. On-screen colours are illustrative; the final paint finish is confirmed in your quotation.
What information is needed for a quotation?
Send the required clear opening width, gate height, space available for the retracted gate, ground conditions, quantity and destination country. Include your preferred colour, access-control requirements and a site photo or layout.
YOUR PROJECT
Request an L-39 quotation.
Share your entrance dimensions and preferred colour.
L-39 Hengchi Retractable GateColour shownFinal paint finish confirmed in your quotation
