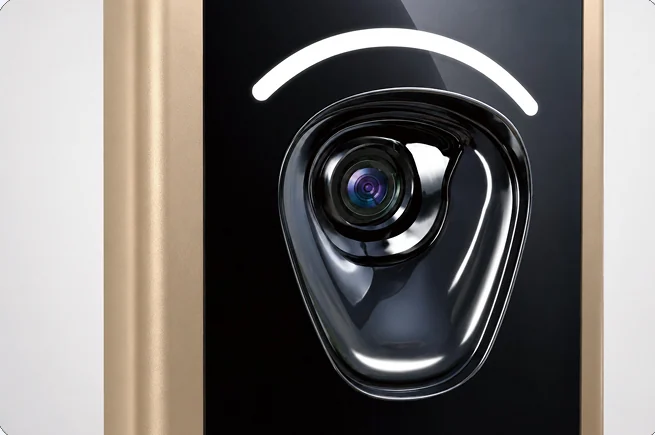

5 MP recognition camera
The camera faces the vehicle approach. Destination-country plate formats and recognition configuration are confirmed for the project.
NUMBER PLATE RECOGNITION

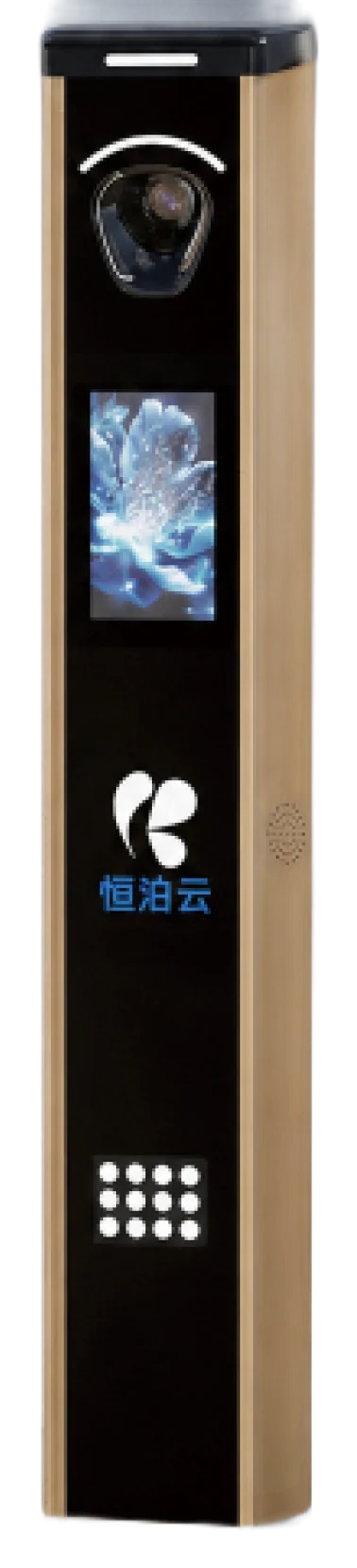

HB-C01 ANPR Terminal
A slim rose-gold ANPR terminal with an integrated camera, 10.1-inch LCD display and illumination unit for vehicle entry and exit.
- Camera
- 5 MP
- Display
- 10.1-inch LCD
RECOGNITION AT THE APPROACH
See the plate. Inform the driver. Control the lane.
Choose the terminal around the vehicle approach and the required driver information. Camera alignment, the selected display and the connected barrier each have a different role.
Camera position
Face the camera towards approaching number plates, with a clear view and a dedicated mounting position beside the lane.
Driver information
Choose the display version and agree the message, language and voice configuration. The selected display stays with your enquiry.
Connected entrance
Confirm the plate formats, access rules, network, vehicle detection and barrier interface for the destination site.
CAMERA, DISPLAY & CABINET
A camera and LCD in a slim cabinet.
The rose-gold cabinet brings the camera, 10.1-inch display and illumination into one upright unit. Its front and rear details show how information and equipment are arranged.

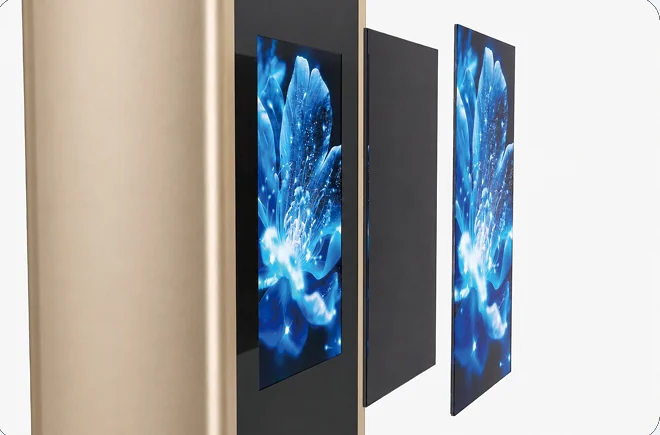

LCD driver display
A 10.1-inch LCD provides driver-facing information.
Display messages and announcements can be customised in English or your required language. The original catalogue image shows an example; confirm the language and character support with your quotation.

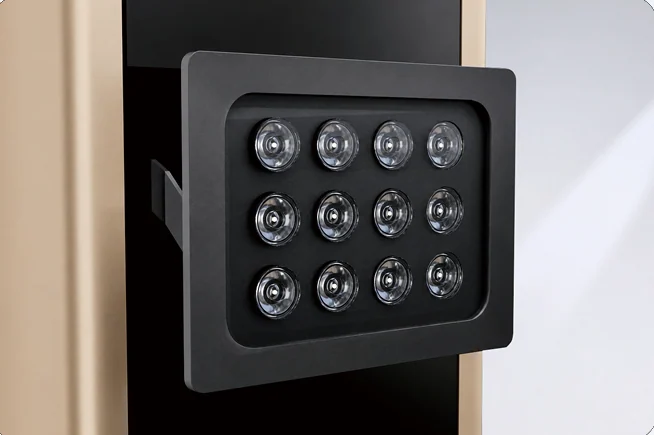

Supplementary LED illumination
The light array supports the camera view in lower light.

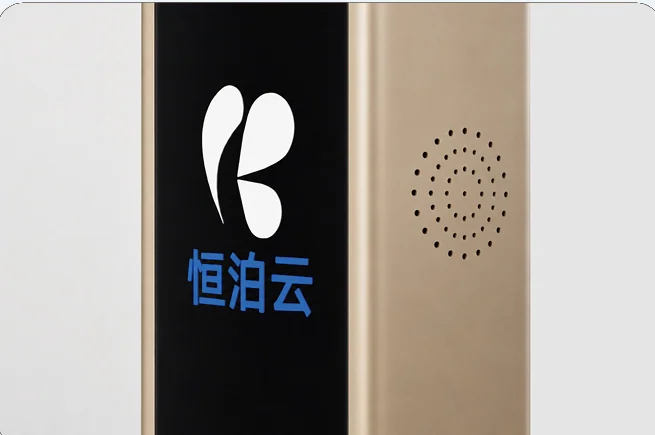

Voice announcements
A built-in speaker provides voice announcements. Language and announcement content are agreed with the configuration.
Display messages and announcements can be customised in English or your required language. The original catalogue image shows an example; confirm the language and character support with your quotation.

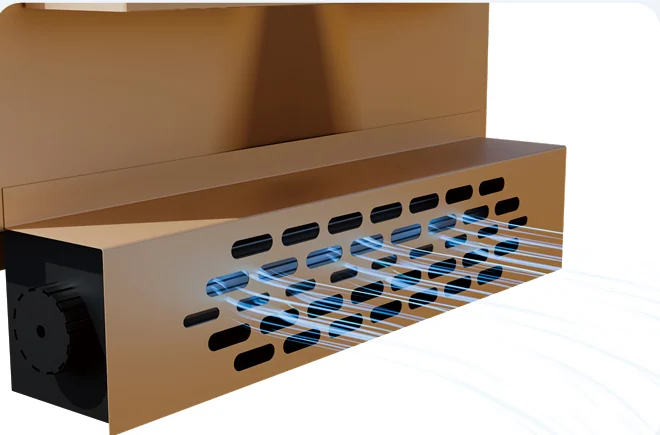

Cabinet cooling
The cabinet includes a cooling assembly around the internal equipment.

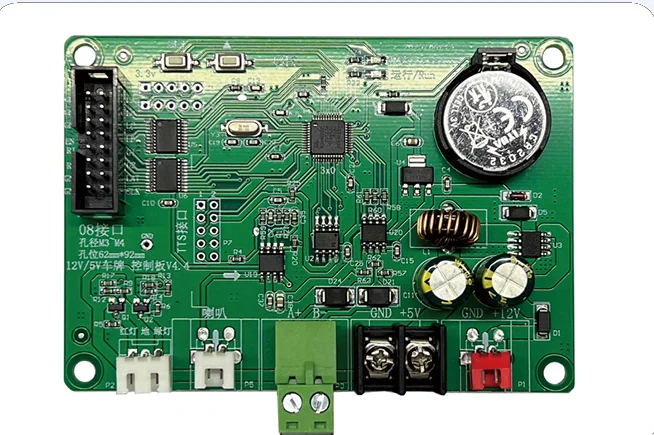

Connections and integration
TCP/IP communication is listed for this terminal. Confirm barrier control, software and third-party interfaces for the project.
ENTRANCE PLANNING
Recognition is one part of the entrance.
Pair the terminal with a barrier gate to control the vehicle lane. The final layout also considers vehicle detection, access rules, power and network connections.

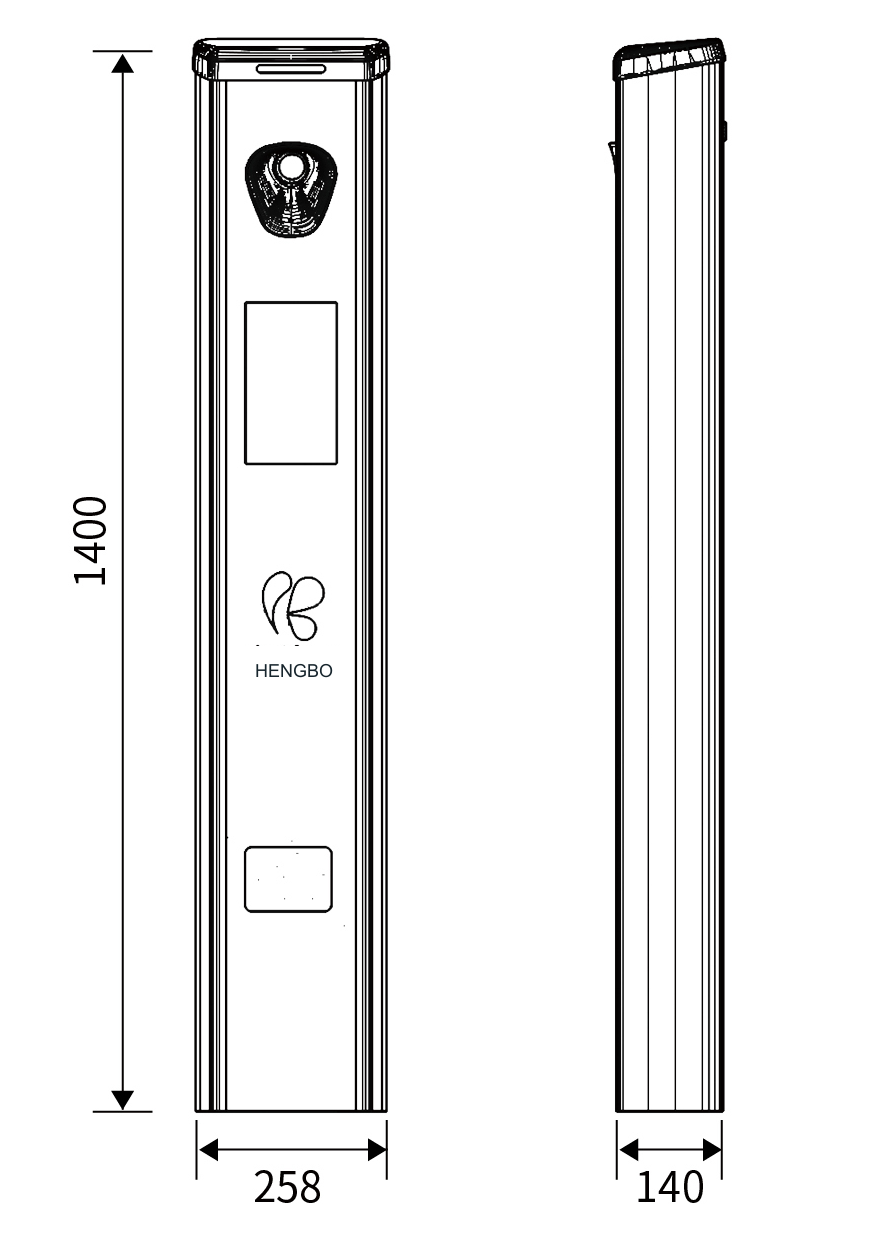

Build a complete systemDIMENSIONS & SITE SPACE
Plan the space around the equipment.
Equipment dimensions describe the product. Foundation and fixing details are confirmed for the installation.
- Height
- 1,400 mm
- Width
- 258 mm
- Depth
- 140 mm
MODEL SPECIFICATIONS
HB-C01 specifications
| Parameter | Specification |
|---|---|
| Model | HB-C01 |
| Camera | 5 MP |
| Display | 10.1-inch LCD |
| Communication | TCP/IP |
| Protection rating | IP54 |
| Input supply | AC 220 V ±10%, 50/60 Hz |
| Voice announcements | Supported; adjustable volume |
| Mounting | Ground-fixed pedestal |
| Illumination power | 12 W |
| Operating temperature | −20 to +60 °C |
The quotation confirms the supplied equipment and configuration.
PRODUCT QUESTIONS
Before you specify.
Which screen is shown on HB-C01?
This configuration uses a 10.1-inch LCD. The product view and specification on this page refer to that LCD version.
How much room does the cabinet need?
The product dimensions are 1,400 mm high, 258 mm wide and 140 mm deep. Allow additional space for the base fixings, cable entry and maintenance access when planning the installation.
How is the camera illuminated?
The terminal includes a supplementary LED light array; the model specification lists 12 W illumination. Aim and commission the camera for the actual vehicle approach.
Can HB-C01 operate with a boom barrier?
It can be specified with a barrier as part of a vehicle entrance system. Confirm the barrier, vehicle detection, parking software and network requirements together.
