FD-01 Segmented Cantilever Gate

FD-01 divides the cantilever leaf into overlapping sliding sections. X-braced panels travel alongside one another, allowing the retraction arrangement to be planned around the available side space.

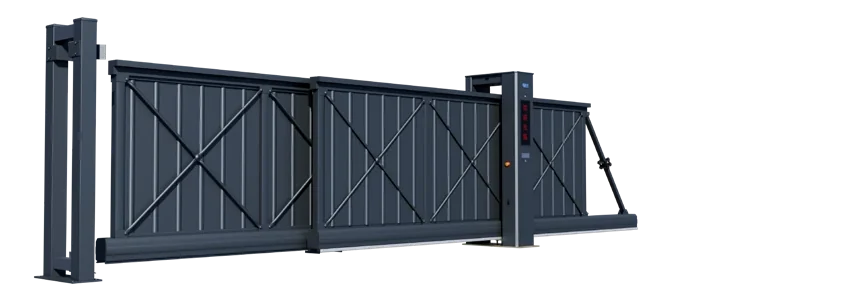

Segmented Cantilever Gate FD-01 in solid panels configuration, original catalogue product image
Choose your style

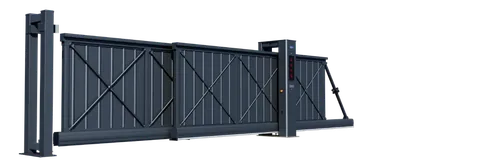

Solid panels

Fully enclosed solid panels with X-bracing. The standard configuration.

Shown colour. Custom colours on request.

STRUCTURE & MATERIALS

How the FD-01 is built.

Aluminium upper and lower beams, stainless-steel main uprights and painted 201 stainless-steel diagonal braces form the two-leaf sectional detail. Each profile below belongs to FD-01.

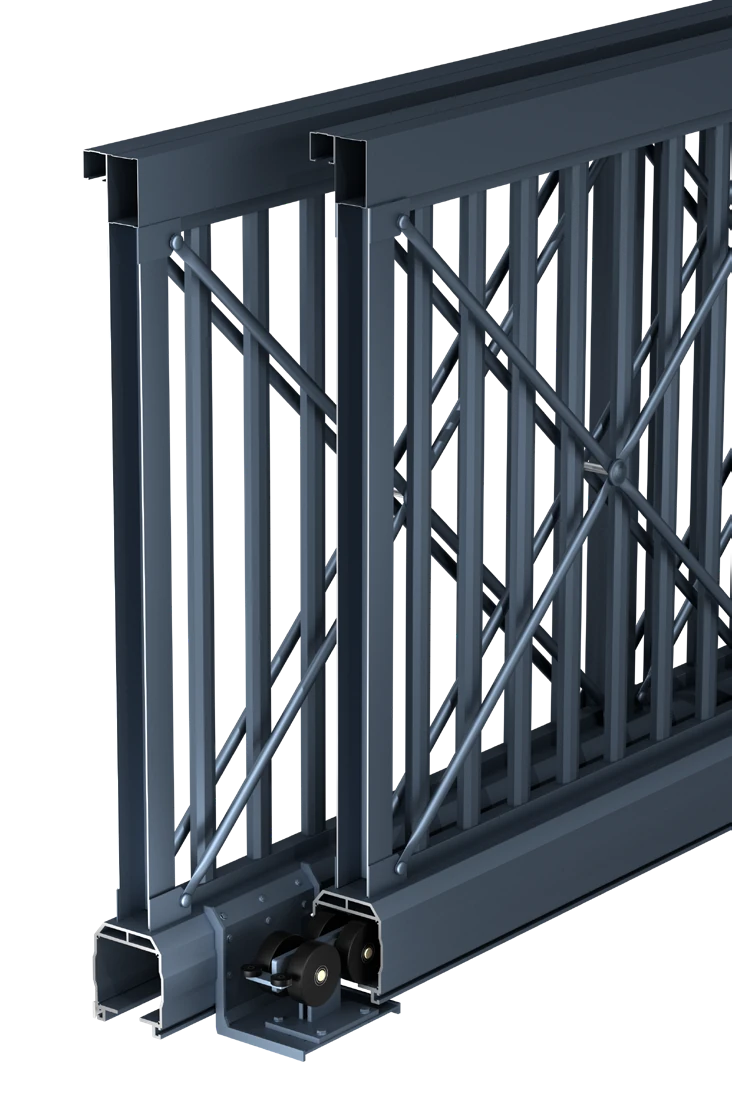

FD-01 original manufacturer detail: parallel moving leaves
Upper beam
Aluminium alloy120 × 90 × 3.0 mm
Main upright
Stainless steel80 × 80 × 2.0 mm
Intermediate upright
Aluminium alloy50 × 27 × 1.5 mm
Diagonal brace
Painted 201 stainless steel
Lower beam
Aluminium alloy148 × 170 × 5.0 mm
Two parallel leaves and the lower support are shown in the original FD-01 sectional detail.

SECTIONAL MOVEMENT

Parallel sections. Shared side space.

Rigid leaves slide alongside one another and overlap during opening. The space beside the driveway must accommodate both the retracted length and the depth of the stacked leaves.

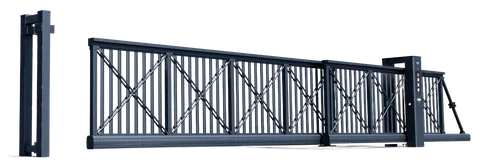

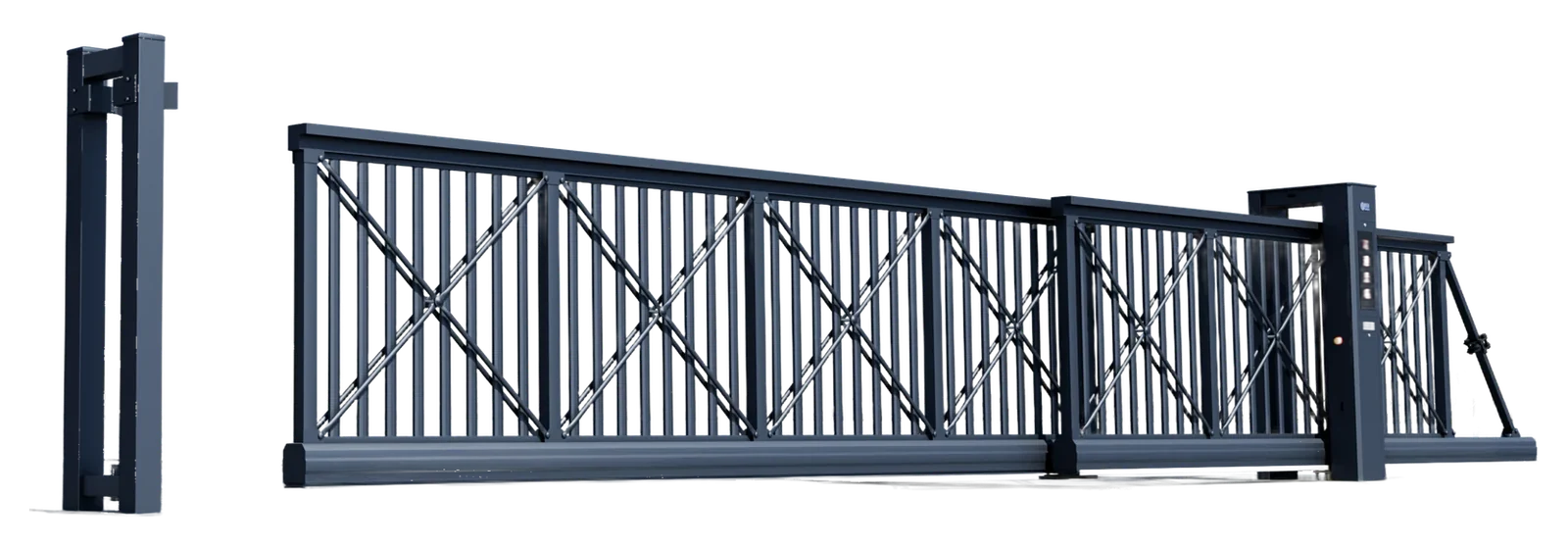

FD-01 vertical-bar gate cut out from its own catalogue, retaining original sections and operating hardware
FD-01 with vertical bars · Original manufacturer image

  1. Overlapping leaves

    The moving sections remain upright as they slide in parallel. Their combined arrangement is selected for the opening.

  2. Fixed support

    The support and guide assembly carries the moving leaves while the driveway remains free of a ground track.

  3. Space beside the opening

    Allow length and depth for the stacked leaves, with clearances around the support, drive and access for maintenance.

Support & guidance.

Fixed supports carry the moving assembly. Guides keep the parallel sections aligned as the gate travels.

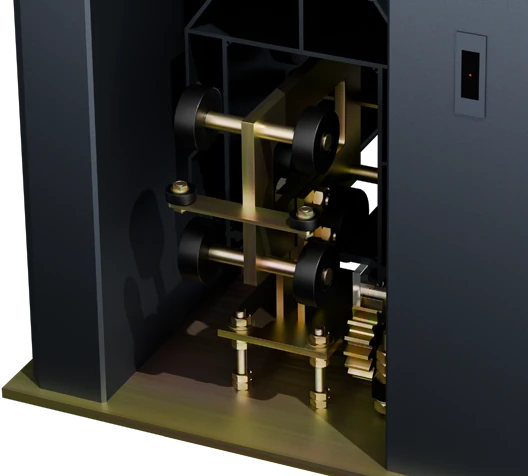

FD-01 original manufacturer detail: galvanised roller support

Galvanised roller support

The fixed support carries the sectional cantilever assembly. Plan its base and access alongside the vehicle opening.

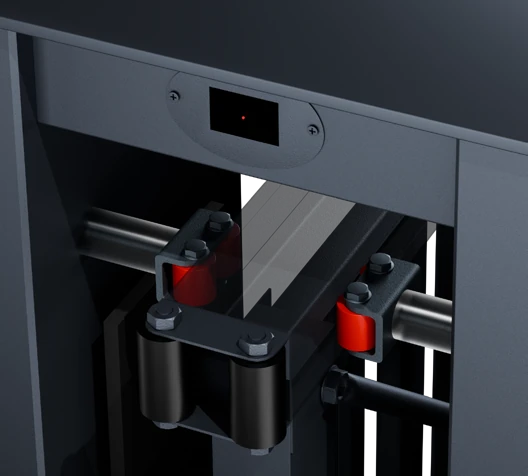

FD-01 original manufacturer detail: nylon guidance

Nylon guidance

The guide rollers control lateral movement at the fixed support. Adjacent sections need a clear path throughout travel.

Infrared protection.

Sensing above the gate and across the entrance. The devices and operating response are specified with your control system.

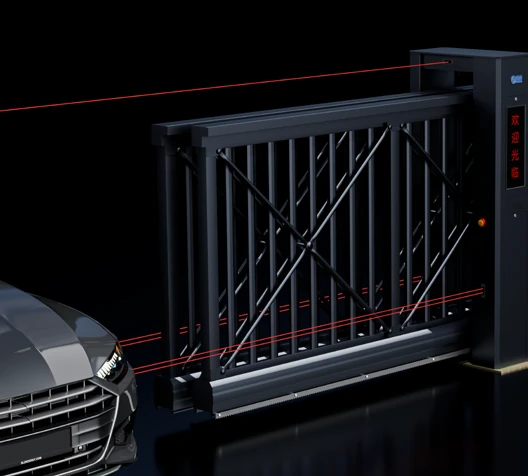

FD-01 original manufacturer detail: infrared anti-climb and collision protection
Infrared beam paths illustrated.
Anti-climb
Infrared sensing above the gate monitors the climbing zone.
Anti-collision
Infrared detection across the entrance monitors obstructions in the gate path.

TECHNICAL DETAILS

Dimensions and specifications.

Plan the clear opening, the return length and the depth of the stacked sections together. Each describes a different part of the installation.

FD-01 side elevation: clear opening W, total gate length L = 1.5 × W, ground clearance 150 mm and reference gate height 1,700 mmTotal gate length L = 1.5 × WClear opening W1,700 mmGround clearance 150 mm150 mm clearance
Side elevation
FD-01 end view: fixed-frame height 1,920 mm and width 800 mm1,920 mm800 mm
End view
Side return spaceReturn length + stacking depth

For an 8 m opening, the overall gate length is 12 m. The sections overlap on retraction: allow side space for their stacked length and depth, plus the fixed supports and service clearances.

Not to scale. Recommended panel height: up to 2,000 mm. The section arrangement and retracted footprint are confirmed on your installation drawing.

Product specifications

FD-01 materials and reference dimensions
ParameterSpecification
Reference gate height1700 mm
Upper beam120 × 90 × 3.0 mm, aluminium alloy
Main upright80 × 80 × 2.0 mm, stainless steel
Intermediate upright50 × 27 × 1.5 mm, aluminium alloy
Diagonal bracePainted 201 stainless steel
Lower beam148 × 170 × 5.0 mm, aluminium alloy
Reference fixed frame1920 mm high × 800 mm wide
Section arrangementConfigured for the entrance
Total gate lengthL = 1.5 × clear opening W
Ground clearance150 mm
Recommended gate heightUp to 2000 mm

Optional control and protection

Choose the control and protection equipment for your entrance. Included devices, interfaces and site compatibility are confirmed in your quotation.

  • Remote control & mobile app
  • Face recognition
  • Licence plate recognition
  • Card access
  • Vehicle loop detection
  • Anti-collision protection

PRODUCT QUESTIONS

Choosing your FD-01.

Do the sections fold on hinges?

No. The illustrated sections slide in parallel and overlap. The arrangement needs side run-back space and depth for the stacked leaves.

How many sections should I specify?

Send the opening width, required height and the available retraction area. The section count and individual lengths are selected together; there is no universal arrangement for every entrance.

How are gate length and side space determined?

Overall gate length L = 1.5 × clear opening W, so an 8 m opening corresponds to a 12 m gate. The sections overlap during retraction. The required side space and stacking depth are determined by the section count, individual lengths and installation drawing.

Does it require a ground track across the driveway?

The catalogue describes a cantilever design. Its moving sections are carried at the fixed support; foundations and service access still need to be planned.

Which style is supplied as standard?

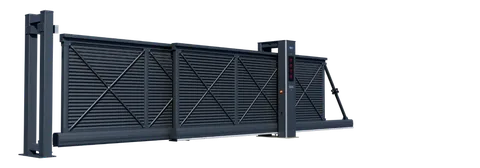

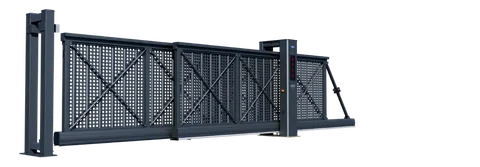

Fully enclosed solid panels with X-bracing are standard. Louvres, round-perforated panels and vertical-bar infill are alternative configurations; confirm the selected style and finish in your quotation.
