D-23 Sectional Sliding Gate

Name: D-23 Sectional Sliding Gate
Brand: HENGBO

D-23 uses aluminium framed sections that slide and overlap along the entrance. A straight drive head, small ground-running wheels and top guides give the gate its compact sectional arrangement.

D-23 louvres catalogue-based infill preview on the shared D-23 frame

Choose your style

Louvres

Solid panels

Perforated panels

Vertical bars

Louvres

Horizontal louvres with the original frame, supports and drive arrangement.

Shown colour. Custom colours on request.

STRUCTURE & MATERIALS

How the D-23 is built.

Both main beams are 110 × 65 × 2 mm aluminium. The 100 × 100 × 2 mm main uprights, 45 × 32 × 1 mm intermediate members and 56 × 35 × 1 mm horizontal members are also specified as aluminium alloy.

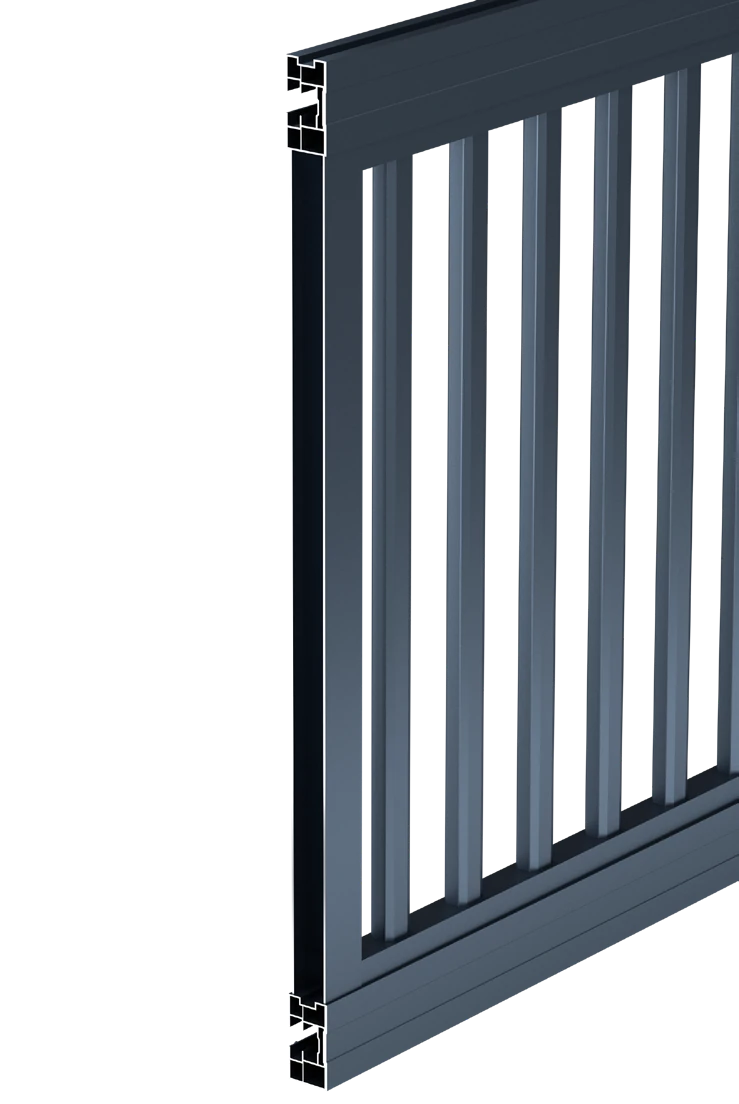

D-23 original manufacturer detail: upper and lower beams — D-23 original profile artwork · Numbered leaders identify the verified sections. Catalogue options are labelled separately.

Guide the sections as they overlap.

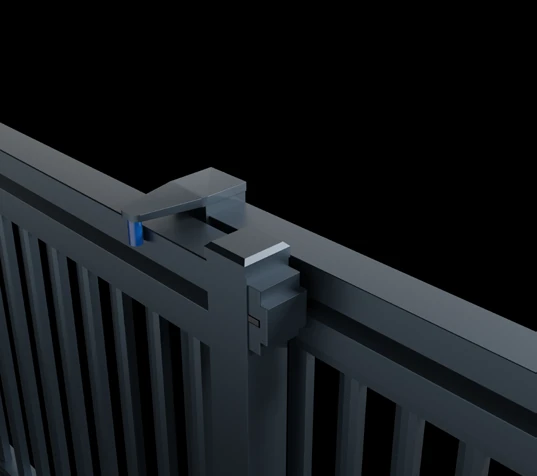

D-23 original manufacturer detail: top section guides — Top section guides
Guide components connect the travel of the adjacent sections. The leaves remain parallel as the gate extends or retracts; they do not fold on hinges.

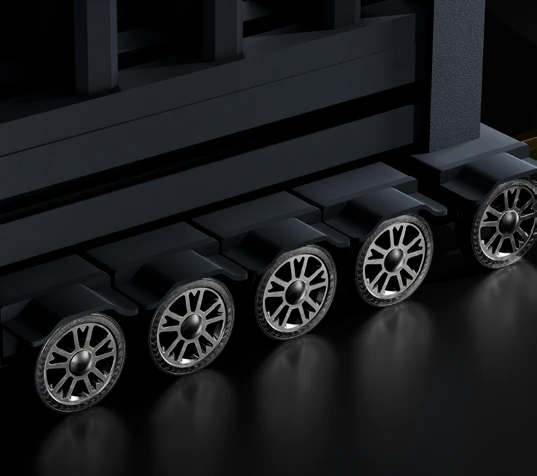

D-23 original manufacturer detail: wheels along the sections — Wheels along the sections
The original detail shows the cast-aluminium wheel assemblies below adjacent sections. This ground-running support differs from the large head wheel shown on D-18.

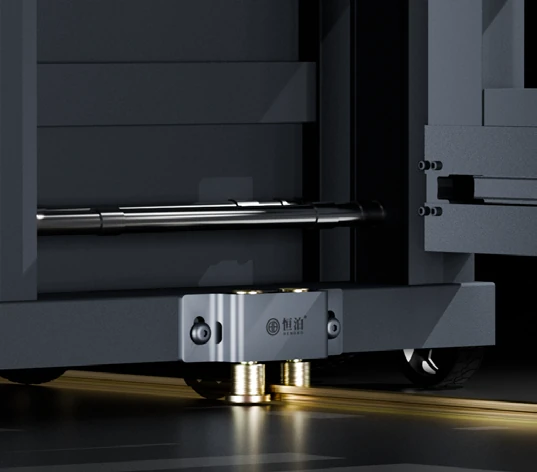

D-23 original manufacturer detail: lower wind guide — Lower wind guide
The lower guide device keeps the moving section engaged with its travel line. This structural feature is not a stated wind-load certification.

A geared drive for the moving gate.

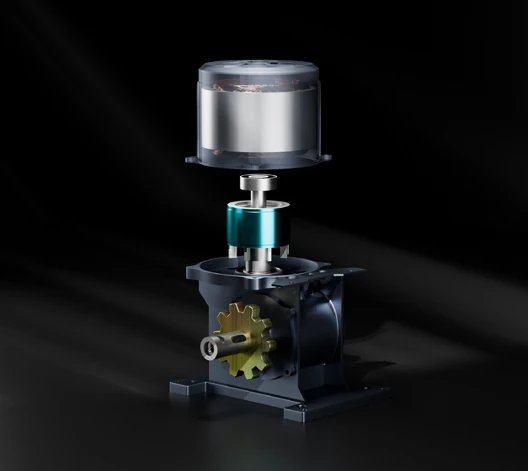

D-23 original manufacturer detail: copper worm-gear drive

Copper worm-gear drive: The catalogue identifies a copper worm-gear drive and illustrates the drive assembly. Select the electrical and control configuration for the final gate length and operating requirements.

TECHNICAL DETAILS

Dimensions and specifications.

Set the track, section arrangement and space for the overlapping leaves together.

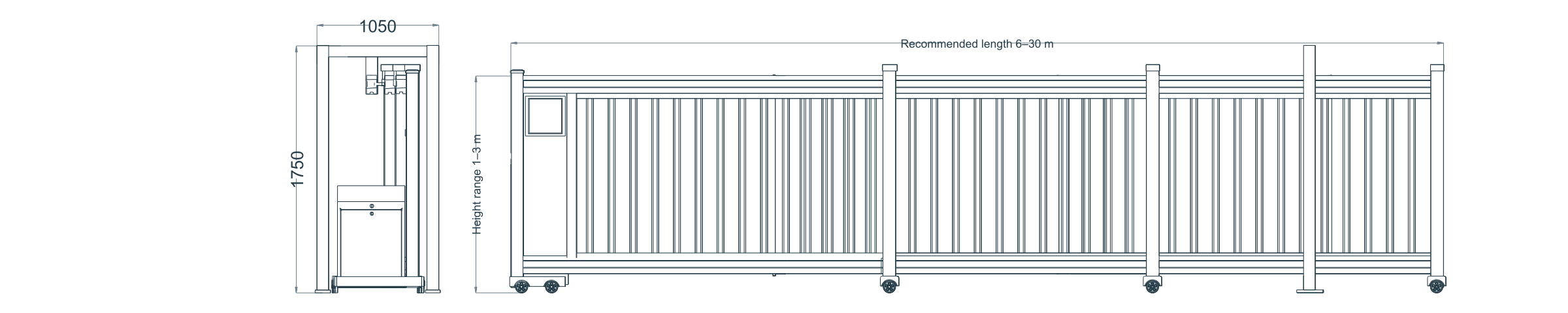

D-23 original catalogue CAD geometry with English dimension labels, millimetres — Reference elevation and end view · Reference drawing, not to scale

Reference gate height: 1700 mm
Reference end frame: 1750 mm high × 1050 mm wide
Section count: 2–6, configured for the site
Individual section length: 2–5 m, configured for the site

SECTIONAL TRAVELReturn length and stacked depth.

The own-model drawing shows an end frame 1750 mm high and 1050 mm wide. The reference gate height is 1700 mm. The catalogue describes 2–6 sections, each 2–5 m long; the actual combination depends on the opening and retraction area.

Product specifications

D-23 materials and reference dimensions
Parameter	Specification
Reference gate height	1700 mm
Upper beam	110 × 65 × 2.0 mm, aluminium alloy
Lower beam	110 × 65 × 2.0 mm, aluminium alloy
Main upright	100 × 100 × 2.0 mm, aluminium alloy
Intermediate upright	45 × 32 × 1.0 mm, aluminium alloy
Secondary horizontal member	56 × 35 × 1.0 mm, aluminium alloy
Reference end frame	1750 mm high × 1050 mm wide
Section count	2–6, configured for the site
Individual section length	2–5 m, configured for the site
Drive type	Copper worm-gear drive

Optional control and protection

Select the access and protection equipment with your gate. Included devices, interfaces and operating response are confirmed in the quotation.

Remote control & mobile app
Face recognition
Licence plate recognition
Card access
Vehicle loop detection
Anti-collision protection

PRODUCT QUESTIONS

Choosing your D-23.

How is the section arrangement chosen?

Provide the clear opening and the available run-back length and width. Section count and individual length are selected together; the catalogue ranges do not mean every combination suits every site.

Does the gate need a ground travel line?

The gate is shown with ground-running wheels and a lower guide device. Confirm the track, ground levels and drainage as part of the installation drawing.

What distinguishes this model?

D-23 specifies 110 × 65 × 2 mm beams and aluminium main uprights. Its straight drive head and smaller wheel arrangement distinguish it from the D-18 configuration.
