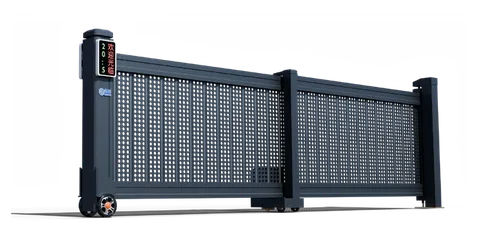

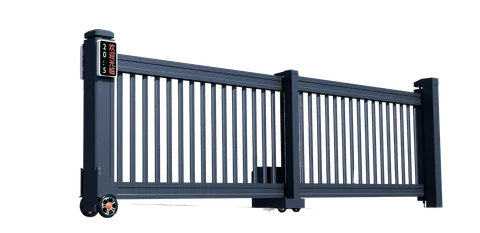

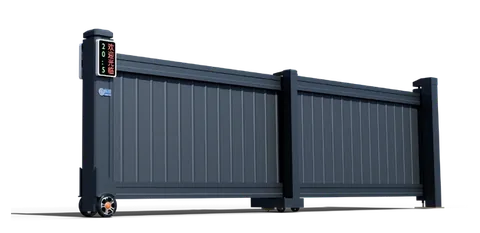

D-22 combines hinged folding leaves with a ground-supported leading post. Its integrated display, cast-aluminium wheel and aluminium frame suit entrances where a folding movement is preferred to a long side-sliding leaf.

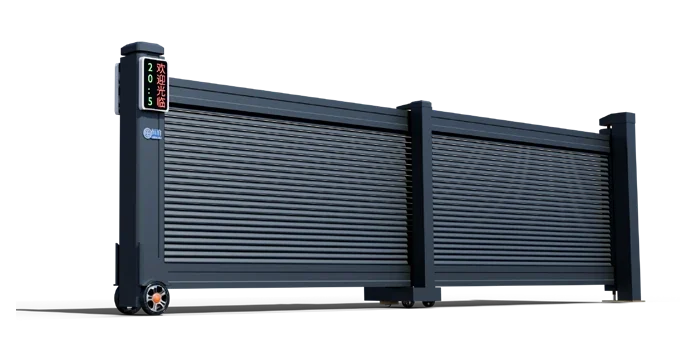

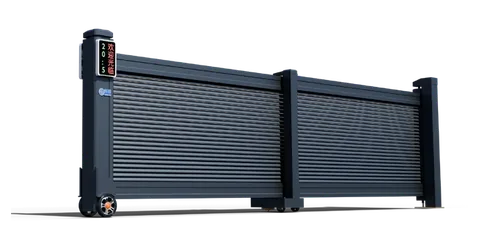

Horizontal louvres with the original frame, supports and drive arrangement.
Shown colour. Custom colours on request.
STRUCTURE & MATERIALS

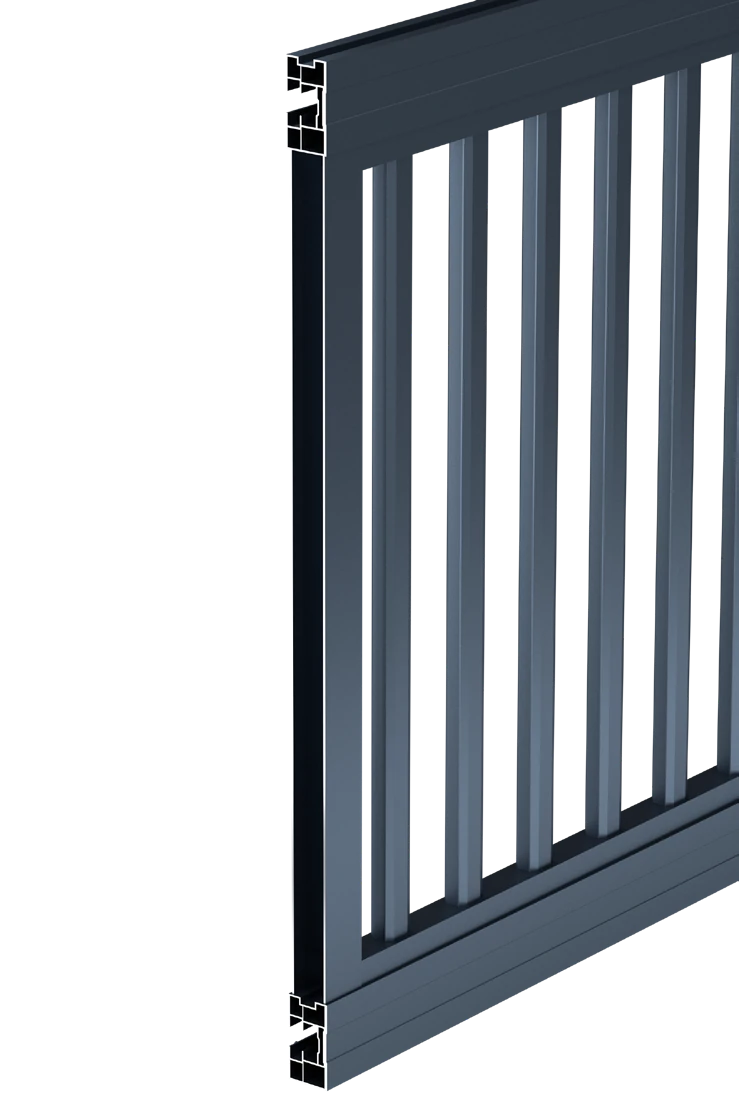

The upper and lower aluminium beams are 140 × 80 × 3 mm. Main uprights are 105 × 95 × 2.5 mm, with 50 × 27 × 1.5 mm intermediate members and 30 × 40 × 1.2 mm secondary members.
HINGED MOVEMENT

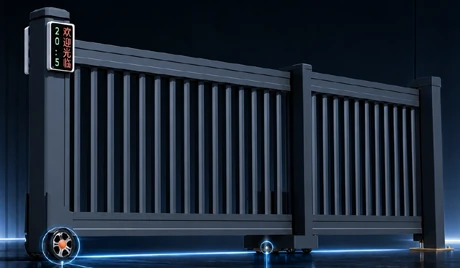

D-22 uses folding and swinging movement. The leading post runs on its ground wheel while the leaves articulate at the joint. Reserve the full swept area instead of planning it as a straight sliding track.
INTEGRATED EQUIPMENT
The model page identifies an LED display and control system integrated at the leading post. Display content and the selected controls should be confirmed in the equipment specification.
The cast-aluminium wheel supports the leading post during travel. Its swept path needs a suitable level surface; track-free operation does not eliminate ground preparation.
TECHNICAL DETAILS
Plan the hinged leaves and ground-wheel sweep, with a suitable finished surface.

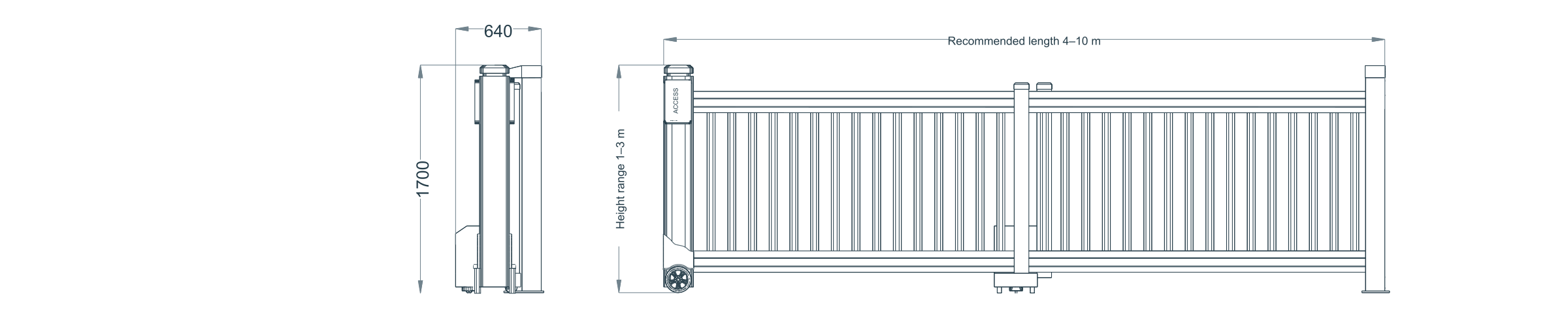

The drawing shows a 1700 mm-high end frame and a 640 mm end-view width; the gate-height reference is 1600 mm. Provide the opening, adjacent walls, ground levels and available folding area for the final plan.
| Parameter | Specification |
|---|---|
| Reference gate height | 1600 mm |
| Upper and lower beams | 140 × 80 × 3.0 mm, aluminium alloy |
| Main upright | 105 × 95 × 2.5 mm, aluminium alloy |
| Intermediate upright | 50 × 27 × 1.5 mm, aluminium alloy |
| Secondary member | 30 × 40 × 1.2 mm, aluminium alloy |
| Reference end frame | 1700 mm high × 640 mm wide |
| Head wheel | Cast aluminium |
| Display | Integrated LED display |
| Length | Custom |
Select the access and protection equipment with your gate. Included devices, interfaces and operating response are confirmed in the quotation.
PRODUCT QUESTIONS
No. The D-22 page describes folding and swinging motion. Hinged leaves and a ground-supported leading post determine the space needed as it opens.
No. The original D-22 has a visible head wheel and the catalogue specifically describes it. A suitable ground surface is still required along its travel path.
Send a plan with the clear opening, posts, walls, ground levels and the space available inside the entrance. The folding and swing envelope must be checked before dimensions are finalised.
YOUR PROJECT
Share your clear opening, gate height, ground levels and available space for the D-22. Your selected style is included in the enquiry.
