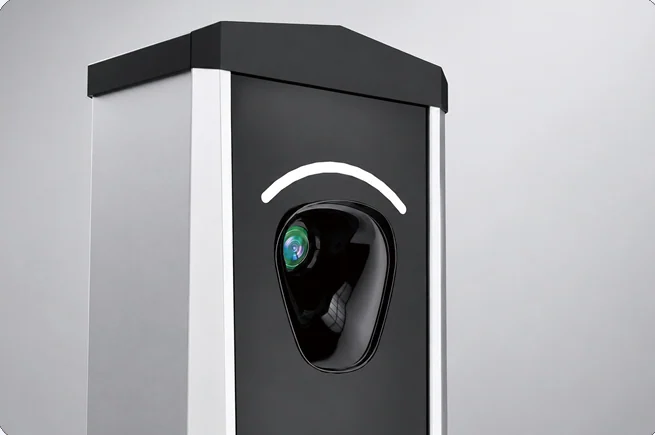

5 MP recognition camera
The camera faces the vehicle approach. Destination-country plate formats and recognition configuration are confirmed for the project.
NUMBER PLATE RECOGNITION

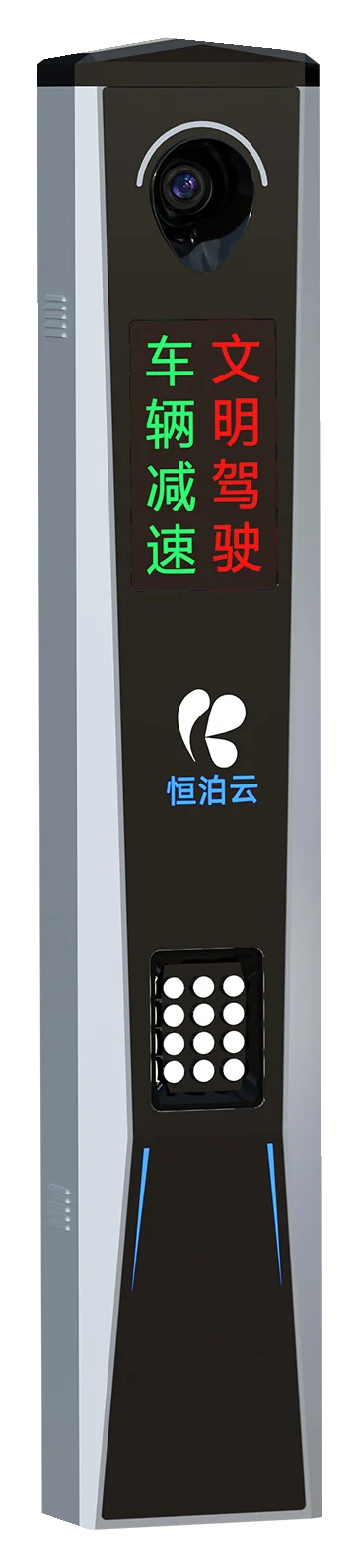

CP-15 Borui ANPR Terminal
A silver-and-black terminal combining number plate recognition, a driver-facing LED display and supplementary lighting in one cabinet.
- Camera
- 5 MP
- Display
- LED
RECOGNITION AT THE APPROACH
See the plate. Inform the driver. Control the lane.
Choose the terminal around the vehicle approach and the required driver information. Camera alignment, the selected display and the connected barrier each have a different role.
Camera position
Face the camera towards approaching number plates, with a clear view and a dedicated mounting position beside the lane.
Driver information
Choose the display version and agree the message, language and voice configuration. The selected display stays with your enquiry.
Connected entrance
Confirm the plate formats, access rules, network, vehicle detection and barrier interface for the destination site.
CAMERA, DISPLAY & CABINET
Driver messages, camera and light together.
The silver-and-black CP-15 places the camera above an LED message panel, with supplementary lighting below. Explore the original close-ups and the product film.

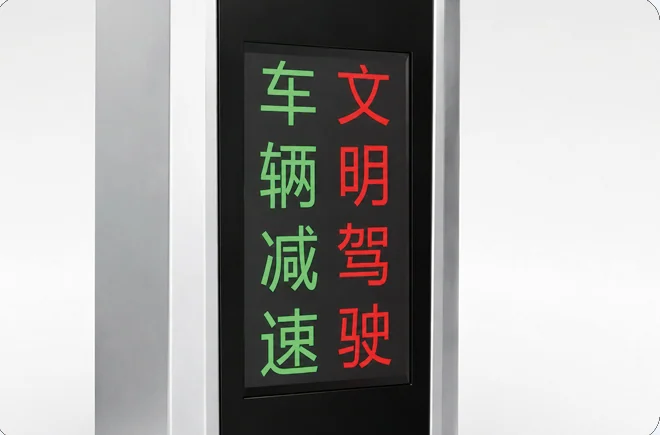

LED message display
The front LED display presents messages to approaching drivers.
Display messages and announcements can be customised in English or your required language. The original catalogue image shows an example; confirm the language and character support with your quotation.

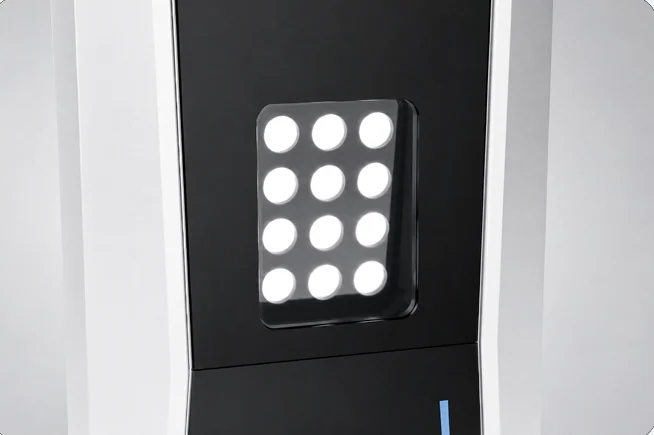

Supplementary LED illumination
The light array supports the camera view in lower light.
Voice announcements
A built-in speaker provides voice announcements. Language and announcement content are agreed with the configuration.
Display messages and announcements can be customised in English or your required language. The original catalogue image shows an example; confirm the language and character support with your quotation.

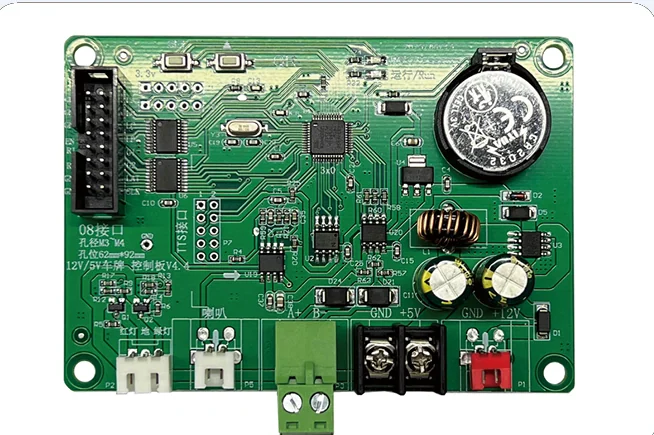

Connections and integration
TCP/IP communication is listed for this terminal. Confirm barrier control, software and third-party interfaces for the project.
ENTRANCE PLANNING
Recognition is one part of the entrance.
Pair the terminal with a barrier gate to control the vehicle lane. The final layout also considers vehicle detection, access rules, power and network connections.
Build a complete systemPRODUCT FILM
CP-15 in detail.
CP-15 product detail film
MODEL SPECIFICATIONS
CP-15 specifications
| Parameter | Specification |
|---|---|
| Model | CP-15 |
| Camera | 5 MP |
| Display | LED |
| Communication | TCP/IP |
| Protection rating | IP54 |
| Input supply | AC 220 V ±10%, 50/60 Hz |
| Voice announcements | Supported; adjustable volume |
| Mounting | Ground-fixed pedestal |
| Illumination power | 12 W |
| Operating temperature | −20 to +60 °C |
The quotation confirms the supplied equipment and configuration.
PRODUCT QUESTIONS
Before you specify.
Is the CP-15 display LCD or LED?
The current CP-15 configuration on this page uses an LED message display. Its product artwork and operation film show that version.
What helps the camera in lower light?
A dedicated LED array provides supplementary illumination. The model specification lists a 5 MP camera and 12 W illumination.
Can announcements be configured?
Voice announcements are supported with adjustable volume. Confirm the required language, announcement content and display messages as part of the system configuration.
What is needed before fixing the cabinet location?
Provide lane direction, the vehicle approach, available space and cable routes. The camera must face arriving number plates; final cabinet and fixing dimensions are confirmed with the supplied configuration.
