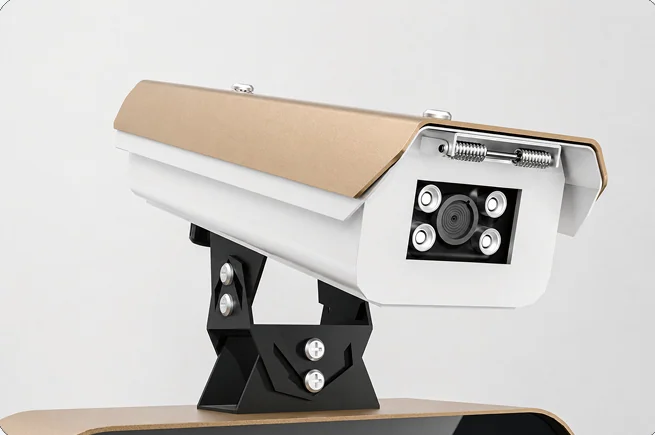

External 5 MP camera
The camera is mounted above the display cabinet and faces the approaching vehicle. Plate formats and recognition configuration are confirmed for the destination country.
NUMBER PLATE RECOGNITION
CP-02 NF5 ANPR Terminal
A gold pedestal terminal with an external camera, a four-line LED display and supplementary illumination. Available individually or paired with a barrier gate for a vehicle entrance.
- Camera
- 5 MP
- Display
- Four-line, two-column LED
RECOGNITION AT THE APPROACH
See the plate. Inform the driver. Control the lane.
Choose the terminal around the vehicle approach and the required driver information. Camera alignment, the selected display and the connected barrier each have a different role.
Camera position
Face the camera towards approaching number plates, with a clear view and a dedicated mounting position beside the lane.
Driver information
Choose the display version and agree the message, language and voice configuration. The selected display stays with your enquiry.
Connected entrance
Confirm the plate formats, access rules, network, vehicle detection and barrier interface for the destination site.
CAMERA, DISPLAY & CABINET
An external camera and a gold message pedestal.
The NF5 cabinet has rounded sides, a four-line LED display and a dedicated light array. The original close-ups show its camera, display, speaker, cooling and connection details.

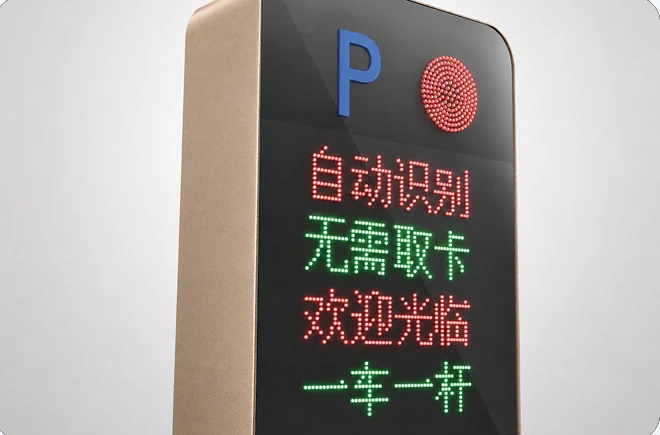

Four-line LED display
A four-line, two-column LED display provides messages to the approaching driver.
Display messages and announcements can be customised in English or your required language. The original catalogue image shows an example; confirm the language and character support with your quotation.

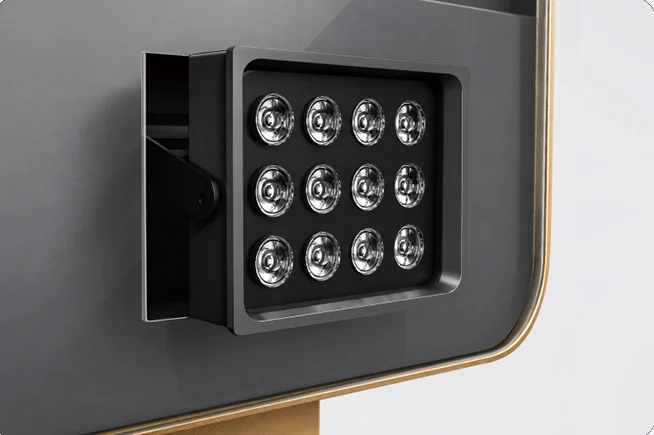

Supplementary LED illumination
The model-specific catalogue lists 12 W LED illumination with light-sensitive control.

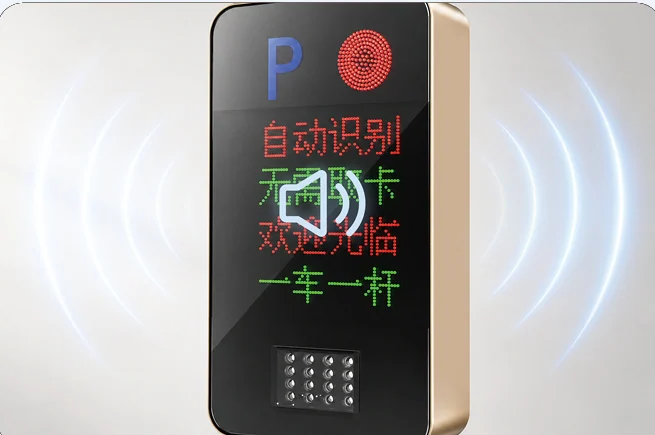

Voice announcements
An integrated speaker supports voice announcements with adjustable volume. Announcement content is confirmed with the equipment configuration.
Display messages and announcements can be customised in English or your required language. The original catalogue image shows an example; confirm the language and character support with your quotation.

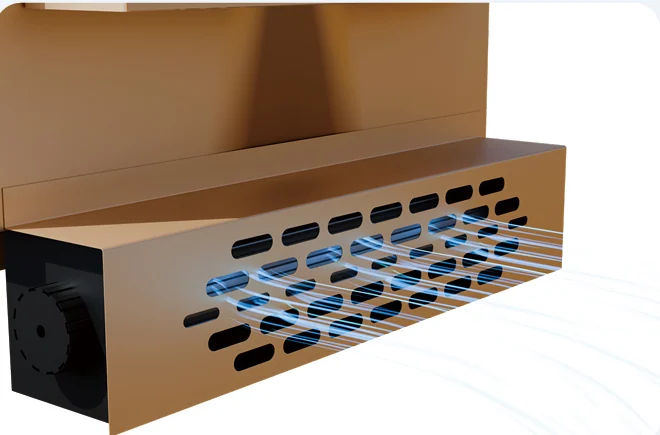

Cabinet cooling
The catalogue close-up shows the cooling arrangement for this gold cabinet.
Connections and integration
TCP/IP is listed for this model. Confirm barrier control, software and any third-party integration for the project.
ENTRANCE PLANNING
Place the camera around the approach.
Share the destination country, plate formats, vehicle direction and lane layout. Choose the terminal on its own or pair it with a barrier; final integration and detection requirements are confirmed with the quotation.

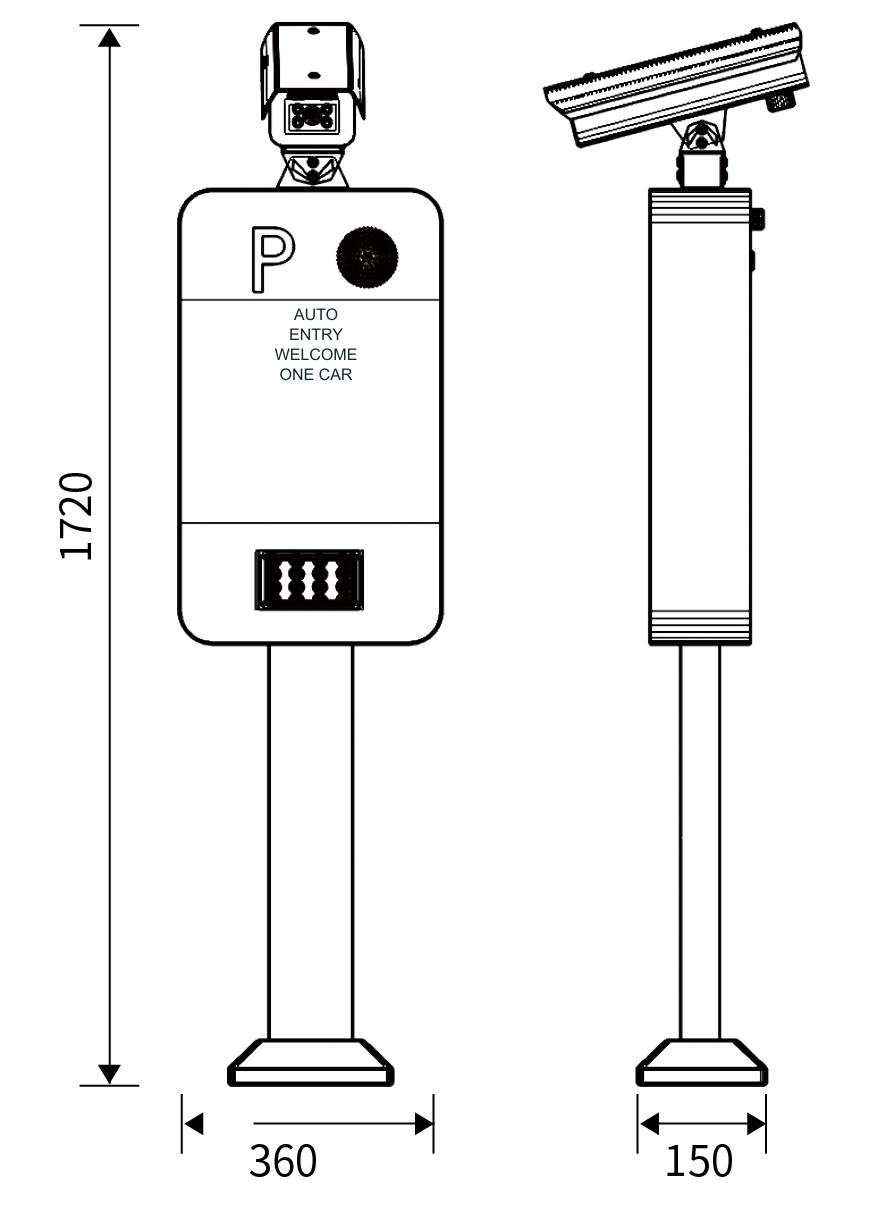

Build a complete systemDIMENSIONS & SITE SPACE
Plan the space around the equipment.
Equipment dimensions describe the product. Foundation and fixing details are confirmed for the installation.
- Height
- 1,720 mm
- Width
- 360 mm
- Depth
- 150 mm
MODEL SPECIFICATIONS
CP-02 specifications
| Parameter | Specification |
|---|---|
| Model | CP-02 |
| Camera | 5 MP |
| Display | Four-line, two-column LED |
| Illumination power | 12 W |
| Voice announcements | Supported; adjustable volume |
| Input supply | AC 220 V ±10% |
| Communication | TCP/IP |
| Mounting | Ground-fixed pedestal |
The quotation confirms the supplied equipment and configuration.
PRODUCT QUESTIONS
Before you specify.
Are NF5 and CP-02 different products?
NF5 is the product name shown with the gold terminal; CP-02 is the model identifier used for this configuration.
What is the size of the terminal?
The source drawing and table give 1,720 mm height, 360 mm width and 150 mm depth. These are product dimensions; foundation and fixing details are confirmed for the installation.
What information can the display present?
The terminal has a four-line, two-column LED message display. The actual messages and language are set with the parking or access-control configuration.
What should be specified with a CP-02 barrier system?
Include the barrier model and arm, approach direction, number-plate formats, vehicle detection and software requirements. CP-02 can also be requested as an individual terminal.
