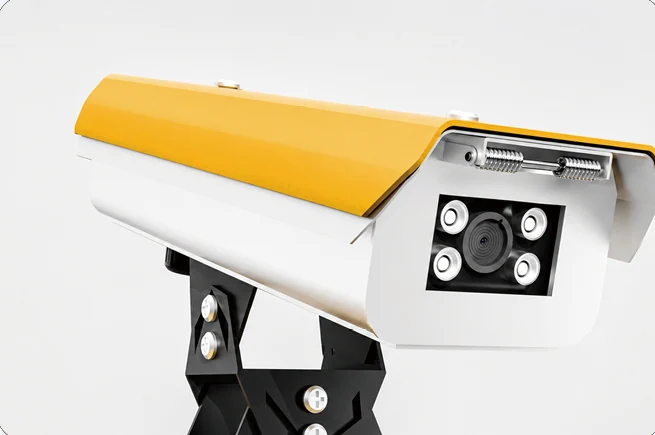

5 MP recognition camera
The camera faces the vehicle approach. Destination-country plate formats and recognition configuration are confirmed for the project.
NUMBER PLATE RECOGNITION

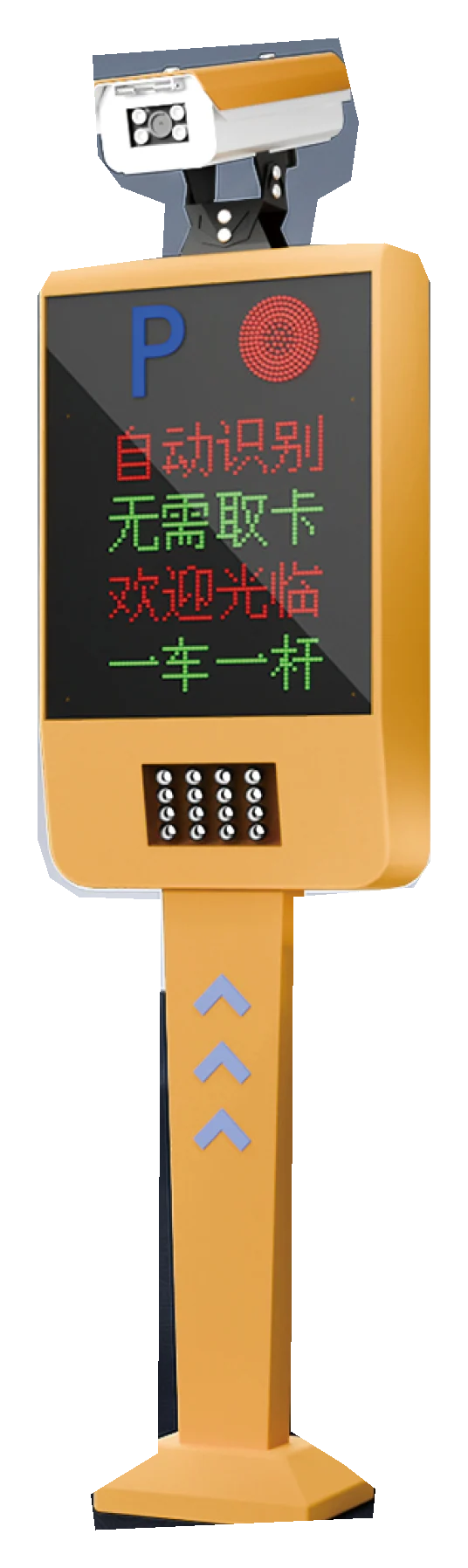

CP-01 ANPR Terminal
A yellow pedestal terminal with a separately mounted camera, four-line LED display and supplementary lighting for vehicle entrances.
- Camera
- 5 MP
- Display
- Four-line, two-column LED
RECOGNITION AT THE APPROACH
See the plate. Inform the driver. Control the lane.
Choose the terminal around the vehicle approach and the required driver information. Camera alignment, the selected display and the connected barrier each have a different role.
Camera position
Face the camera towards approaching number plates, with a clear view and a dedicated mounting position beside the lane.
Driver information
Choose the display version and agree the message, language and voice configuration. The selected display stays with your enquiry.
Connected entrance
Confirm the plate formats, access rules, network, vehicle detection and barrier interface for the destination site.
CAMERA, DISPLAY & CABINET
Position the camera above the message board.
CP-01 uses an external camera on a yellow pedestal cabinet. The camera, LED message board and light array are distinct parts of the driver-facing assembly.

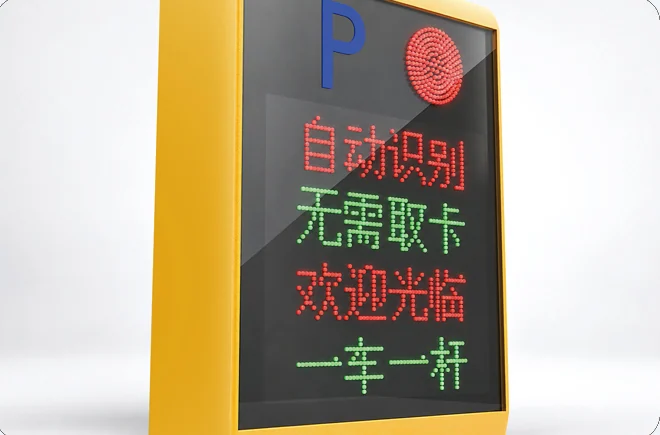

LED message display
The front LED display presents messages to approaching drivers.
Display messages and announcements can be customised in English or your required language. The original catalogue image shows an example; confirm the language and character support with your quotation.

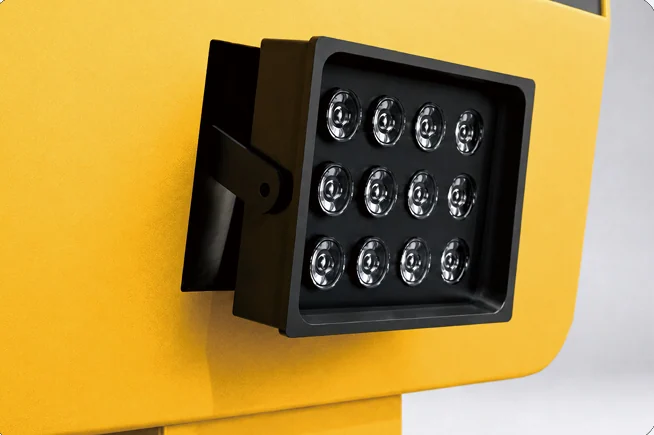

Supplementary LED illumination
The light array supports the camera view in lower light.

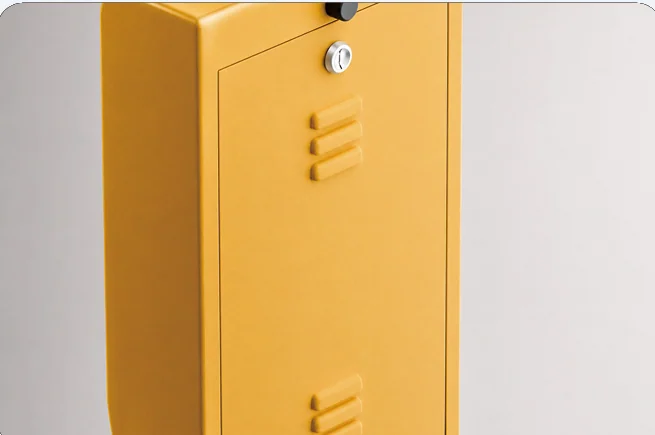

Rear cabinet ventilation
The rear cabinet includes ventilation openings.

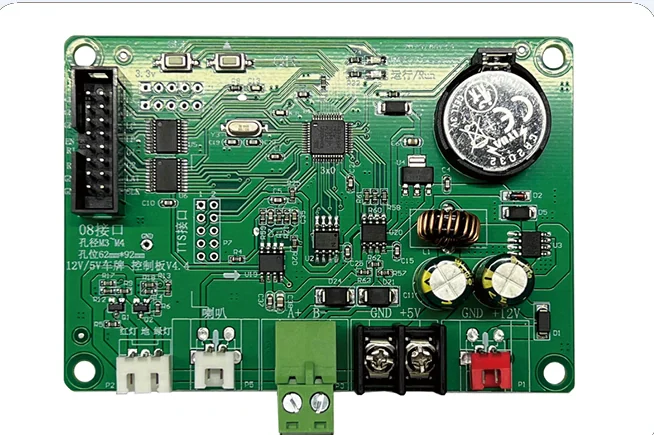

Connections and integration
TCP/IP communication is listed for this terminal. Confirm barrier control, software and third-party interfaces for the project.
ENTRANCE PLANNING
Recognition is one part of the entrance.
Pair the terminal with a barrier gate to control the vehicle lane. The final layout also considers vehicle detection, access rules, power and network connections.
Build a complete systemDIMENSIONS & SITE SPACE
Plan the space around the equipment.
Equipment dimensions describe the product. Foundation and fixing details are confirmed for the installation.
- Height
- 1,720 mm
- Width
- 360 mm
MODEL SPECIFICATIONS
CP-01 specifications
| Parameter | Specification |
|---|---|
| Model | CP-01 |
| Camera | 5 MP |
| Display | Four-line, two-column LED |
| Communication | TCP/IP |
| Illumination power | 12 W |
| Voice announcements | Supported; adjustable volume |
The quotation confirms the supplied equipment and configuration.
PRODUCT QUESTIONS
Before you specify.
How is CP-01 different from an integrated-head terminal?
Its camera is separately mounted above the yellow display cabinet. This makes the camera position visible and distinct from the four-line, two-column LED message board.
Which dimensions can be used for initial planning?
The source drawing and table agree on a 1,720 mm height and 360 mm width. Confirm the final depth, base and fixing arrangement before preparing the site.
Does CP-01 provide light and voice prompts?
The model lists 12 W supplementary LED illumination and adjustable-volume voice announcements. Confirm the required display and announcement language with the configuration.
Can it connect to an existing parking system?
TCP/IP is listed for CP-01. Share the platform and interface requirements so the software, barrier connection and recognition configuration can be checked.
YOUR PROJECT
Request a CP-01 quotation.
Share the equipment quantity, destination country and site requirements.
